Revel M106 Review

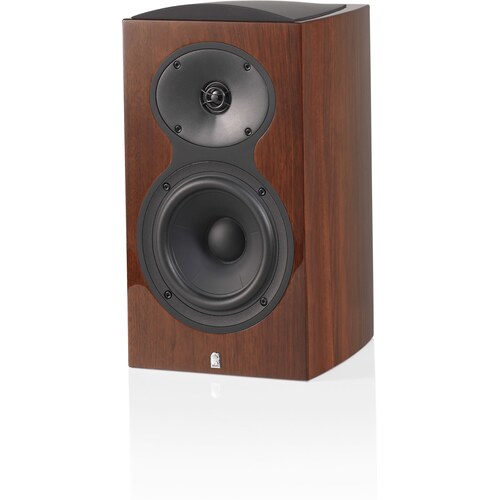

Revel Performa3 M106

Main Features

  • 1" Hard-Dome with Acoustic Lens Waveguide Tweeter
  • 6.5" Aluminum Woofer
  • 59Hz- 20kHz Frequency Response
  • 87 dB Sensitivity
  • Impedance: 8ohms
  • Power Range: 50-150watts
  • Weight:18.50 lbs / 8.41 kg
  • Dimensions(HxWxD): 15-1/16"x8-1/4"x11" / 383.0 x 210.0 x 280.0mm
CHECK PRICE

Compare To

x
Add a Speaker for comparison
Revel M106 Review
Revel M106 Revel M106
See at AMAZON

Revel Performa3 M106 is a 2-way Passive Bass Reflex Bookshelf speaker by Revel. It features a 1" Hard-Dome with Acoustic Lens Waveguide Tweeter and 1 x 6.5" Aluminum Woofer. The speaker has a frequency range of 59Hz- 20kHz and a sensitivity of 87 dB. Revel M106 has an MSRP of 2200$ per pair but can often be found around 1540$ per pair.

Room Size Suitability

The size of the room where you plan to use the Revel M106 is a crucial factor in your decision. We have assessed its suitability for various room sizes based on its dimensions and maximum power output:

Listening Environment* Suitability
Near-fieldPoor
Small RoomAverage
Mid-size RoomGood
Large RoomAverage
Very Large RoomPoor

(* Approximate Room sizes: Small < 100sq. ft / 9 m2, Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: > 400 sq. ft / 36 m2. Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual listening experience changes depending on floor height, room shape, surface materials, listening position, speaker locations, etc.)

Revel's Performa3 Series of Loudspeakers

M106 is a member of Revel's Performa3 series of Passive speakers. Below you can see the main specs of these speakers.

Revel Performa3 Series Speakers
Model Frequency SensitivityImpedance Woofer
Revel M106
59-20k Hz 87 dB8Ω 1 x 6.5"
Revel M105
Compare
60-20k Hz 86 dB8Ω 1 x 5.25"
Revel Performa3 F206
Compare
42-20k Hz 88 dB8Ω 2 x 6.5"
Revel Performa3 F208
Compare
31-20k Hz 88.5 dB8Ω 2 x 8"
Revel Performa3 C208
Compare
50-20k Hz 89 dB8Ω 2 x 8"
Revel Performa3 C205
Compare
80-20k Hz 89 dB8Ω 2 x 5.25"
Revel Performa3 Series Speakers
Revel Performa3 Series Speakers


**This post contains affiliate links, and I will be compensated if you make a purchase after clicking through my links. As an Amazon Associate I earn from qualifying purchases.

Frequency Response of the Revel M106 Speaker

Revel M106 has a Frequency response range of 59Hz- 20kHz at ±3dB and Power Range of 50-150 watts. With a minimum frequency of 59 Hz, M106 delivers moderate bass depth so depending on your use case, you might want to consider adding a subwoofer to your system.

To focus on the subwoofers that are in a similar price range with Revel M106, check out the Powered Subwoofers under $3000. Alternatively, find the Full list of Powered Subwoofers regardless of the price.
Here we have a comparison of how M106's Low and High frequency values compare with the average, max and min Low and High frequency values in its class.
Low Frequency
Bookshelf Speakers
Revel M106
Min
Average
Max
High Frequency
Bookshelf Speakers
Revel M106
Min
Average
Max

Among the speakers in our database with a max MSRP price of 3000$ (Pair), these are the 5 Passive Bookshelf speakers that have the deeper bass levels than the Revel M106's 59Hz:

  • KEF R3 with Low Frequency of 52 Hz (Compare w/ M106)
  • B&W 607 S2 with Low Frequency of 52 Hz (Compare w/ M106)
  • B&W 606 S2 with Low Frequency of 52 Hz (Compare w/ M106)
  • B&W 606 S3 with Low Frequency of 52 Hz (Compare w/ M106)
  • B&W 607 S3 with Low Frequency of 52 Hz (Compare w/ M106)

Crossover frequency of the Revel M106?

The Crossover frequency of the M106 is set to 2300Hz. This is the threshold frequency where the higher frequency signals over this level are sent to the tweeter and the lower-frequency signals are sent to the woofer by the crossover component.

Impedance and Sensitivity

Revel M106's nominal impedance level is 8 ohms and has a sensitivity of 87 dB.

Sensitivity
Bookshelf Speakers
Revel M106
Min
Average
Max

8 Ohms is pretty much the standard nominal impedance amongst stereo speakers and amplifiers so Revel Performa3 M106 is not considered a difficult to drive speaker from nominal Impedance perspective.

Sensitivity

With a sensitivity level of only 87 dB, Revel Performa3 M106 is a difficult to drive speaker from Sensitivity perspective, make sure to choose an amplifier with a high output if you like listening to your music at high volume levels. You may especially have a hard time using Tube amplifiers which are traditionally very low power compared to Class A/B or Class D amps.

Check the amplifiers that are in a similar price range to the Revel M106:

  • Integrated Amps under 2000 USD
  • Integrated Amps under 3000 USD
  • Integrated Amps under 5000 USD
  • All Integrated Amplifiers

Input Type

M106 features Binding post type connectors. Bi-amping and Bi-wiring are not possible.
Revel M106 Back View
Revel M106 Back View

Revel M106 External Dimensions and Weight

Revel M106 has external dimensions of (Height x Width x Depth) 15-1/16 x 8-1/4 x 11inch (383.0 x 210.0 x 280.0mm ).

Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited. The base area of Revel M106 is approximately 588.0cm2 / 91.1inch2.

To get a better perspective on the real life size of Revel M106, let's compare it with a standard size Compact Disc which has a diameter of 4.7inch (120mm).

Revel M106 Real Life Body Size Comparison
Revel M106 Speaker Size Compared to a Compact Disc

Here we place the Revel M106 virtually next to a standard width amplifier and turntable on a BDI Octave Media Cabinet to get a better idea about the size.

Revel M106 placed next to an amplifier and turntable
Revel M106 Speaker next to an amplifier and turntable

Weight

The Revel M106 weighs 8.41kg / 18.5lbs per piece. Here is a comparison of how M106's weight compares with the average, max and min weights in its class.

Weight
All Bookshelf Speakers
Revel M106
Min
Average
Max
Weight
Bookshelf Speakers under $3000
Revel M106
Min
Average
Max
Revel M106  on a Stand
Revel M106 on a Stand

Cabinet type and Materials

Revel M106 has a Bass Reflex type cabinet and a Wood/Lacquer finish. Bass Reflex type loudspeakers (aka Ported, Vented or Reflex Port) have enclosures that uses a port, hole or vent cut into the cabinet. Ported designs are generally more efficient than the Sealed designs.

Port Position

Revel M106 is a rear-firing port speaker so you have to make sure you leave enough space between the back of the speaker and wall or bookshelf so that it has room to breathe. M106 comes with Foam port plug so if you don't have any choice but place the speakers too close to the walls or other surfaces, you can use these plugs in order to avoid boomy or too much bass.

Available colors

Revel M106 is available in Gloss Walnut and Piano Black.

Wall Mounting

M106 doesn't sport any built-in mounting bracket, so you need an external structure to mount it on walls.

Does the Revel M106 come with a Grille?

M106 comes with magnetic grilles. The purpose of the grille is to protect the delicate driver elements from external impacts while still allowing the sound to pass as clearly as possible. Since the included grille of the M106 is magnetic type, it is very easy to put it on and off.

Revel M106  with Grille
Revel M106 with Grille

What's in the Box of Revel M106?

Here are the items that are included inside the box of M106:
  • Bookshelf loudspeaker
  • Grille
  • Foam port plug
  • Owners Manual
  • Recommended Accessories

    Here is a list of accessories that we think you may need for the Revel Performa3 M106.

    • Speaker Cable and Connectors
      • Speaker Cables with Banana Plugs: If you know the lenght of the cable you need, this is the easier option to connect your speakers with your amp.
      • Speaker Cables without Connectors: If you are not sure about the lenght or need longer than standard cables with plugs, choose this option.
      • Banana Connectors and Plugs: If you chose the cables without connectors option or already have some cable around, pick the banana plugs separately.
    • Vibration Isolators: IsoAcoustics isolators more affordable options too.
    • Acoustic Panels and Treatments: Your room is as important as your stereo equipment so acoustic treatments goes a long way in improving the overall performance.
    • Speaker Stands: Stands bring your bookshelf speakers to ideal height (rule of thumb is to have the tweeter level with your ear in your listening position), helps stability and acoustical isolation.

    User's Manual

    For more information about how to setup, use and maintain the Revel Performa3 M106, use the direct link below to download the official manual document:
    Download User Manual for Revel M106

    Official Brochure

    Here is a link to download the official brochure for the Revel Performa3 M106 speaker:
    Official Brochure for Revel M106

    Official Product Page

    Official manufacturer's product page for the Revel Performa3 M106 speaker can be found below:
    Official Product Page for Revel M106

    Warranty

    5 Years of parts warranty and 5 Years of labor warranty is generally provided by the manufacturer.

    Revel Performa3 M106 Alternatives in Passive Bookshelf Speakers
    Model Type Sensitivity Impedance Frequency
    Revel M105
    Compare
    2-way 86 dB 8 ohms 60Hz- 20kHz
    Revel M16
    Compare
    2-way 86 dB 6 ohms 55- Hz
    KEF LS50
    Compare
    2-way 85 dB 8 ohms 79-28k Hz
    Revel M126Be
    Compare
    2-way 86 dB 8 ohms 54-44k Hz
    Focal Aria 906
    Compare
    2-way 89.5 dB 8 ohms 55-28k Hz
    KEF R3
    Compare
    3-way 87 dB 8 ohms 52-28k Hz
    B&W 706 S2
    Compare
    2-way 88 dB 8 ohms 50-28k Hz
    Klipsch RP-600M
    Compare
    2-way 96 dB 8 ohms 45-25k Hz
    Frequently Asked Questions about Revel Performa3 M106
    What is the External Dimensions of Revel Performa3 M106
    What is the Speaker Sensitivity of Revel Performa3 M106
    is the Revel Performa3 M106 an easy to drive speaker?

    Revel M106 Detailed Specifications

    General
    BrandRevel
    Full Model NameRevel Performa3 M106
    Speaker Type2-way Bookshelf
    Power Range50-150 watts
    Sensitivity87 dB
    Impedance8 ohms
    Frequency Response59Hz- 20kHz
    DRIVERS
    Woofer Size6.5-inch
    Woofer CompositionAluminum
    Woofer SurroundRubber
    Tweeter Size1-inch
    Tweeter TypeHard-Dome with Acoustic Lens Waveguide
    Crossover freq2300Hz
    Port Positionrear

    CONNECTIONS
    Connector TypeBinding post
    Biamp InputsNo
    Port Positionrear
    PHYSICAL SPECS
    Height383.0mm ( 15-1/16-inch)
    Width210.0mm ( 8-1/4-inch)
    Depth280.0mm ( 11-inch)
    Height383.0mm ( 15-1/16-inch)
    Weight8.41kg ( 18.50 lbs)
    EnclosureBass Reflex
    FinishWood/Lacquer
    Available ColorsGloss Walnut,Piano Black
    Mounting BracketNo
    Recommended Stand Height24-25
    GrilleYes
    Moisture ResistanceNo
    OTHER
    Handheld RemoteNo
    Parts Warranty5 Years
    Labor Warranty5 Years
