Revel Concerta2 M16 is a 2-way Passive Bass Reflex Bookshelf speaker by Revel. It was released in 2015. It features a 1" Dome Tweeter and 1 x 6.5" Anodized aluminum Woofer. The speaker has a frequency range of 55- Hz and a sensitivity of 86 dB. Revel M16 has an MSRP of 990$ per pair but can often be found around 694$ per pair.
Room Size Suitability
The size of the room where you plan to use the Revel M16 is a crucial factor in your decision. We have assessed its suitability for various room sizes based on its dimensions and maximum power output:
| Listening Environment* |
Suitability |
| Near-field | Poor |
| Small Room | Average |
| Mid-size Room | Good |
| Large Room | Average |
| Very Large Room | Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2, Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: > 400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual listening experience changes depending on floor height, room shape, surface materials, listening position, speaker locations, etc.)
Revel's Concerta Series of Loudspeakers
M16 is a member of Revel's Concerta series of Passive speakers. The Concerta2 range is Revel's affordable line, bringing the brand's research-driven sound to a lower price. Below you can see the main specs of these speakers.
See all 5 Revel Concerta models compared »
Revel Concerta Series Speakers
Frequency Response of the Revel M16 Speaker
Revel M16 has a Frequency response range of 55- Hz and Power Range of 50-120 watts. With a minimum frequency of 55 Hz, M16 delivers moderate bass depth so depending on your use case, you might want to consider adding a subwoofer to your system.
Here we have a comparison of how M16's Low frequency value compares with the average, max and min Low frequency values in its class.
Low Frequency
Bookshelf Speakers
Thinking about a subwoofer for the Revel M16?
Among the speakers in our database with a max MSRP price of 1000$ (Pair), these are the 3 Passive Bookshelf speakers that have the deeper bass levels than the Revel M16's 55Hz:
Impedance and Sensitivity
Revel M16's nominal impedance level is
6 ohms and has a sensitivity of
86 dB.
Sensitivity
Bookshelf Speakers
Nominal Impedance of the 6 Ohms makes the Revel Concerta2 M16 a relatively difficult to drive speaker compared to more frequently found 8 ohms speakers from nominal Impedance perspective.
Sensitivity
With a sensitivity level of only 86 dB, Revel Concerta2 M16 is a difficult to drive speaker from Sensitivity perspective, make sure to choose an amplifier with a high output if you like listening to your music at high volume levels. You may especially have a hard time using Tube amplifiers which are traditionally very low power compared to Class A/B or Class D amps. Work out how loud the Revel M16 plays in your room →
Running more than one pair from a single amplifier? Check the load it would present →
What amplifier does the Revel M16 need?
At normal listening levels in a medium room, about
25–120 W
per channel into 6 ohms.
Set your own conditions and we will rank every amplifier we cover.
Prefer to browse? Integrated amplifiers under $1,000, or every amplifier we cover.
Input Type
M16 features 5-way post type connectors. Bi-amping and Bi-wiring are not possible.
Work out what gauge speaker cable this run needs →
Revel M16 External Dimensions and Weight
Revel M16 has external dimensions of (Height x Width x Depth) 14-7/8 x 8-11/16 x 11inch (378.0 x 221.0 x 280.0mm ).
Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base area of Revel M16 is approximately 618.8cm2 / 95.9inch2.

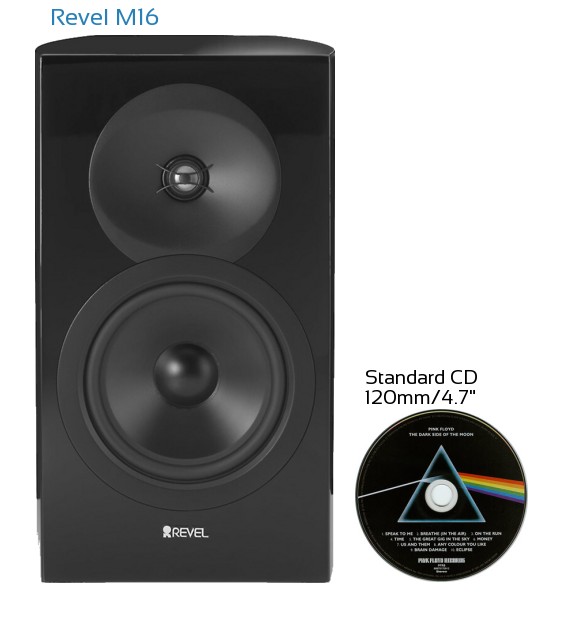

To get a better perspective on the real life size of Revel M16, let's compare it with a standard size Compact Disc which has a diameter of 4.7inch (120mm).
Revel M16 Speaker Size Compared to a Compact Disc

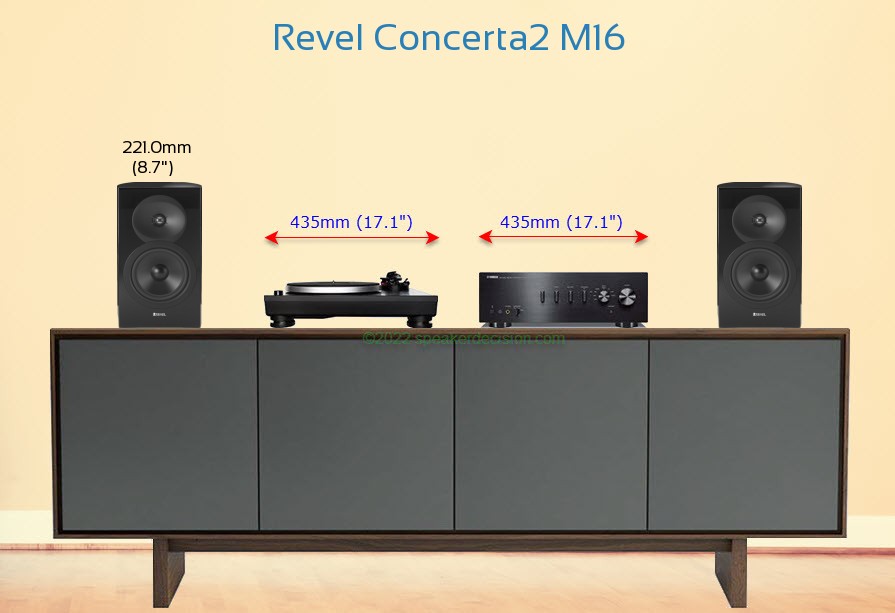

Here we place the Revel M16 virtually next to a standard width amplifier and turntable on a BDI Octave Media Cabinet to get a better idea about the size.
Revel M16 Speaker next to an amplifier and turntable
Find speakers that fit your shelf or alcove → · Work out where they should sit in the room →
WeightThe Revel M16 weighs 7.27kg / 16lbs per piece. Here is a comparison of how M16's weight compares with the average, max and min weights in its class.
Weight
All Bookshelf Speakers
Weight
Bookshelf Speakers under $1000
Cabinet type and Materials
Revel M16 has a
Bass Reflex type cabinet and a Wood/Lacquer finish. Bass Reflex type loudspeakers (aka Ported, Vented or Reflex Port) have enclosures that uses a port, hole or vent cut into the cabinet. Ported designs are generally more efficient than the Sealed designs.
Port Position
Revel M16 is a rear-firing port speaker so you have to make sure you leave enough space between the back of the speaker and wall or bookshelf so that it has room to breathe.
Available colors
Revel M16 is available in Gloss Black and Gloss White.
Wall Mounting
M16 doesn't sport any built-in mounting bracket, so you need an external structure to mount it on walls.
Does the Revel M16 come with a Grille?
M16 comes with magnetic grilles. The purpose of the grille is to protect the delicate driver elements from external impacts while still allowing the sound to pass as clearly as possible. Since the included grille of the M16 is magnetic type, it is very easy to put it on and off.
What's in the Box of Revel M16?
Here are the items that are included inside the box of M16:
- Bookshelf loudspeaker
- Grille
- Owners Manual
Recommended Accessories
Here is a list of accessories that we think you may need for the Revel Concerta2 M16.
- Speaker Cable and Connectors
- Vibration Isolators: IsoAcoustics isolators are our favorite isolators but you may find more affordable options too.
- Acoustic Panels and Treatments: Your room is as important as your stereo equipment so acoustic treatments goes a long way in improving the overall performance.
- Speaker Stands: Stands bring your bookshelf speakers to ideal height (rule of thumb is to have the tweeter level with your ear in your listening position), helps stability and acoustical isolation.
Warranty
5 Years of parts warranty and 5 Years of labor warranty is generally provided by the manufacturer.
