In this review, we will be comparing M16 and Aria 906, two Passive Bookshelf speakers from Revel and Focal. Let's have a brief look at the main features
of Revel M16 and Focal Aria 906 first before getting into our more
detailed comparison.
What size room are the Revel M16 and Focal Aria 906 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision factor. Here we have compared their suitability to various sizes of environments considering their size and max power parameters:
In the following sections, we will get into more detail in order to better understand how the Revel M16 and Focal Aria 906 compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both M16 and Aria 906 are 2-way speakers.
| Driver |
Revel M16 |
Focal Aria 906 |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
1 x 6.5-inch
|
1 x 6.5-inch
|
M16 features a 1" aluminum Dome Tweeter and 1 x 6.5" Anodized aluminum Woofer . On the other hand, the Aria 906 features a 1" TNF aluminum/magnesium Inverted Hard Dome Tweeter and 1 x 6.5" Flax Woofer with a Crossover frequency at 2800Hz.
Frequency Response
M16 has a frequency range of 55- Hz whereas Aria 906 has a frequency range of 55-28k Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
High Frequency
Bookshelf Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
M16 is a 6 ohms speaker compared to the Aria 906 which has a nominal impedance of 8 ohms.
These two speakers also have different sensitivity levels. M16 sensitivity is rated at 86 dB and the Aria 906's is rated at 89.5 dB. This 4 dB difference makes the Focal Aria 906 a more sensitive speaker compared to Revel M16, hence will play louder with the same amount of watts.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using an amplifier within this range ensures the nominal performance , inputting a power that is higher than the max wattage can result in a damaged speaker.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
M16 features Binding post type posts and Aria 906 has a Binding post type posts. None of these speakers feature bi-amping/bi-wiring.
Focal Aria 906's Binding post terminals
Cabinet Type and Port Position
Both M16 and Aria 906 have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.
Physical Specs

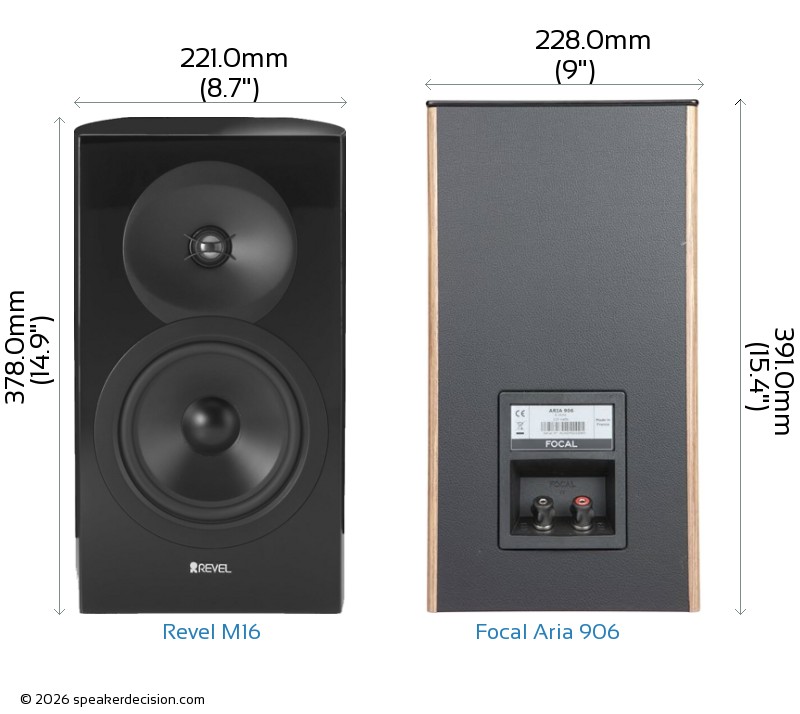

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Revel M16's and Focal Aria 906's external dimensions. Revel M16 has external dimensions of 378.0 x 221.0 x 280.0mm ( 14-7/8 x 8-11/16 x 11inch) whereas Focal Aria 906 has external dimensions of 391.0 x 228.0 x 288.0mm ( 15-3/8 x 8-15/16 x 11-5/16inch) .
Focal Aria 906 is clearly the larger of the two speakers. Its body is 7mm wider, 13mm taller and 8mm deeper than Revel M16.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Revel M16 is approximately 618.8cm2 / 95.9inch2 and base area of the Focal Aria 906 is approximately 656.6cm2 / 101.8inch2. The M16 requires 6% less surface area than the Aria 906 which gives it a small advantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The Revel M16 weighs 7.27kg / 16lbs and the Focal Aria 906 weighs 8.64kg / 19lbs. This makes the Aria 906 19% heavier than the M16.
Here is a comparison of how M16 and Aria 906's weights compare with the average, max and min weights in Passive Bookshelf class.
Weight
All Bookshelf Speakers
What's in the Box of Revel M16?
Here are the items that are included inside the box of M16:
Bookshelf loudspeakerGrilleOwners Manual
What's in the Box of Focal Aria 906?
Here are the items that come with the Aria 906:
2 Bookshelf loudspeakers 2 Cloth grilles User manual
 Height |
378mm
vs
391mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
618cm2 (221x280mm)
vs
656cm2 (228x288mm)
|
Takes less floor space |
 Price per pair* |
990USD
vs
2198USD
|
costs less (*prices may change depending on the seller, location and time) |
 Sensitivity |
90 dB
vs
86 dB
|
Play louder with same amount of amplification power |
 Nominal Impedance |
8 ohms
vs
6 ohms
|
Less selective with amplifiers |
 High Frequency Response |
28k Hz
vs
20k Hz
|
Generates higher frequency |
| General |
Revel Concerta2 M16 |
Focal Aria 906 |
| Brand |
Revel |
Focal |
| Speaker Type |
Bookshelf speakers |
Bookshelf speakers |
| Power Range |
50-120 watts |
25-120 watts |
| Sensitivity |
86 dB |
89.5 dB |
| Impedance |
6 ohms |
8 ohms |
| Impedance |
n/a |
4.6 ohms |
| Frequency Response |
55- Hz |
55-28k Hz |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
6.5" |
6.5" |
| Woofer Composition |
Anodized aluminum |
Flax |
| Woofer Surround Material |
Rubber |
Rubber |
| Tweeter Size |
1" |
1" |
| Tweeter Type |
Dome |
Inverted Hard Dome |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Crossover Frequency |
n/a |
2800Hz |
| Firing Direction |
rear |
rear |
Physical Specs |
|
|
| Height |
378.0mm (14.9") |
391.0mm (15.4") |
| Width |
221.0mm (8.7") |
228.0mm (9") |
| Depth |
280.0mm (11") |
288.0mm (11.3") |
| Weight |
7.27kg (16lbs) |
8.64kg (19lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Finish |
Wood/Lacquer |
MDF/Glass/Leather |
| Available Colors |
Gloss Black,Gloss White |
Walnut, Black |
| Mounting Bracket |
No |
No |
| Recommended Stand Height |
24-28" |
24-28" |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
No |
No |
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
