In this review, we will be comparing two different types of speakers by Revel. Revel Concerta2 F35 is a Floor-standing speaker whereas the M16 is a Bookshelf speaker.
Let's have a brief look at the main features
of Revel Concerta2 F35 and Revel M16 first before getting into our more
detailed comparison.
| Key Specs | Revel Concerta2 F35 | Revel M16 |
|---|
| Brand | Revel
United States · founded 1996 | Revel
United States · founded 1996 |
|---|
| Design | 3-way | 2-way |
|---|
| Tweeter | 1" dome with with proprietary acoustic lens and waveguide | 1" Dome |
|---|
| Midrange | 5.25" | — |
|---|
| Woofer | 2 x 5.25" Anodized aluminum | 6.5" Anodized aluminum |
|---|
| Frequency response | 55- Hz | 55- Hz |
|---|
| Sensitivity | 90 dB | 86 dB |
|---|
| Impedance | 6 ohms | 6 ohms |
|---|
| Power range | 30-180 watts | 50-120 watts |
|---|
| Weight | 18.64kg / 41lbs | 7.27kg / 16lbs |
|---|
| Dimensions (H x W x D) | 40-3/8" x 8-1/2" x 12-5/16"
1026.0 x 216.0 x 313.0mm | 14-7/8" x 8-11/16" x 11"
378.0 x 221.0 x 280.0mm |
|---|
F35 and M16 are members of Revel's Concerta series of speakers. Below you can find the loudspeakers from this series.
Revel Concerta Series
History
What size room are the Revel Concerta2 F35 and Revel M16 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Revel Concerta2 F35 |
Revel M16 |
| Near-field |
Bad |
Poor |
| Small Room |
Poor |
Average |
| Mid-size Room |
Good |
Good |
| Large Room |
Good |
Average |
| Very Large Room |
Poor |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
Drivers
One of the fundamental differences between these two speakers is that F35 is a 3-way design whereas the M16 is a 2-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
Revel Concerta2 F35Revel M16
TweeterMidrangeWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
Revel Concerta2 F35 |
Revel M16 |
|
Driver Setup
|
3-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
1 x 5.25-inch |
- |
|
Woofer
|
2 x 5.25-inch
|
1 x 6.5-inch
|
F35 features a 1" aluminum dome with with proprietary acoustic lens and waveguide Tweeter, a 5.25" Midrange and 2 x 5.25" Anodized aluminum Woofer. On the other hand, the M16 features a 1" aluminum Dome Tweeter and 1 x 6.5" Anodized aluminum Woofer.
Frequency Response
F35 and M16 has exactly the same frequency range of 55- Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
F35 and M16 have the same Impedance of 6 ohms but where they differ is the sensitivity levels. F35 sensitivity is rated at 90 dB and the M16's is at 86 dB. This 4 dB difference makes the Revel Concerta2 F35 a more sensitive speaker compared to Revel M16, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
F35 can handle a max power of 180 watts RMS, whereas M16 has a max power handling value of 120 watts RMS, 60 watts less than the F35.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
Input Type and Bi-Amping / Bi-Wiring
F35 features 5-way post type posts and M16 has a 5-way post type posts. None of these speakers feature bi-amping/bi-wiring.
Cabinet Type and Port Position
Both F35 and M16 have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Revel Concerta2 F35's and Revel M16's external dimensions. Revel Concerta2 F35 has external dimensions of 1026.0 x 216.0 x 313.0mm (40-3/8 x 8-1/2 x 12-5/16inch) whereas Revel M16 has external dimensions of 378.0 x 221.0 x 280.0mm (14-7/8 x 8-11/16 x 11inch).
Revel M16 is 648mm shorter and 33mm less deeper than Revel Concerta2 F35 but it is also 5mm wider.

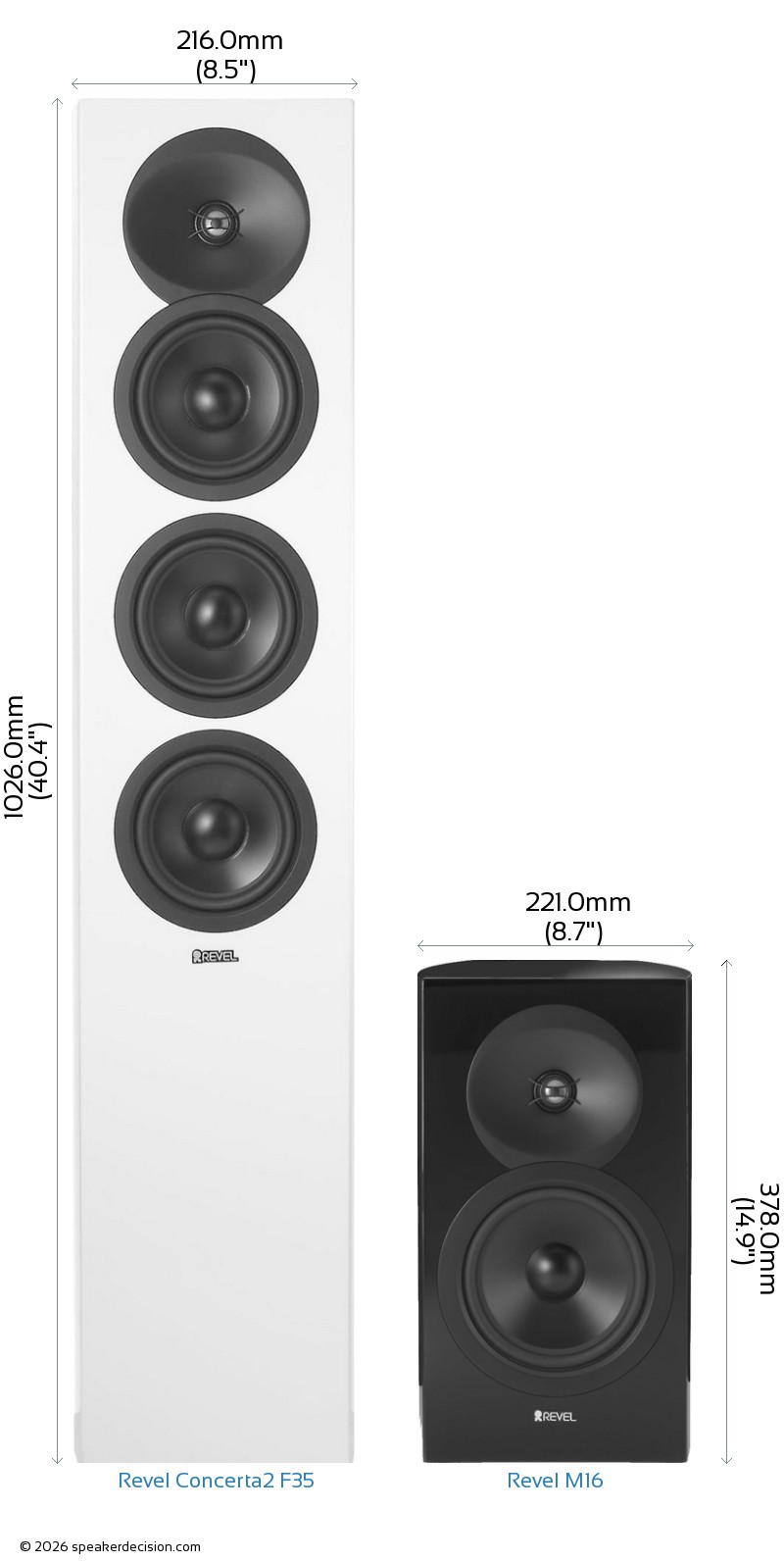

Below you can see the front view size comparison of Revel Concerta2 F35 and Revel M16 in scale.
Comparison image of Revel Concerta2 F35 and Revel M16 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Revel Concerta2 F35 is approximately 676.1cm2 / 104.8inch2 and base area of the Revel M16 is approximately 618.8cm2 / 95.9inch2. The F35 requires 9% more surface area than the M16 which gives it a small disadvantage on placement in tight spaces.
What's in the Box of Revel Concerta2 F35?
Here are the items that are included inside the box of F35:
- Floorstanding loudspeaker
- Grille
- 4 Spike feet
- Owners Manual
What's in the Box of Revel M16?
Here are the items that come with the M16:
- Bookshelf loudspeaker
- Grille
- Owners Manual
