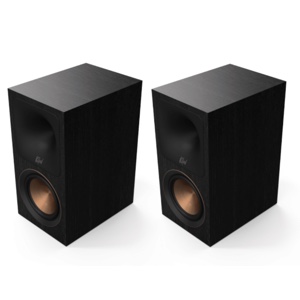

Klipsch Reference Premiere RP-5103M is a 2-way Passive Bass Reflex Bookshelf speaker by Klipsch. It is due in October 2026. It features a 1" Tractrix Horn Tweeter and 1 x 5.25" Cerametallic Woofer.
The small standmount: one 5.25 inch Cerametallic woofer and a 1 inch titanium LTS tweeter crossed at 1530 Hz, rear ported, 92 dB sensitive and rated 75 W continuous. Single binding posts, so no bi-wiring here.
The speaker has a frequency range of 50-25k Hz and a sensitivity of 92 dB. Klipsch RP-5103M has an MSRP of 550$ per pair.
Room Size Suitability
The size of the room where you plan to use the Klipsch RP-5103M is a crucial factor in your decision. We have assessed its suitability for various room sizes based on its dimensions and maximum power output:
| Listening Environment* |
Suitability |
| Near-field | Good |
| Small Room | Good |
| Mid-size Room | Average |
| Large Room | Poor |
| Very Large Room | No way |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2, Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: > 400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual listening experience changes depending on floor height, room shape, surface materials, listening position, speaker locations, etc.)
Klipsch replaced the older RP-500M II with this model. Follow the link to read our detailed comparison of these models:
Compare Klipsch RP-5103M vs Klipsch RP-500M II
Klipsch's Reference Premiere (RP) III Series of Loudspeakers
RP-5103M is a member of Klipsch's Reference Premiere (RP) III series of Passive speakers. Below you can see the main specs of these speakers.
See all 9 Klipsch Reference Premiere (RP) III models compared »
Klipsch Reference Premiere (RP) III Series Speakers
**This post contains affiliate links, and we will be compensated if you make a purchase after clicking through our links. As an Amazon Associate I earn from qualifying purchases.
Frequency Response of the Klipsch RP-5103M Speaker
Klipsch RP-5103M has a Frequency response range of 50-25k Hz and Power Range of up to 75 watts. With a minimum frequency of 50 Hz, RP-5103M delivers moderate bass depth so depending on your use case, you might want to consider adding a subwoofer to your system.
Here we have a comparison of how RP-5103M's Low frequency value compares with the average, max and min Low frequency values in its class.
Low Frequency
Bookshelf Speakers
Thinking about a subwoofer for the Klipsch RP-5103M?
Crossover frequency of the Klipsch RP-5103M?
The crossover frequency of the RP-5103M is set to 1530 Hz. This is the threshold frequency where the higher frequency signals over this level are sent to the tweeter and the lower-frequency signals are sent to the woofer by the crossover component.
Impedance and Sensitivity
Klipsch RP-5103M's nominal impedance level is
8 ohms but can go down to as low as
3.2 ohms, and has a sensitivity of
92 dB.
Sensitivity
Bookshelf Speakers
8 Ohms is pretty much the standard nominal impedance amongst stereo speakers and amplifiers so Klipsch Reference Premiere RP-5103M is not considered a difficult to drive speaker from nominal Impedance perspective.
Sensitivity
92dB of the Klipsch Reference Premiere RP-5103M is considered a high sensitivity compared to average stereo speaker which makes RP-5103M an easy to drive from Sensitivity perspective. If you are planning to power your speaker with a Tube amp which are generally very low power, the Klipsch RP-5103M will be a good choice. Work out how loud the Klipsch RP-5103M plays in your room →
Minimum Impedance of the Klipsch RP-5103M
Even though the nominal impedance of the RP-5103M is 8 ohms, the minimum impedance level of this speaker according to Klipsch is 3.2 ohms Klipsch Reference Premiere RP-5103M so while choosing an amplifier, you should ideally check if the unit you are considering can provide this impedance level.
What amplifier does the Klipsch RP-5103M need?
At normal listening levels in a medium room, about
4.7–75 W
per channel into 8 ohms.
Set your own conditions and we will rank every amplifier we cover.
Prefer to browse? Integrated amplifiers under $750, or every amplifier we cover.
Input Type
RP-5103M features Binding post type connectors. Bi-amping and Bi-wiring are not possible.
Work out what gauge speaker cable this run needs →
Klipsch RP-5103M External Dimensions and Weight
Klipsch RP-5103M has external dimensions of (Height x Width x Depth) 13-9/16 x 6-13/16 x 10-5/8inch (344.0 x 173.0 x 270.0mm ).
Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base area of Klipsch RP-5103M is approximately 467.1cm2 / 72.4inch2.
Find speakers that fit your shelf or alcove → · Work out where they should sit in the room →
Weight
All Bookshelf Speakers
Weight
Bookshelf Speakers under $750
Cabinet type and Materials
Klipsch RP-5103M has a
Bass Reflex type cabinet and a MDF (internally braced) finish. Bass Reflex type loudspeakers (aka Ported, Vented or Reflex Port) have enclosures that uses a port, hole or vent cut into the cabinet. Ported designs are generally more efficient than the Sealed designs.
Port Position
Klipsch RP-5103M is a rear-firing port speaker so you have to make sure you leave enough space between the back of the speaker and wall or bookshelf so that it has room to breathe.
Available colors
Klipsch RP-5103M is available in Ebony and Walnut.
Wall Mounting
RP-5103M doesn't sport any built-in mounting bracket, so you need an external structure to mount it on walls.
Does the Klipsch RP-5103M come with a Grille?
RP-5103M comes with grilles in black color choices. The purpose of the grille is to protect the delicate driver elements from external impacts while still allowing the sound to pass as clearly as possible.
Recommended Accessories
Here is a list of accessories that we think you may need for the Klipsch Reference Premiere RP-5103M.
- Speaker Cable and Connectors
- Vibration Isolators: IsoAcoustics isolators are our favorite isolators but you may find more affordable options too.
- Acoustic Panels and Treatments: Your room is as important as your stereo equipment so acoustic treatments goes a long way in improving the overall performance.
- Speaker Stands: Stands bring your bookshelf speakers to ideal height (rule of thumb is to have the tweeter level with your ear in your listening position), helps stability and acoustical isolation.
Warranty
5 Years of parts warranty and 5 Years of labor warranty is generally provided by the manufacturer.
