In this review, we will be comparing two different type of speakers by Revel. Revel Concerta2 F36 is a Floor-standing speaker whereas the M16 is a Bookshelf speaker.
Let's have a brief look at the main features
of Revel Concerta2 F36 and Revel M16 first before getting into our more
detailed comparison.
Revel Concerta2 F36 Key Specs
- 3-way Design
- 1" dome with with proprietary acoustic lens and waveguide Tweeter
- 6.5" Midrange
- 2 x 6.5" Anodized aluminum Woofer
- 51- Hz Frequency Response
- 91 dB Sensitivity
- Impedance: 6ohms
- Power Range:30-200watts
- Weight:22.73kg
- Dimensions (H x W x D): 1126.0" x 9-11/16" x 14-3/16"( 1126.0 x 247.0 x 361.0mm )
Revel M16 Key Specs
- 2-way Design
- 1" Dome Tweeter
- 6.5" Anodized aluminum Woofer
- 55- Hz Frequency Response
- 86 dB Sensitivity
- Impedance: 6ohms
- Power Range:50-120watts
- Weight:7.27kg
- Dimensions (H x W x D): 378.0" x 8-11/16" x 11"( 378.0 x 221.0 x 280.0mm )
F36 and M16 are members of Revel's Concerta series of speakers. Below you can find the loudspeakers from this series.
Revel Concerta Series History
What size room are the Revel Concerta2 F36 and Revel M16 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision factor. Here we have compared their suitability to various sizes of environments considering their size and max power parameters:
| Listening Environment* |
Revel Concerta2 F36 |
Revel M16 |
| Near-field |
Bad |
Poor |
| Small Room |
Poor |
Average |
| Mid-size Room |
Good |
Good |
| Large Room |
Good |
Average |
| Very Large Room |
Poor |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2, Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: > 400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual listening experience changes depending on floor height, room shape, surface materials, listening position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the Revel Concerta2 F36 and Revel M16 compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
One of the fundamental differences between these two speakers is that F36 is a 3-way design whereas the M16 is a 2-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.
| Driver |
Revel Concerta2 F36 |
Revel M16 |
|
Driver Setup
|
3-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
1 x 6.5-inch |
- |
|
Woofer
|
2 x 6.5-inch
|
1 x 6.5-inch
|
F36 features a 1" aluminum dome with with proprietary acoustic lens and waveguide Tweeter , a 6.5" Midrange and 2 x 6.5" Anodized aluminum Woofer . On the other hand, the M16 features a 1" aluminum Dome Tweeter and 1 x 6.5" Anodized aluminum Woofer .
Frequency Response
F36 has a frequency range of 51- Hz whereas M16 has a frequency range of 55- Hz. With a minimum frequency of 51Hz, the F36 can go slightly deeper then the M16's min frequency of 55Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
High Frequency
Floor-standing Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
F36 and M16 have the same Impedance of 6 ohms but where they differ is the sensitivity levels. F36 sensitivity is rated at 91 dB and the M16's is at 86 dB. This 5 dB difference makes the Revel Concerta2 F36 a more sensitive speaker compared to Revel M16, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using an amplifier within this range ensures the nominal performance , inputting a power that is higher than the max wattage can result in a damaged speaker.
F36 can handle a max power of 200 watts RMS from the amp the whereas M16 has a max power handling value of 120 watts RMS, 80 watts less than the F36.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
F36 features 5-way post type posts and M16 has a 5-way post type posts. None of these speakers feature bi-amping/bi-wiring.
Cabinet Type and Port Position
Both F36 and M16 have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.

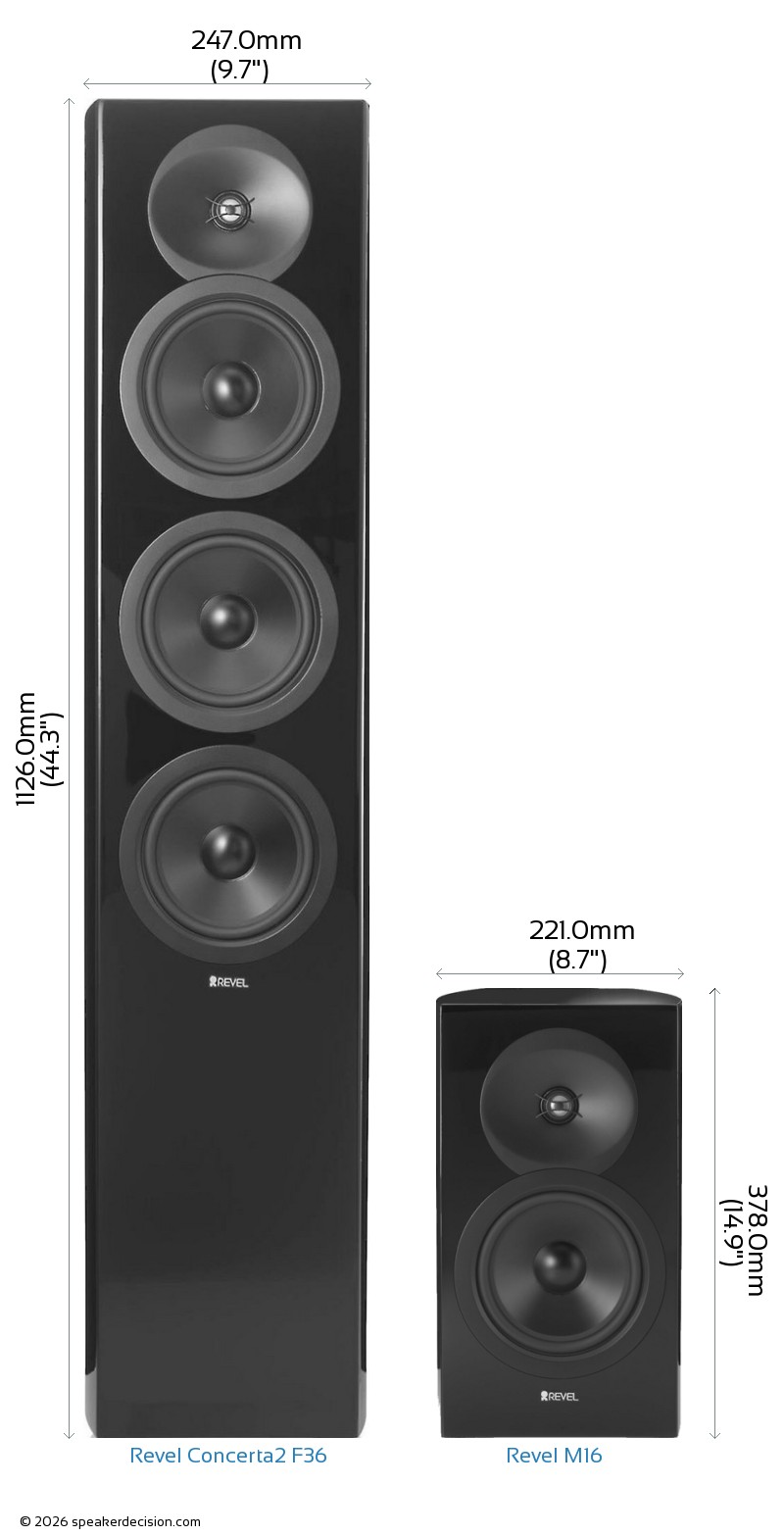

Physical Specs
Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Revel Concerta2 F36's and Revel M16's external dimensions. Revel Concerta2 F36 has external dimensions of 1126.0 x 247.0 x 361.0mm ( 44-5/16 x 9-11/16 x 14-3/16inch) whereas Revel M16 has external dimensions of 378.0 x 221.0 x 280.0mm ( 14-7/8 x 8-11/16 x 11inch) .
Revel Concerta2 F36 is clearly the larger of the two speakers. Its body is 26mm wider, 748mm taller and 81mm deeper than Revel M16.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Revel Concerta2 F36 is approximately 891.7cm2 / 138.2inch2 and base area of the Revel M16 is approximately 618.8cm2 / 95.9inch2. The F36 requires 44% more surface area than the M16 which gives it a small disadvantage on placement in tight spaces.
What's in the Box of Revel Concerta2 F36?
Here are the items that are included inside the box of F36:
Floorstanding loudspeakerGrille4 Spike feetOwners Manual
What's in the Box of Revel M16?
Here are the items that come with the M16:
Bookshelf loudspeakerGrilleOwners Manual
