In this review, we will be comparing M126Be and M106, two Passive Bookshelf speakers by Revel.
Let's have a brief look at the main features
of Revel M126Be and Revel M106 first before getting into our more
detailed comparison.
| Key Specs | Revel M126Be | Revel M106 |
|---|
| Design | 2-way | 2-way |
|---|
| Tweeter | 1" Hard-Dome | 1" Hard-Dome with Acoustic Lens Waveguide |
|---|
| Woofer | 6.5" DCC Aluminum | 6.5" Aluminum |
|---|
| Frequency response | 54-44k Hz | 59Hz- 20kHz |
|---|
| Sensitivity | 86 dB | 87 dB |
|---|
| Impedance | 8 ohms | 8 ohms |
|---|
| Power range | 50-150 watts | 50-150 watts |
|---|
| Weight | 10.00kg / 22lbs | 8.41kg / 18.5lbs |
|---|
| Dimensions (H x W x D) | 15-1/4" x 8-5/16" x 10-5/16"
388.0 x 212.0 x 262.0mm | 15-1/16" x 8-1/4" x 11"
383.0 x 210.0 x 280.0mm |
|---|
What size room are the Revel M126Be and Revel M106 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
Revel M126Be |
Revel M106 |
| Near-field |
Poor |
Poor |
| Small Room |
Average |
Average |
| Mid-size Room |
Good |
Good |
| Large Room |
Average |
Average |
| Very Large Room |
Poor |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
**This post contains affiliate links, and we will be compensated if you make a purchase after clicking
through our links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both M126Be and M106 are 2-way speakers.
Revel M126BeRevel M106
TweeterWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
Revel M126Be |
Revel M106 |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
1 x 6.5-inch
|
1 x 6.5-inch
|
M126Be features a 1" beryllium Hard-Dome Tweeter and 1 x 6.5" DCC Aluminum Woofer. On the other hand, the M106 features a 1" aluminum Hard-Dome with Acoustic Lens Waveguide Tweeter and 1 x 6.5" Aluminum Woofer with a Crossover frequency at 2300Hz.
Frequency Response
M126Be has a frequency range of 54-44k Hz whereas M106 has a frequency range of 59Hz- 20kHz. With a minimum frequency of 54Hz, the M126Be can go significantly deeper on the low side and provide stronger bass compared to the M106's min frequency of 59Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
M126Be and M106 have the same Impedance of 8 ohms but where they differ is the sensitivity levels. M126Be sensitivity is rated at 86 dB and the M106's is at 87 dB. This 1 dB difference makes the Revel M106 a more sensitive speaker compared to Revel M126Be, hence will play louder with the same amount of watts.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
M126Be and M106 have the same power range of 50-150 watts.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier — change it to the one you own, or any you are
considering, and watch both numbers move.
Input Type and Bi-Amping / Bi-Wiring
M126Be features Binding post type posts and M106 has a Binding post type posts. None of these speakers feature bi-amping/bi-wiring.
Revel M106's Binding post terminals
Cabinet Type and Port Position
Both M126Be and M106 have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Revel M126Be's and Revel M106's external dimensions. Revel M126Be has external dimensions of 388.0 x 212.0 x 262.0mm (15-1/4 x 8-5/16 x 10-5/16inch) whereas Revel M106 has external dimensions of 383.0 x 210.0 x 280.0mm (15-1/16 x 8-1/4 x 11inch).
Revel M106 is 2mm narrower and 5mm shorter than Revel M126Be but it is also 18mm deeper.

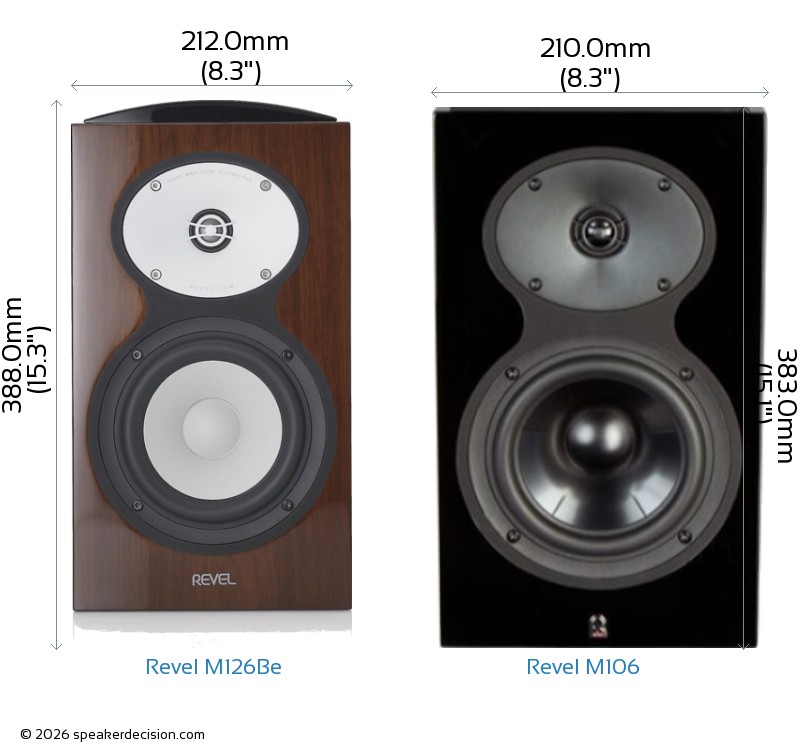

Below you can see the front view size comparison of Revel M126Be and Revel M106 in scale.
Comparison image of Revel M126Be and Revel M106 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the Revel M126Be is approximately 555.4cm2 / 86.1inch2 and base area of the Revel M106 is approximately 588.0cm2 / 91.1inch2. The M126Be requires 6% less surface area than the M106 which gives it a small advantage on placement in tight spaces.

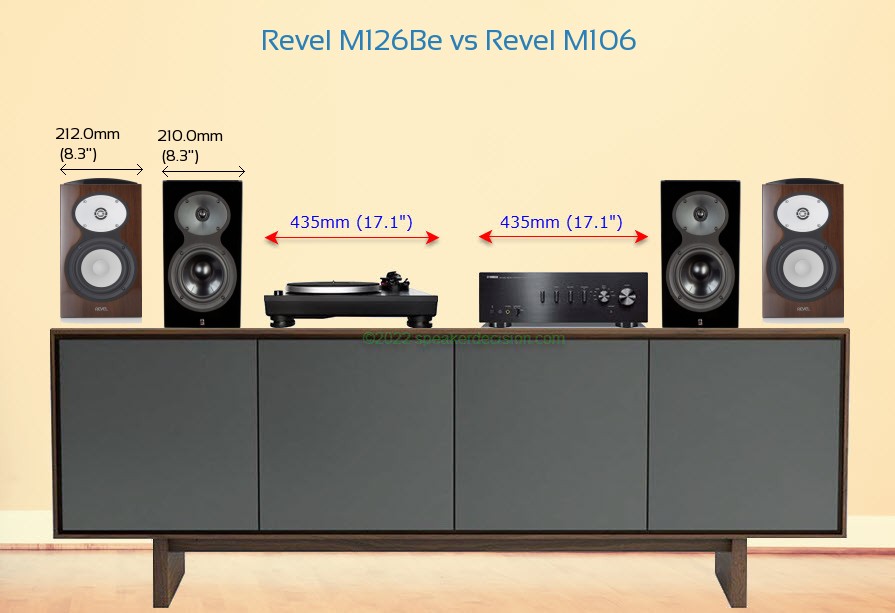

Here is another comparison that shows both speakers on a BDI Octave Media Cabinet, next to a standard size amplifier and turntable in scale:
Size Comparison image of Revel M126Be and Revel M106 on a Media Console
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The Revel M126Be weighs 10.00kg / 22lbs and the Revel M106 weighs 8.41kg / 18.5lbs. This makes the M126Be 19% heavier than the M106.
Here is a comparison of how M126Be and M106's weights compare with the average, max and min weights in Passive Bookshelf class.
Weight
All Bookshelf Speakers
What's in the Box of Revel M126Be?
Here are the items that are included inside the box of M126Be:
- Bookshelf loudspeaker
- Grille
- Foam port plug
- Owners Manual
What's in the Box of Revel M106?
Here are the items that come with the M106:
- Bookshelf loudspeaker
- Grille
- Foam port plug
- Owners Manual
 Low Frequency Response |
54 Hz
vs
59 Hz
|
Generates deeper bass |
 High Frequency Response |
44k Hz
vs
20k Hz
|
Generates higher frequency |
 Base Surface Area |
555cm2
vs
588cm2
|
Takes less floor space |
 Sensitivity |
87 dB
vs
86 dB
|
Play louder with same amount of amplification power |
 Height |
383mm
vs
388mm
|
Easier to fit in smaller spaces |
 Price per pair* |
2200USD
vs
4400USD
|
costs less (*prices may change depending on the seller, location and time) |
| General |
Revel PerformaBe M126Be |
Revel Performa3 M106 |
| Brand |
Revel |
Revel |
| Speaker Type |
Bookshelf speakers |
Bookshelf speakers |
| Power Range |
50-150 watts |
50-150 watts |
| Sensitivity |
86 dB |
87 dB |
| Impedance |
8 ohms |
8 ohms |
| Frequency Response |
54-44k Hz |
59Hz- 20kHz |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
6.5" |
6.5" |
| Woofer Composition |
DCC Aluminum |
Aluminum |
| Woofer Surround Material |
Rubber |
Rubber |
| Tweeter Size |
1" |
1" |
| Tweeter Type |
Hard-Dome |
Hard-Dome with Acoustic Lens Waveguide |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Crossover Frequency |
n/a |
2300Hz |
| Firing Direction |
rear |
rear |
Physical Specs |
|
|
| Height |
388.0mm (15.3") |
383.0mm (15.1") |
| Width |
212.0mm (8.3") |
210.0mm (8.3") |
| Depth |
262.0mm (10.3") |
280.0mm (11") |
| Weight |
10.00kg (22lbs) |
8.41kg (18.5lbs) |
| Enclosure |
Bass reflex |
Bass Reflex |
| Finish |
Wood/Lacquer |
Wood/Lacquer |
| Available Colors |
Walnut,Black,White,Silver |
Gloss Walnut,Piano Black |
| Mounting Bracket |
No |
No |
| Recommended Stand Height |
22-26" |
24-25" |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
No |
No |
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
These sit in different price classes - Revel M126Be costs roughly 2x what Revel M106 does. Expect it to lead on paper; the question is whether the gap is audible enough in your room to be worth it.
| Area | Better | Why |
|---|
| Bass |
A |
Revel M126Be digs deeper - 54Hz against 59Hz. A subwoofer would even that out. |
| Amplifier needs |
evenly matched |
Similar sensitivity (86dB vs 87dB) - both want much the same power. |
| Headroom |
evenly matched |
Similar power handling (150W vs 150W). |
| Size |
depends |
Similar cabinet size - neither is easier to fit. |
| Expandability |
depends |
Neither adds bi-amping, a sub output or height drivers. Revel M106 sits in a wider range (8 models), so a matched surround system is easier later. |
| Price |
B |
Revel M106 is cheaper - $2,200 against $4,400, about 50% less; arguably a different class. |
A Revel M126Be
B Revel M106
depends neither is better in the abstract - it turns on your room, placement or how you will use them.
Only specs published for both speakers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
Revel M126Be is ahead, but only on 1 of the measured areas, and it costs about 50% more. That is a lot of money for a narrow margin on paper - Revel M106 looks like the sensible buy unless something else about the Revel M126Be appeals to you. If a subwoofer is in your plans, the bass gap largely stops mattering - you would be crossing over above 59Hz anyway, which makes the cheaper Revel M106 much easier to justify. Think about the whole system, not just the speakers: the roughly $2,200 saved by taking the cheaper pair would buy a subwoofer or a better amplifier, and either usually does more for the sound than the difference between these two.
And remember what a spec sheet cannot show: how each looks in your room and whether the finish suits it, what dealer support and warranty are like where you live, and how they actually sound to you. If you can hear them first - ideally with your own music - that will tell you more than any number above.
