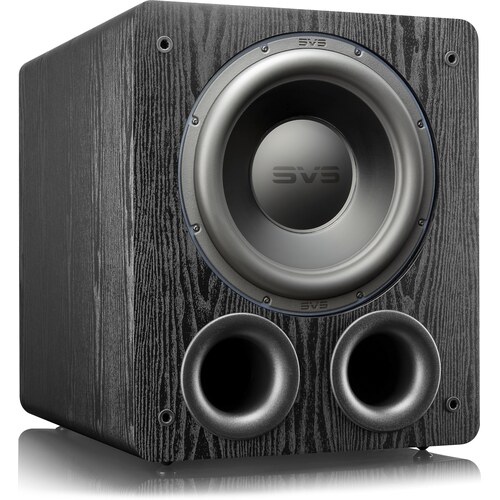

PB-3000 is a Ported type Powered Subwoofer by SVS with a frequency range of 16-200 Hz. It was released in 2019. It features 1 x 13" Aluminum Woofer, and powered by a Sledge STA-800D2 800 watts amplifier.
PB-3000 is a member of SVS's PB series of Powered subwoofers. PB stands for "Ported Box" and represents the ported subwoofers of SVS which are generally larger compared to its sealed subwoofers, and produce greater dynamic output and play lower. Below you can see the main specs of these subwoofers as well as review and comparison links.
See all 8 SVS PB models compared »
**This post contains affiliate links, and we will be compensated if you make a purchase after clicking through our links. As an Amazon Associate I earn from qualifying purchases.
Frequency Response
Where should the crossover go? → · What will your room do to this bass? →
SVS PB-3000 has a Frequency response range of 16-200 Hz. Thanks to its 1 x 13-inch driver and 800 watts RMS (2500 watts MAX) amplifier, at 16Hz the PB-3000 can generate bass levels that is even below 20Hz which is considered to be the bottom limit of Full Range sound (20Hz -20kHz) that human can hear.
Here we have a comparison of how PB-3000's Low and High frequency values compare with the average, max and min Low and High frequency values in its class.
Low Frequency
Powered Subwoofers
High Frequency
Subwoofer Speakers
SVS PB-3000's Aluminum Woofer
Among all subwoofers in our database with a max MSRP price of 2000$, these are the 5 Powered Subwoofer models that can reach deeper bass levels than the SVS PB-3000's 16Hz:
Low-Pass CrossoverSVS PB-3000 has a variable Low-pass filter (LFP) which lets you choose a frequency level between 30-200 Hz in order to block any frequencies above that point from reaching the amplifier.
SVS PB-3000 Back View
App-Based Control
SVS PB-3000 can be controlled wirelessly via SVS Subwoofer App app available on iOS and Android. Considering the physical buttons are at the backside of the subwoofer, app control comes very handy when you need to change the parameters of the SVS PB-3000 frequently. Apps also provides settings that can't be placed on the body.
SVS PB-3000 Wireless Control App
Inputs and Outputs
- PreampLevel Inputs: Stereo RCA/LFE
- SpeakerLevel Inputs: No
- SpeakerLevel Outputs: No
- Wireless: No
Wireless Connection
SVS PB-3000 lets you make a wireless connection to your system with an optional
SVS Soundpath Wireless Audio adapter. Wireless connection helps to minimize the cables running on your floor.
SVS PB-3000 External Dimensions and Weight
SVS PB-3000 has external dimensions of (Height x Width x Depth) 21-15/16 x 18-5/16 x 26inch (558.0 x 466.0 x 661.0mm ).
Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base area of SVS PB-3000 is approximately 3080.3cm2 / 477.4inch2.
To get a better perspective on the real life size of SVS PB-3000, let's compare it with a standard size Compact Disc which has a diameter of 4.7inch (120mm).
SVS PB-3000 Speaker Size Compared to a Compact Disc
Here we place the SVS PB-3000 virtually next to a standard width amplifier and turntable on a media center to get a better idea about the size.
SVS PB-3000 Subwoofer next to a Media Stand
Find speakers that fit your shelf or alcove →
WeightThe SVS PB-3000 weighs 37.36kg / 82.2lbs. Weight of a subwoofer is an important factor when you need to move and reposition the unit often to find the optimal positioning, also known as 'Subwoofer Crawling'. Here is a comparison of how PB-3000's weight compares with the average, max and min weights in its class.
Weight
All Subwoofer Speakers
Weight
Subwoofer Speakers under $2000
How does the SVS PB-3000 compare to the SVS PB-4000?
One of the natural alternative to the SVS PB-3000 is the PB-4000 which is located one step higher in SVS's Powered Subwoofer selection.
Here is a scaled size comparison of these two speakers to give you an idea how their external dimensions compare:
Comparison image of SVS PB-3000 and SVS PB-4000 Size and External Dimensions
Check the Detailed Comparison of SVS PB-3000 vs PB-4000 for more details.
Cabinet type and Materials
SVS PB-3000 has a
Bass Reflex type cabinet. Ported subwoofers are generally accepted to be more suitable for home theatre systems whereas the sealed designs are preferred for music oriented systems.
Port Position
SVS PB-3000 is a front-firing port speaker, which gives you more flexibility compared to rear firing speakers when you need to place it close against a wall or other surfaces.
Does the SVS PB-3000 come with a Grille?
PB-3000 comes with grilles. The purpose of the grille is to protect the delicate driver elements from external impacts while still allowing the sound to pass as clearly as possible.
SVS PB-3000 with Grille
What's in the Box of SVS PB-3000?
Here are the items that are included inside the box of PB-3000:
- Powered subwoofer
- Grille
- 6.5-feet AC power cord
- Quick Start Guide
- Online Registration Card
- SVS brochure
Recommended Accessories
Here is a list of accessories that we think you may need for the SVS PB-3000.
Warranty
5 Years of parts warranty and 5 Years of labor warranty is generally provided by the manufacturer.
| General |
| Brand | SVS |
| Full Model Name | SVS PB-3000 |
| Type | Powered Subwoofer |
| Release Date | 2019 |
| Frequency Response | 16-200 Hz |
| Enclosure Type | Ported |
| Enclosure | Bass Reflex |
| Firing Direction | Front |
| Port Position | front |
Amplifier & Driver |
| Power (RMS) | 800 watts |
| Power (Peak) | 2500 watts |
| Amplifier Type | Sledge STA-800D2 |
| Woofer | 13-inch Aluminum |
| Controls & Connections |
| Low-pass Crossover | 30-200 Hz |
| Phase Control | Yes |
| Room Correction | Yes |
| Built-in DSP | 50MHz Analog Devices DSP |
| App Control | iOS,Android |
| Wireless | Optional |
| Line-level Inputs | Stereo RCA/LFE |
| Speaker-level Inputs | No |
| Speaker-level Outputs | No |
Physical |
| Dimensions (HxWxD) | 21-15/16" x 18-5/16" x 26" (558.0 x 466.0 x 661.0mm) |
| Weight | 37.36 kg (82.2 lbs) |
| Grille | Yes |
| Mounting Bracket | No |
| Parts Warranty | 5 Years |
| Labor Warranty | 5 Years |
