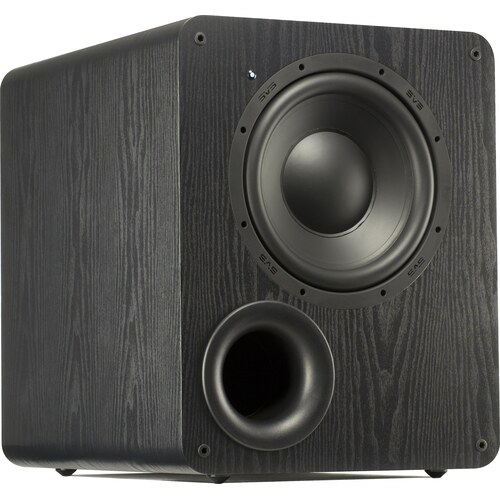

SVS PB-1000 Subwoofer Review

Main Features

  • 10" Fiber-composite Woofer
  • 300 watts RMS Output
  • 19-270 Hz Frequency Response
  • Weight: 46.00 lbs / 20.91kg
  • Dimensions (H x W x D): 18-7/8" x 15" x 20-15/16"
CHECK PRICE
CHECK PRICE

Compare To

x
Add a Subwoofer for comparison
SVS PB-1000 Subwoofer Review
SVS PB-1000 SVS PB-1000
See at AMAZON

PB-1000 is a Ported type Powered Subwoofer by SVS with a frequency range of 19-270 Hz. It features 1 x 10" Fiber-composite Woofer, and powered by a 300 watts amplifier.

SVS later replaced PB-1000 with PB-1000 Pro. Follow the link to read our in-depth comparison of these speakers:
Compare SVS PB-1000 vs SVS PB-1000 Pro

PB-1000 is a member of SVS's PB series of Powered subwoofers. PB stands for "Ported Box" and represents the ported subwoofers of SVS which are generally larger compared to its sealed subwoofers, and produce greater dynamic output and play lower. Below you can see the main specs of these subwoofers as well as review and comparison links.

SVS PB Series Subwoofers
Model Frequency Woofer Amp Power Weight
SVS PB-1000
19-270k Hz 10" 300 watts 20.91kg
SVS PB-1000 Pro
Compare
17-260k Hz 12" 325 watts 19.30kg
SVS PB-2000 Pro
Compare
16-290k Hz 12" 550 watts 29.45kg
SVS PB-4000
Compare
16-200k Hz 13.5" 1200 watts 69.64kg
SVS PB-3000
Compare
16-200k Hz 13" 800 watts 37.36kg
SVS PB16-Ultra
Compare
13-280k Hz 16" 1500 watts 79.32kg


**This post contains affiliate links, and I will be compensated if you make a purchase after clicking through my links. As an Amazon Associate I earn from qualifying purchases.

Frequency Response

SVS PB-1000 has a Frequency response range of 19-270 Hz at ±3dB. Thanks to its 1 x 10-inch driver and 300 watts RMS amplifier, at 19Hz the PB-1000 can generate bass levels that is even below 20Hz which is considered to be the bottom limit of Full Range sound (20Hz -20kHz) that human can hear. Here we have a comparison of how PB-1000's Low and High frequency values compare with the average, max and min Low and High frequency values in its class.

Low Frequency
Powered Subwoofers
SVS PB-1000
Min
Average
Max
High Frequency
Subwoofer Speakers
SVS PB-1000
Min
Average
Max

Low-Pass Crossover

SVS PB-1000 has a variable Low-pass filter (LFP) which lets you choose a frequency level between 50-160 Hz in order to block any frequencies above that point from reaching the amplifier.

Inputs and Outputs

  • PreampLevel Inputs: Yes
  • SpeakerLevel Inputs: Yes
  • SpeakerLevel Outputs: No
  • Wireless: No

SVS PB-1000 External Dimensions and Weight

SVS PB-1000 has external dimensions of (Height x Width x Depth) 18-7/8 x 15 x 20-15/16inch (480.0 x 381.0 x 532.0mm ).

Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited. The base area of SVS PB-1000 is approximately 2026.9cm2 / 314.2inch2.

To get a better perspective on the real life size of SVS PB-1000, let's compare it with a standard size Compact Disc which has a diameter of 4.7inch (120mm).

SVS PB-1000 Real Life Body Size Comparison
SVS PB-1000 Speaker Size Compared to a Compact Disc

Here we place the SVS PB-1000 virtually next to a standard width amplifier and turntable on a media center to get a better idea about the size.

SVS PB-1000 placed next to a Media Stand
SVS PB-1000 Subwoofer next to a Media Stand

Weight

The SVS PB-1000 weighs 20.91kg / 46lbs. Weight of a subwoofer is an important factor when you need to move and reposition the unit often to find the optimal positioning, also known as 'Subwoofer Crawling'. Here is a comparison of how PB-1000's weight compares with the average, max and min weights in its class.

Weight
All Subwoofer Speakers
SVS PB-1000
Min
Average
Max
Weight
Subwoofer Speakers under $500
SVS PB-1000
Min
Average
Max

How does the SVS PB-1000 compare to the SVS PB-2000 Pro?

One of the natural alternative to the SVS PB-1000 is the PB-2000 Pro which is located one step higher in SVS's Powered Subwoofer selection.

Here is a scaled size comparison of these two speakers to give you an idea how their external dimensions compare:

SVS PB-1000 vs SVS PB-2000 Pro Size Comparison - Front View
Comparison image of SVS PB-1000 and SVS PB-2000 Pro Size and External Dimensions

Check the Detailed Comparison of SVS PB-1000 vs PB-2000 Pro for more details.

Cabinet type and Materials

SVS PB-1000 has a Bass Reflex type cabinet. Ported subwoofers are generally accepted to be more suitable for home theatre systems whereas the sealed designs are preferred for music oriented systems.

Port Position

SVS PB-1000 is a front-firing port speaker , which gives you more flexibility compared to rear firing speakers when you need to place it close against a wall or other surfaces.

Does the SVS PB-1000 come with a Grille?

PB-1000 comes with grilles. The purpose of the grille is to protect the delicate driver elements from external impacts while still allowing the sound to pass as clearly as possible.

What's in the Box of SVS PB-1000?

Here are the items that are included inside the box of PB-1000:
  • Powered subwoofer
  • Grille (installed)
  • 6-feet AC power cord
  • Owners Manual
  • Important Safety Instructions
  • Recommended Accessories

    Here is a list of accessories that we think you may need for the SVS PB-1000.

    • Vibration Isolators: IsoAcoustics isolators more affordable options too.
    • Acoustic Panels and Treatments: Your room is as important as your stereo equipment so acoustic treatments goes a long way in improving the overall performance.

    Warranty

    5 Years of parts warranty and 5 Years of labor warranty is generally provided by the manufacturer.

    SVS PB-1000 Alternatives in Powered Subwoofer Speakers
    Model Frequency Woofer Amp Power Dimensions
    Polk Monitor XT12
    Compare
    24-160k Hz 12" 50 watts 16-7/16inch x 16-1/16inch x 19-1/16inch "
    B&W DB4S
    Compare
    10-350k Hz 10" 1000 watts 14-3/4 x 14-1/4 x 17-1/16inch"
    Klipsch R-101SW
    Compare
    30-160k Hz 10" 150 watts 14-9/16inch x 14-1/16inch x 20-13/16inch "
    Klipsch R-121SW
    Compare
    28-120k Hz 12" 200 watts 16-5/8inch x 16inch x 20-15/16inch "
    Klipsch RP-1200SW
    Compare
    17-138k Hz 12" 400 watts 18-15/16inch x 17inch x 25-15/16inch "
    SVS SB-1000 Pro
    Compare
    20-270k Hz 12" 325 watts 13-1/2inch x 13inch x 15-13/16inch "
    Wharfedale SW-15
    Compare
    30-120k Hz 15" 400 watts 22-7/16inch x 19-3/8inch x 24-3/16inch "
    KEF KUBE 8b
    Compare
    34-140k Hz 8" 300 watts 11-9/16 x 11-5/8 x 13-5/16inch"
    Klipsch SPL-100
    Compare
    27-125k Hz 10" 200 watts 16-7/16 x 14-1/16 x 18-13/16inch"
    KEF KUBE 10b
    Compare
    24-140k Hz 10" 300 watts 14-5/8 x 14 x 15-5/8inch"
    JBL Stage A120P
    Compare
    32-150k Hz 12" 250 watts 16-5/16 x 15-7/16 x 18-11/16inch"
    KEF KC62
    Compare
    11-200k Hz 6.5" 1000 watts 9-5/8inch x 10-1/8inch x 11-1/16inch "
    Klipsch RP-1400SW
    Compare
    16-141k Hz 14" 500 watts 21-5/16inch x 20inch x 25-11/16inch "
    B&W ASW610
    Compare
    27-140k Hz 10" 200 watts 12-5/8 x 12-1/4 x 15-1/2inch"
    Klipsch R-100SW
    Compare
    32-120k Hz 10" 150 watts 14-5/8 x 12-9/16 x 18-1/16inch"
    Klipsch R-112SW
    Compare
    24-125k Hz 12" 300 watts 17-3/8 x 15-3/8 x 20-15/16inch"
    Frequently Asked Questions about SVS PB-1000
    What is the External Dimensions of SVS PB-1000
