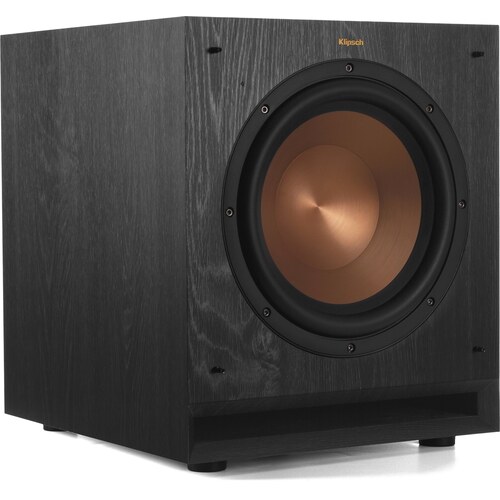

SPL-100 is a Ported type Powered Subwoofer by Klipsch with a frequency range of 27-125 Hz. It was released in 2018. It features 1 x 10" Cerametallic Woofer, and powered by a 200 watts amplifier.
Klipsch SPL-100 Lifestyle
SPL-100 is a member of Klipsch's SPL series of Powered subwoofers. The SPL range are Klipsch's high-output powered subwoofers. Below you can see the main specs of these subwoofers as well as review and comparison links.
Klipsch SPL Series Subwoofers
Frequency Response
Where should the crossover go? → · What will your room do to this bass? →
Klipsch SPL-100 has a Frequency response range of 27-125 Hz. With the help of its 1 x 10-inch driver and 200 watts RMS (450 watts MAX) amplifier, the SPL-100 can go as low as 27 Hz which doesn't quite offer full range sound (20Hz-2kHZ) but it gets really close.
Here we have a comparison of how SPL-100's Low and High frequency values compare with the average, max and min Low and High frequency values in its class.
Low Frequency
Powered Subwoofers
High Frequency
Subwoofer Speakers
Among all subwoofers in our database with a max MSRP price of 500$, these are the 5 Powered Subwoofer models that can reach deeper bass levels than the Klipsch SPL-100's 27Hz:
Low-Pass CrossoverKlipsch SPL-100 has a variable Low-pass filter (LFP) which lets you choose a frequency level between 40-120 Hz in order to block any frequencies above that point from reaching the amplifier.
Klipsch SPL-100 Back View
Inputs and Outputs
- PreampLevel Inputs: Stereo RCA/LFE
- SpeakerLevel Inputs: No
- SpeakerLevel Outputs: No
- Wireless: No
Wireless Connection
Klipsch SPL-100 lets you make a wireless connection to your system with an optional
adapter. Wireless connection helps to minimize the cables running on your floor.
Klipsch SPL-100 External Dimensions and Weight
Klipsch SPL-100 has external dimensions of (Height x Width x Depth) 16-7/16 x 14-1/16 x 18-13/16inch (418.0 x 358.0 x 478.0mm ).
Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base area of Klipsch SPL-100 is approximately 1711.2cm2 / 265.2inch2.
To get a better perspective on the real life size of Klipsch SPL-100, let's compare it with a standard size Compact Disc which has a diameter of 4.7inch (120mm).
Klipsch SPL-100 Speaker Size Compared to a Compact Disc
Here we place the Klipsch SPL-100 virtually next to a standard width amplifier and turntable on a media center to get a better idea about the size.
Klipsch SPL-100 Subwoofer next to a Media Stand
Find speakers that fit your shelf or alcove →
WeightThe Klipsch SPL-100 weighs 16.82kg / 37lbs. Weight of a subwoofer is an important factor when you need to move and reposition the unit often to find the optimal positioning, also known as 'Subwoofer Crawling'. Here is a comparison of how SPL-100's weight compares with the average, max and min weights in its class.
Weight
All Subwoofer Speakers
Weight
Subwoofer Speakers under $500
How does the Klipsch SPL-100 compare to the Klipsch SPL-120?
One of the natural alternative to the Klipsch SPL-100 is the SPL-120 which is located one step higher in Klipsch's Powered Subwoofer selection.
Here is a scaled size comparison of these two speakers to give you an idea how their external dimensions compare:
Comparison image of Klipsch SPL-100 and Klipsch SPL-120 Size and External Dimensions
Check the Detailed Comparison of Klipsch SPL-100 vs SPL-120 for more details.
Cabinet type and Materials
Klipsch SPL-100 has a
Bass Reflex type cabinet. Ported subwoofers are generally accepted to be more suitable for home theatre systems whereas the sealed designs are preferred for music oriented systems.
Port Position
Klipsch SPL-100 is a front-firing port speaker, which gives you more flexibility compared to rear firing speakers when you need to place it close against a wall or other surfaces.
Does the Klipsch SPL-100 come with a Grille?
SPL-100 comes with grilles. The purpose of the grille is to protect the delicate driver elements from external impacts while still allowing the sound to pass as clearly as possible.
Klipsch SPL-100 with Grille
What's in the Box of Klipsch SPL-100?
Here are the items that are included inside the box of SPL-100:
- Powered sub
- Grille
- 6.5-feet AC power cord
- User Manual
- Important Safety Instructions
- Warranty Information
Recommended Accessories
Here is a list of accessories that we think you may need for the Klipsch SPL-100.
Warranty
2 Years of parts warranty and 2 Years of labor warranty is generally provided by the manufacturer.
| General |
| Brand | Klipsch |
| Full Model Name | Klipsch SPL-100 |
| Type | Powered Subwoofer |
| Release Date | 2018 |
| Frequency Response | 27-125 Hz |
| Enclosure Type | Ported |
| Enclosure | Bass Reflex |
| Firing Direction | Front |
| Port Position | front |
Amplifier & Driver |
| Power (RMS) | 200 watts |
| Power (Peak) | 450 watts |
| Woofer | 10-inch Cerametallic |
| Controls & Connections |
| Low-pass Crossover | 40-120 Hz |
| Phase Control | Yes |
| Wireless | Optional |
| Line-level Inputs | Stereo RCA/LFE |
| Speaker-level Inputs | No |
| Speaker-level Outputs | No |
Physical |
| Dimensions (HxWxD) | 16-7/16" x 14-1/16" x 18-13/16" (418.0 x 358.0 x 478.0mm) |
| Weight | 16.82 kg (37 lbs) |
| Grille | Yes |
| Mounting Bracket | No |
| Parts Warranty | 2 Years |
| Labor Warranty | 2 Years |
