Bowers Wilkins Bowers & Wilkins DB4S Subwoofer Review

Main Features

  • 10" Aerofoil Woofer
  • 1,000 watts RMS Output
  • 10-350 Hz Frequency Response
  • App Control Feature
  • Weight: 57.30 lbs / 26.05kg
  • Dimensions (H x W x D): 14-3/4" x 14-1/4" x 17-1/16"
CHECK PRICE
CHECK PRICE

Compare To

x
Add a Subwoofer for comparison

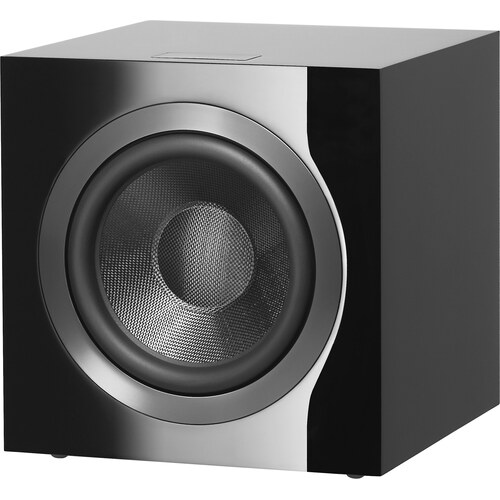

B&W DB4S Subwoofer Review

DB4S is a Sealed type Powered Subwoofer by Bowers Wilkins with a frequency range of 10-350 Hz. It features 1 x 10" Aerofoil Woofer, and powered by a 1000 watts amplifier.


**This post contains affiliate links, and I will be compensated if you make a purchase after clicking through my links. As an Amazon Associate I earn from qualifying purchases.

Frequency Response

B&W DB4S has a Frequency response range of 10-350 Hz at ±3dB. Thanks to its 1 x 10-inch driver and 1000 watts RMS amplifier, at 10Hz the DB4S can generate bass levels that is even below 20Hz which is considered to be the bottom limit of Full Range sound (20Hz -20kHz) that human can hear. Here we have a comparison of how DB4S's Low and High frequency values compare with the average, max and min Low and High frequency values in its class.

Low Frequency
Powered Subwoofers
B&W DB4S
Min
Average
Max
High Frequency
Subwoofer Speakers
B&W DB4S
Min
Average
Max

As you can see from the chart, B&W DB4S with its 10 Hz features the lowest Low Frequency level among the Subwoofer speakers in our database, promising a very good bass range.



Low-Pass Crossover

B&W DB4S has a variable Low-pass filter (LFP) which lets you choose a frequency level between 25-150 Hz in order to block any frequencies above that point from reaching the amplifier.

B&W DB4S Back View
B&W DB4S Back View

App-Based Control

B&W DB4S can be controlled wirelessly via app available on iOS and Android. Considering the physical buttons are at the backside of the subwoofer, app control comes very handy when you need to change the parameters of the B&W DB4S frequently. Apps also provides settings that can't be placed on the body.

Inputs and Outputs

  • PreampLevel Inputs: Stereo RCA, XLR
  • SpeakerLevel Inputs: No
  • SpeakerLevel Outputs: No
  • Wireless: No

B&W DB4S Connections
B&W DB4S Connections

B&W DB4S External Dimensions and Weight

B&W DB4S has external dimensions of (Height x Width x Depth) 14-3/4 x 14-1/4 x 17-1/16inch (375.0 x 362.0 x 434.0mm ).

Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited. The base area of B&W DB4S is approximately 1571.1cm2 / 243.5inch2.

Weight

The B&W DB4S weighs 26.05kg / 57.3lbs. Weight of a subwoofer is an important factor when you need to move and reposition the unit often to find the optimal positioning, also known as 'Subwoofer Crawling'. Here is a comparison of how DB4S's weight compares with the average, max and min weights in its class.

Weight
All Subwoofer Speakers
B&W DB4S
Min
Average
Max
Weight
Subwoofer Speakers under $3000
B&W DB4S
Min
Average
Max

How does the B&W DB4S compare to the Bowers Wilkins DB3D?

One of the natural alternative to the B&W DB4S is the DB3D which is located one step higher in Bowers Wilkins's Powered Subwoofer selection.

Check the Detailed Comparison of B&W DB4S vs DB3D for more details.

Cabinet type and Materials

B&W DB4S has a Acoustic Suspension type cabinet. Acoustic suspension aka Sealed subwoofers are preferred for music oriented systems whereas the Ported subwoofers are generally accepted to be more suitable for home theatre systems.

Port Position

B&W DB4S is a front-firing port speaker , which gives you more flexibility compared to rear firing speakers when you need to place it close against a wall or other surfaces.

Does the B&W DB4S come with a Grille?

DB4S comes with grilles. The purpose of the grille is to protect the delicate driver elements from external impacts while still allowing the sound to pass as clearly as possible.

B&W DB4S  with Grille
B&W DB4S with Grille

What's in the Box of B&W DB4S?

Here are the items that are included inside the box of DB4S:
  • Powered subwoofer
  • Grille
  • 6.5-feet AC power cord
  • 4 Decoupling feet
  • 4 Rubber feet
  • 4 Spike feet
  • 4 Lock-nuts
  • Cleaning cloth
  • Quickstart Guide
  • Bowers & Wilkins brochure
  • Warranty Information
  • Cleaning cloth instructions
  • Warranty

    2 Years of parts warranty and 2 Years of labor warranty is generally provided by the manufacturer.

    B&W DB4S  Lifestyle
    B&W DB4S Lifestyle

    Bowers & Wilkins DB4S Alternatives in Powered Subwoofer Speakers
    Model Frequency Woofer Amp Power Dimensions
    Polk Monitor XT12
    Compare
    24-160k Hz 12" 50 watts 16-7/16inch x 16-1/16inch x 19-1/16inch "
    Klipsch R-121SW
    Compare
    28-120k Hz 12" 200 watts 16-5/8inch x 16inch x 20-15/16inch "
    SVS SB-1000 Pro
    Compare
    20-270k Hz 12" 325 watts 13-1/2inch x 13inch x 15-13/16inch "
    Klipsch R-101SW
    Compare
    30-160k Hz 10" 150 watts 14-9/16inch x 14-1/16inch x 20-13/16inch "
    KEF KC62
    Compare
    11-200k Hz 6.5" 1000 watts 9-5/8inch x 10-1/8inch x 11-1/16inch "
    Wharfedale SW-15
    Compare
    30-120k Hz 15" 400 watts 22-7/16inch x 19-3/8inch x 24-3/16inch "
    KEF KUBE 8b
    Compare
    34-140k Hz 8" 300 watts 11-9/16 x 11-5/8 x 13-5/16inch"
    Klipsch R-100SW
    Compare
    32-120k Hz 10" 150 watts 14-5/8 x 12-9/16 x 18-1/16inch"
    Klipsch SPL-100
    Compare
    27-125k Hz 10" 200 watts 16-7/16 x 14-1/16 x 18-13/16inch"
    SVS PB-1000 Pro
    Compare
    17-260k Hz 12" 325 watts 18-13/16inch x 15inch x 20-15/16inch "
    SVS PB-1000
    Compare
    19-270k Hz 10" 300 watts 18-7/8 x 15 x 20-15/16inch"
    Jamo S 808 SUB
    Compare
    39-180k Hz 8" 50 watts 18-1/16 x 7 x 14inch"
    KEF KUBE 10b
    Compare
    24-140k Hz 10" 300 watts 14-5/8 x 14 x 15-5/8inch"
    Klipsch SPL-120
    Compare
    24-125k Hz 12" 300 watts 17-11/16 x 14-3/4 x 21-1/4inch"
    Cambridge Audio Minx X201
    Compare
    36-200k Hz 6.5" 200 watts 8-5/8 x 8-1/4 x 10-1/16inch"
    Wharfedale SW-12
    Compare
    35-120k Hz 12" 300 watts 18-7/8inch x 15-13/16inch x 20-1/8inch "
    Frequently Asked Questions about Bowers & Wilkins DB4S
    What is the External Dimensions of Bowers & Wilkins DB4S
