The A-S301 is an integrated amplifier with built-in DAC by Yamaha that delivers 60 watts x 2 channels into 8 ohms and 70 watts x 2 channels into 4 ohms. It was released in 2014. It is a 2-channel design using a Class A/B output stage. A minimum impedance of 4 ohms makes it compatible with a wide range of loudspeakers. It has a built-in DAC (Texas Instruments PCM5101), so you can play digital sources directly with no separate DAC unit needed. It also has a phono input, so a turntable can connect straight to it. The Yamaha A-S301 has an MSRP of $350.
Yamaha A-S301 Amplifier Internal View
There are 9 Yamaha amplifiers in our database. Below you can see the main specs of these amps.
Yamaha Integrated Amplifier Series
Performance Specs
One of the most important factors when deciding on an integrated amplifier is its power ratings and compatibility with your speaker's impedance requirements. The Yamaha A-S301 is rated at 60 watts RMS into 8-ohms. Yamaha provides this wattage at a THD (Total Harmonic Distortion) of 0.019% which is an important indicator of distortion at the given values (lower THD is better).
Here are the main highlights of its performance specs:
- 60 watts into 8-ohms (20 Hz-20 kHz) at 0.019%
- 70 watts into 4-ohms
- 4-ohms Min Impedance (allows compatibility with a wide range of loudspeakers)
- 99dB Signal to Noise Ratio
How loud will 60 watts actually play in your room? →
Wiring more than one pair of speakers to it? Check the load first →
Which speakers suit the Yamaha A-S301?
60 W into 8 ohms, 70 W into 4, rated down to 4 ohms.
We rank every passive speaker we cover against it on power, impedance safety and current
delivery.
Need more power?
Yamaha A-S301 is rated at 60 watts into 8 ohms, which puts it in our Up to 60 watts band. The next band up is 61 to 90 watts, which is worth about 3.9dB more output. That is a real difference in headroom on peaks, and a modest one in how loud the system plays - power and loudness are not the same thing.
Before buying watts, check what your speakers actually need: the amp and speaker matcher works it out from their sensitivity, impedance and your room.
When pairing the Yamaha A-S301 with a passive Bookshelf (Stand mount) or Passive Floor Standing (Tower) speaker, you have to check if their Max Power Range is below the max wattage of the amp for the given impedance levels.
Operating your amp outside of this max range may damage the speakers.
What size of room is the Yamaha A-S301 Amplifier good for?
An essential deciding factor is the size of the room in which you intend to employ the Yamaha A-S301 amplifier. Here, taking into account its maximum power parameters, we analyzed its applicability to various size environments:
| Listening Environment |
Suitability |
| Near-field | Average |
| Small Room | Good |
| Mid-size Room | Average |
| Large Room | Poor |
| Very Large Room | Bad |
Inputs and Outputs
Besides the performance specs of the Yamaha A-S301, the next important feature set that you have to evaluate is the input and output selections that it offers.
Yamaha A-S301 has total of 6 Analog inputs including 1 Phono Input (MM).

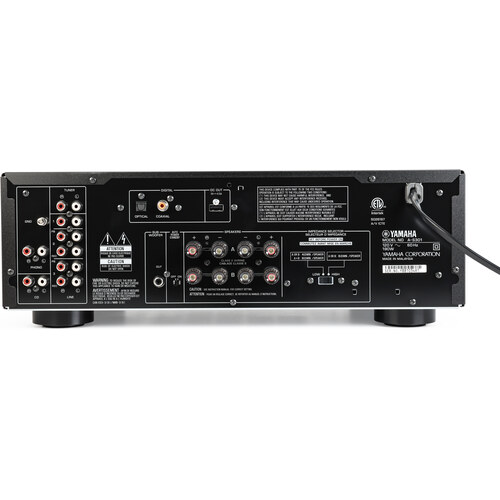

Yamaha A-S301 Back View (Click the image for the larger version)
Inputs
- Total Number of Analog Inputs: 6
- Phono Input
- 1 Optical Digital Input
- 1 Coaxial Digital Input
Outputs
- Speaker Outputs (A/B switchable)
- Sub Preamp Outputs
- 1/4 Headphone Output
- Subwoofer Output (1)
Bluetooth Connectivity
Yamaha A-S301 doesn't have bluetooth connectivity feature. In order to stream your music via bluetooth, the easiest way is to connect an external bluetooth receiver to your Yamaha A-S301. Two bluetooth receivers that we recommend are the
iFi Zen Blue V2 and the
Audioengine B1.
Among the amps in the same price range, these are the 5 amps that have Bluetooth Connectivity:
Phono Input
Yamaha A-S301 features one Phono Input which is compatible with
MM (Moving Magnet) type of phono cartridges, you can connect your turntable with MM cartridges directly to this amp without the need for a phono preamp. If you are using an MC cartridge on your turntable, you need to use a phono preamp that has MC phono stage such as the
Cambridge Duo or the
iFi ZEN Phono.
Subwoofer Output
Yamaha A-S301 has a dedicated subwoofer output which can be used to connect it directly to a powered subwoofer via an LFE(Low Frequency Effects) cable.
Check our
Powered Subwoofers page to find a subwoofer that will work with Yamaha A-S301 amp and your speakers.
DAC and Digital Music
The Yamaha A-S301's built-in DAC allows the connection of digital sources directly, eliminating the need for an external DAC. The DAC chip that is used in the A-S301 is the
Texas Instruments PCM5101, and supports resolutions up to
24-bit, 192KHZ.
Yamaha A-S301 Handheld Remote
Yamaha A-S301 Pros and Cons
Drawn from the published figures on this page, not from listening.
- ✓6 analogue inputs, enough for a full rack of sources.
- ✓Built-in DAC handling 24-bit / 192, so a TV, computer or streamer can connect digitally with nothing in between.
- ✓Digital inputs cover 1 optical and 1 coaxial.
- ✓Phono stage built in (MM), so a turntable needs no separate preamplifier.
- ✓Pre-outs (Sub) leave room to add a power amplifier or an active subwoofer later.
- ✓A and B speaker terminals, for a second pair or for bi-wiring.
- ✓Headphone output (1/4).
- ✓Has tone controls, a loudness contour and a direct mode that bypasses them.
- ✗Output rises only from 60 to 70 watts when the load halves to 4 ohms, so it is happier with an easy 8 ohm speaker than a demanding one.
- ✗The phono stage is moving-magnet only; a moving-coil cartridge would need a step-up or an external stage.
- ✗No Bluetooth and no network streaming - everything arrives over a cable.
Yamaha A-S301 External Dimensions and Weight
Yamaha A-S301 has external dimensions of (H x W x D) 5-15/16inch x 17-1/8inch x 15-3/8inch (151.0mm x 435.0mm x 391.0mm ). The unit weighs
9 kg (19.8 lbs).
Base Surface Area
Base surface area of an integrated amplifier may become an important decision factor when the space in your room or desk is limited.
The base area of the Yamaha A-S301 is approximately 1700.9cm2 / 263.6inch2.
- Width: 435.0mm (17-1/8")
- Height: 151.0mm (5-15/16")
- Depth: 391.0mm (15-3/8")
- Weight: 9 kg (19.8 lbs)
- Base Surface Area: ~1700.9cm2 / 263.6inch2
- Volume: ~25.7 liter / 6.8 gallon
Available colors
Yamaha A-S301 is available in Black and Silver color options.
What's in the Box of Yamaha A-S301?
Here are the items that are included inside the box of A-S301:
- Stereo integrated amplifier
- Remote control (RAS13)
- 2 AA batteries
- Owners manual (En/ Fr)
- Warranty information (US/CA)
- On-line product registration information
- Yamaha Worldwide Representative Offices note
Official Product Page
Official manufacturer's product page for the Yamaha A-S301 Integrated Amplifier can be found below:
Official Product Page for Yamaha A-S301
Warranty
2 Years of parts warranty and 2 Years of labor warranty is generally provided for the Yamaha A-S301 by the manufacturer.
| General |
| Brand |
Yamaha |
| Full Model Name |
Yamaha A-S301 |
| Release Date |
2014 |
| Amplifier Type |
Integrated Amplifier |
| Number of Channels |
2 |
| Amp Class |
Class A/B |
| Amplifier Technology |
Solid State |
| Performance |
| Watts RMS per Channel into 8-ohms |
60 watts |
| Watts RMS per Channel into 6-ohms |
N/A |
| Watts RMS per Channel into 4-ohms |
70 watts |
| Frequency Bandwidth |
20 Hz-20 kHz |
| THD |
0.019% |
| Minimum Impedance |
4 |
| Signal to Noise Ratio |
99 dB |
| Digital Music |
| Built-in DAC |
Yes |
| DAC Specs |
Texas Instruments PCM5101 |
| Bluetooth |
No |
| WiFi |
|
| Ecosystem |
| Apple AirPlay |
No |
| Apple AirPlay2 |
No |
| DTS Play-Fi |
No |
| Chromecast built-in |
No |
| Roon |
No |
| HEOS |
No |
| BluOS |
No |
| CONNECTIONS |
| Total Analog Inputs |
6 |
| Phono Input |
Yes |
| Optical Digital Inputs |
1 |
| Coaxial Digital Inputs |
1 |
| USB Input |
No |
| Preamp Outputs |
Sub |
| Pre-out / Main-in Loop |
No |
| Headphone Output |
1/4 |
| Subwoofer Output |
Yes |
| Removable Power Cord |
No |
| PHYSICAL SPECS |
| Height |
151.0mm (5-15/16") |
| Width |
435.0mm (17-1/8") |
| Depth |
391.0mm (15-3/8") |
| Weight |
9 kg (19.8 lbs) |
| Available Colors |
Black,Silver |
| OTHER |
| Tone Controls |
Yes |
| Loudness Control |
Yes |
| Parts Warranty |
2 Years |
| Labor Warranty |
2 Years |
