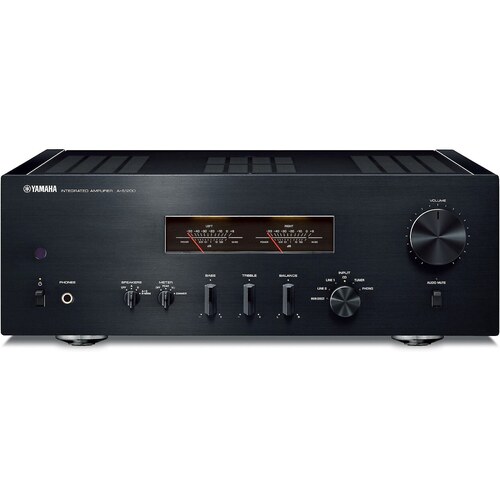

The A-S1200 is an Integrated Amplifier by Yamaha that delivers 90 watts x 2 channels into 8 ohms and 150 watts x 2 channels into 4 ohms. It was released in May 2020. Minimum impedance of 4 ohms makes the A-S1200 compatible with a wide range of loudspeakers. Yamaha A-S1200 lets you connect your turntable via its Phono input and start listening to your vinyl collection without a hassle. Yamaha A-S1200 has an MSRP of 3000$.
Yamaha A-S1200 Amplifier Internal View
There are 8 Yamaha amplifiers in our database. Below you can see the main specs of these amps.
Yamaha Integrated Amplifier Series
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking through my links. As an Amazon Associate I earn from qualifying purchases.
Performance Specs
One of the most important factors when deciding on an integrated amplifier is its power ratings and compatibility with your speaker's impedance requirements.The Yamaha A-S1200 is rated at 90 watts RMS into 8-ohms. Yamaha provides this wattage at a THD (Total Harmonic Distortion) of 0.07% which is an important indicator of distortion at the given values (lower THD is better).
Here are the main highlights of its performance specs:
- 90 watts into 8-ohms (20-20k) at 0.07%
- 150 watts into 4-ohms
- 4-ohms Min Impedance (allows compatibility with a wide range of loudspeakers)
- 110dB Signal to Noise Ratio
When pairing the Yamaha A-S1200 with a passive Bookshelf (Stand mount) or Passive Floor Standing (Tower) speaker, you have to check if their Max Power Range is below the max wattage of the amp for the given impedance levels.
Operating your amp outside of this max range may damage the speakers.
What size of room is the Yamaha A-S1200 Amplifier good for?
An essential deciding factor is the size of the room in which you intend to employ the Yamaha A-S1200 amplifier. Here, taking into account its maximum power parameters, we analyzed its applicability to various size environments:
| Listening Environment |
Suitability |
| Near-field | Poor |
| Small Room | Average |
| Mid-size Room | Good |
| Large Room | Average |
| Very Large Room | Poor |
Inputs and Outputs
Besides the performance specs of the Yamaha A-S1200, the next important feature set that you have to evaluate is the input and output selections that it offers.
Yamaha A-S1200 has total of 6 Analog inputs including 1 Phono Input (MM,MC).
Yamaha A-S1200 Back View (Click the image for the larger version)
Inputs
- Total Number of Analog Inputs: 6
- Phono Input
Outputs
- Speaker Outputs (A/B switchable)
- Stereo RCA Preamp Outputs
- 1/4 Headphone Output
Yamaha A-S1200's terminals
Bluetooth Connectivity
Yamaha A-S1200 doesn't have bluetooth connectivity feature. In order to stream your music via bluetooth, the easiest way is to connect an external bluetooth receiver to your Yamaha A-S1200. Two bluetooth receivers that we recommend are the
iFi Zen Blue V2 and the
Audioengine B1.
Among the amps in the same price range, these are the 5 amps that have Bluetooth Connectivity:
Phono Input
Yamaha A-S1200 features one Phono Input which is compatible with
MM (Moving Magnet) type of phono cartridges, you can connect your turntable with MM cartridges directly to this amp without the need for a phono preamp. If you are using an MC cartridge on your turntable, you need to use a phono preamp that has MC phono stage such as the
Cambridge Duo or the
iFi ZEN Phono.
Subwoofer Output
Yamaha A-S1200 has Stereo RCA preamp outputs which can be used to connect to a powered subwoofer via an RCA cable ( as long as your sub supports this connection).
Check our
Powered Subwoofers page to find a subwoofer that will work with Yamaha A-S1200 amp and your speakers.
Yamaha A-S1200 Handheld Remote
Yamaha A-S1200 External Dimensions and Weight
Yamaha A-S1200 has external dimensions of (H x W x D) 6-1/8inch x 17-1/8inch x 19-3/16inch (156.0mm x 435.0mm x 488.0mm ). The unit weighs
22.05kg / 48.5lbs.
Base Surface Area
Base surface area of an integrated amplifier may become an important decision factor when the space in your room or desk is limited.
The base area of the Yamaha A-S1200 is approximately 2122.8cm2 / 329.0inch2.
- Width: 435.0mm (17-1/8")
- Height: 156.0mm (6-1/8")
- Depth: 488.0mm (19-3/16")
- Weight: 22.05 kg (48.50lbs)
- Base Surface Area: ~2122.8cm2 / 329.0inch2
- Volume: ~33.1 liter / 8.7 gallon
Available colors
Yamaha A-S1200 is available in Black and Silver color options.
What's in the Box of Yamaha A-S1200?
Here are the items that are included inside the box of A-S1200:
- Integrated stereo amplifier
- 6.5-feet AC power cord
- Remote control (RAS36)
- 2 AA batteries
- Owners Manual
- Safety Brochure
- Online Product Registation Sheet
- Warranty Information
- Yamaha Worldwide Representative Offices-inch Note
Official Product Page
Official manufacturer's product page for the Yamaha A-S1200 Integrated Amplifier can be found below:
Official Product Page for Yamaha A-S1200
Warranty
2 Yrs/5 Yrs Registered of parts warranty and 2 Yrs/5 Yrs Registered of labor warranty is generally provided for the Yamaha A-S1200 by the manufacturer.
Yamaha A-S1200 Lifestyle
| General |
| Brand |
Yamaha |
| Full Model Name |
Yamaha A-S1200 |
| Release Date |
May 2020 |
| Amplifier Type |
Integrated Amplifier |
| Amp Class |
Class A/B |
| Performance |
| Watts RMS per Channel into 8-ohms |
90 watts |
| Watts RMS per Channel into 6-ohms |
N/A |
| Watts RMS per Channel into 4-ohms |
150 watts |
| Frequency Bandwidth |
20-20k |
| THD |
0.07% |
| Minimum Impedance |
4 |
| Signal to Noise Ratio |
110 dB |
| Digital Music |
| Built-in DAC |
No |
| Bluetooth |
No |
| WiFi |
|
| Ecosystem |
| Apple AirPlay |
No |
| Apple AirPlay2 |
No |
| DTS Play-Fi |
No |
| Chromecast built-in |
No |
| Roon |
No |
| HEOS |
No |
| BluOS |
No |
| CONNECTIONS |
| Total Analog Inputs |
6 |
| Phono Input |
Yes |
| Optical Digital Inputs |
No |
| Coaxial Digital Inputs |
No |
| USB Input |
No |
| Preamp Outputs |
Stereo RCA |
| Pre-out / Main-in Loop |
No |
| Headphone Output |
1/4 |
| Removable Power Cord |
IEC 2-prong |
| PHYSICAL SPECS |
| Height |
156.0mm (6-1/8") |
| Width |
435.0mm (17-1/8") |
| Depth |
488.0mm (19-3/16") |
| Weight |
22.05 kg (48.50lbs) |
| Available Colors |
Black,Silver |
| OTHER |
| Tone Controls |
Yes |
| Parts Warranty |
2 Yrs/5 Yrs Registered |
| Labor Warranty |
2 Yrs/5 Yrs Registered |
