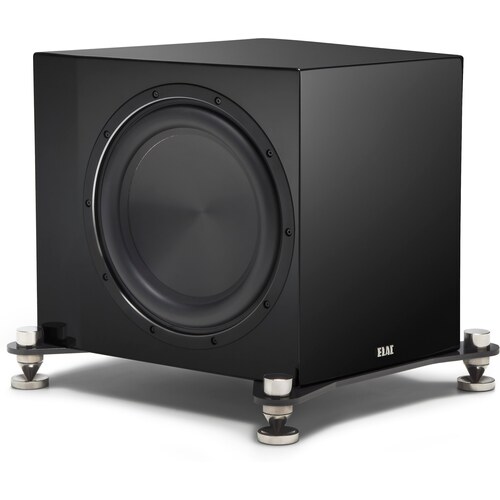

SUB3070 is a Sealed type Powered Subwoofer by ELAC with a frequency range of 18-180 Hz. It was released in 2018. It features 1 x 12" Aluminum Woofer, and powered by a 1200 watts amplifier.
**This post contains affiliate links, and we will be compensated if you make a purchase after clicking through our links. As an Amazon Associate I earn from qualifying purchases.
Frequency Response
Where should the crossover go? → · What will your room do to this bass? →
ELAC SUB3070 has a Frequency response range of 18-180 Hz. Thanks to its 1 x 12-inch driver and 1200 watts RMS amplifier, at 18Hz the SUB3070 can generate bass levels that is even below 20Hz which is considered to be the bottom limit of Full Range sound (20Hz -20kHz) that human can hear.
Here we have a comparison of how SUB3070's Low and High frequency values compare with the average, max and min Low and High frequency values in its class.
Low Frequency
Powered Subwoofers
High Frequency
Subwoofer Speakers
Low-Pass CrossoverELAC SUB3070 has a variable Low-pass filter (LFP) which lets you choose a frequency level between 40-150 Hz in order to block any frequencies above that point from reaching the amplifier.
Inputs and Outputs
- PreampLevel Inputs: Stereo RCA/LFE
- SpeakerLevel Inputs: Yes
- SpeakerLevel Outputs: No
- Wireless: No
Wireless Connection
ELAC SUB3070 lets you make a wireless connection to your system without the need for an external adapter which is great way to minimize the cables running around.
ELAC SUB3070 External Dimensions and Weight
ELAC SUB3070 has external dimensions of (Height x Width x Depth) 17-1/8 x 20-7/16 x 18-3/4inch (435.0 x 520.0 x 477.0mm ).
Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base area of ELAC SUB3070 is approximately 2480.4cm2 / 384.5inch2.
Find speakers that fit your shelf or alcove →
WeightThe ELAC SUB3070 weighs 35.00kg / 77lbs. Weight of a subwoofer is an important factor when you need to move and reposition the unit often to find the optimal positioning, also known as 'Subwoofer Crawling'. Here is a comparison of how SUB3070's weight compares with the average, max and min weights in its class.
Weight
All Subwoofer Speakers
Cabinet type and Materials
ELAC SUB3070 has a
Acoustic Suspension type cabinet. Acoustic suspension aka Sealed subwoofers are preferred for music oriented systems whereas the Ported subwoofers are generally accepted to be more suitable for home theatre systems.
What's in the Box of ELAC SUB3070?
Here are the items that are included inside the box of SUB3070:
- Powered subwoofer
- AC power cord
- 2 Steel bottom plates
- 4 Spikes
- 4 Locking-knobs
- 4 Protective discs
- Operating Instructions
Recommended Accessories
Here is a list of accessories that we think you may need for the ELAC SUB3070.
Warranty
1 Year of parts warranty and 1 Year of labor warranty is generally provided by the manufacturer.
| General |
| Brand | ELAC |
| Full Model Name | ELAC SUB3070 |
| Type | Powered Subwoofer |
| Release Date | 2018 |
| Frequency Response | 18-180 Hz |
| Enclosure Type | Sealed |
| Enclosure | Acoustic Suspension |
| Firing Direction | Side |
Amplifier & Driver |
| Power (RMS) | 1200 watts |
| Woofer | 12-inch Aluminum |
| Controls & Connections |
| Low-pass Crossover | 40-150 Hz |
| Phase Control | Yes |
| Wireless | Yes |
| Line-level Inputs | Stereo RCA/LFE |
| Speaker-level Inputs | Yes |
| Speaker-level Outputs | No |
Physical |
| Dimensions (HxWxD) | 17-1/8" x 20-7/16" x 18-3/4" (435.0 x 520.0 x 477.0mm) |
| Weight | 35 kg (77 lbs) |
| Mounting Bracket | No |
| Parts Warranty | 1 Year |
| Labor Warranty | 1 Year |
