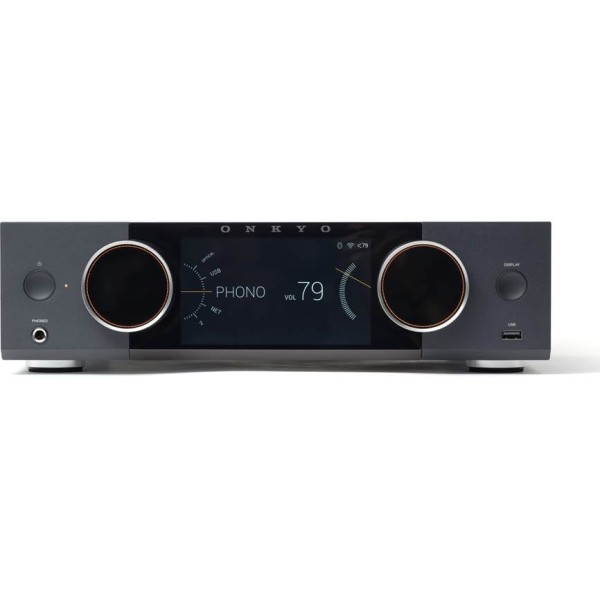

The Muse Y-50 is an Streaming Integrated Amplifier by Onkyo that delivers . Minimum impedance of 4 ohms makes the Muse Y-50 compatible with a wide range of loudspeakers. Thanks to its built-in DAC, you can play digital sources directly without the need for an external DAC unit. Onkyo Muse Y-50 lets you connect your turntable via its Phono input and start listening to your vinyl collection without a hassle.
There are 4 Onkyo amplifiers in our database. Below you can see the main specs of these amps.
Onkyo Integrated Amplifier Series
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking through my links. As an Amazon Associate I earn from qualifying purchases.
Performance Specs
One of the most important factors when deciding on an integrated amplifier is its power ratings and compatibility with your speaker's impedance requirements.The Onkyo Muse Y-50 is rated at 125 watts RMS into 8-ohms. Onkyo provides this wattage at a THD (Total Harmonic Distortion) of 0.08% which is an important indicator of distortion at the given values (lower THD is better).
Here are the main highlights of its performance specs:
- 125 watts into 8-ohms (20-20k) at 0.08%
- 250 watts into 4-ohms
- 4-ohms Min Impedance (allows compatibility with a wide range of loudspeakers)
- 100dB Signal to Noise Ratio
When pairing the Onkyo Muse Y-50 with a passive Bookshelf (Stand mount) or Passive Floor Standing (Tower) speaker, you have to check if their Max Power Range is below the max wattage of the amp for the given impedance levels.
Operating your amp outside of this max range may damage the speakers.
Inputs and Outputs
Besides the performance specs of the Onkyo Muse Y-50, the next important feature set that you have to evaluate is the input and output selections that it offers.
Inputs
- Phono Input
- 1 Optical Digital Input
- 1 Coaxial Digital Input
- USB Input:
Outputs
- Yes Preamp Outputs
- 1/4 Headphone Output
Bluetooth Connectivity
Onkyo Muse Y-50 features built-in Bluetooth 5.1 for wireless music streaming from your Bluetooth-enabled devices such as Apple iPod/iPhone/iPad, Android smartphone/tablet, Windows PC, Mac computers/laptops.
Phono Input
DAC and Digital Music
The Onkyo Muse Y-50's built-in DAC allows the connection of digital sources directly, eliminating the need for an external DAC.
Onkyo Muse Y-50 External Dimensions and Weight
Onkyo Muse Y-50 has external dimensions of (H x W x D) 3-15/16 x 13-13/16 x 13-3/4 inch (100.0 x 350.8 x 349.2 mm ). The unit weighs
4.90kg / 10.8lbs.
Base Surface Area
Base surface area of an integrated amplifier may become an important decision factor when the space in your room or desk is limited.
The base area of the Onkyo Muse Y-50 is approximately 1225.0cm2 / 189.9inch2.
- Width: 350.8mm (13-13/16")
- Height: 100.0mm (3-15/16")
- Depth: 349.2mm (13-3/4")
- Weight: 4.90 kg (10.80lbs)
- Base Surface Area: ~1225.0cm2 / 189.9inch2
- Volume: ~12.3 liter / 3.2 gallon
Warranty
2 Years of parts warranty and 2 Years of labor warranty is generally provided for the Onkyo Muse Y-50 by the manufacturer.
| General |
| Brand |
Onkyo |
| Full Model Name |
Onkyo Muse Y-50 |
| Amplifier Type |
Integrated Amplifier |
| Amp Class |
Class D |
| Performance |
| Watts RMS per Channel into 8-ohms |
125 watts |
| Watts RMS per Channel into 6-ohms |
N/A |
| Watts RMS per Channel into 4-ohms |
250 watts |
| Frequency Bandwidth |
20-20k |
| THD |
0.08% |
| Minimum Impedance |
4 |
| Signal to Noise Ratio |
100 dB |
| Digital Music |
| Built-in DAC |
Yes |
| Bluetooth |
Yes |
| WiFi |
802.11 |
| Ecosystem |
| Apple AirPlay |
Yes |
| Apple AirPlay2 |
Yes |
| DTS Play-Fi |
No |
| Chromecast built-in |
Yes |
| Roon |
No |
| HEOS |
No |
| BluOS |
No |
| CONNECTIONS |
| Total Analog Inputs |
|
| Phono Input |
Yes |
| Optical Digital Inputs |
1 |
| Coaxial Digital Inputs |
1 |
| USB Input |
Yes |
| Preamp Outputs |
Yes |
| Pre-out / Main-in Loop |
No |
| Headphone Output |
1/4 |
| Removable Power Cord |
IEC 2-prong |
| PHYSICAL SPECS |
| Height |
100.0mm (3-15/16") |
| Width |
350.8mm (13-13/16") |
| Depth |
349.2mm (13-3/4") |
| Weight |
4.90 kg (10.80lbs) |
| OTHER |
| Parts Warranty |
2 Years |
| Labor Warranty |
2 Years |
