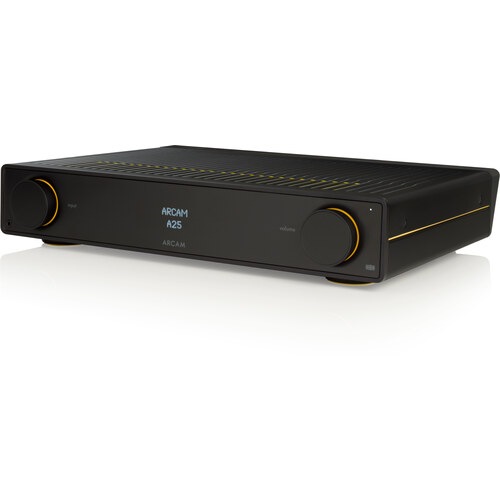

The A25 is an Integrated Amplifier with built-in DAC by Arcam that delivers 100 watts x 2 channels into 8 ohms and 165 watts x 2 channels into 4 ohms. Minimum impedance of 4 ohms makes the A25 compatible with a wide range of loudspeakers. Thanks to its built-in ESS Sabre ES9280A PRO DAC, you can play digital sources directly without the need for an external DAC unit. Arcam A25 lets you connect your turntable via its Phono input and start listening to your vinyl collection without a hassle. Arcam A25 has an MSRP of 1499$.
There are 7 Arcam amplifiers in our database. Below you can see the main specs of these amps.
Arcam Integrated Amplifier Series
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking through my links. As an Amazon Associate I earn from qualifying purchases.
Performance Specs
One of the most important factors when deciding on an integrated amplifier is its power ratings and compatibility with your speaker's impedance requirements.The Arcam A25 is rated at 100 watts RMS into 8-ohms. Arcam provides this wattage at a THD (Total Harmonic Distortion) of 0.5% which is an important indicator of distortion at the given values (lower THD is better).
Here are the main highlights of its performance specs:
- 100 watts into 8-ohms (20-20k) at 0.5%
- 165 watts into 4-ohms
- 4-ohms Min Impedance (allows compatibility with a wide range of loudspeakers)
- 106dB Signal to Noise Ratio
When pairing the Arcam A25 with a passive Bookshelf (Stand mount) or Passive Floor Standing (Tower) speaker, you have to check if their Max Power Range is below the max wattage of the amp for the given impedance levels.
Operating your amp outside of this max range may damage the speakers.
What size of room is the Arcam A25 Amplifier good for?
An essential deciding factor is the size of the room in which you intend to employ the Arcam A25 amplifier. Here, taking into account its maximum power parameters, we analyzed its applicability to various size environments:
| Listening Environment |
Suitability |
| Near-field | Poor |
| Small Room | Poor |
| Mid-size Room | Good |
| Large Room | Good |
| Very Large Room | Average |
Inputs and Outputs
Besides the performance specs of the Arcam A25, the next important feature set that you have to evaluate is the input and output selections that it offers.
Arcam A25 has total of 3 Analog inputs including 1 Phono Input (MM).
Arcam A25 Back View (Click the image for the larger version)
Inputs
- Total Number of Analog Inputs: 3
- Phono Input
- 1 Optical Digital Input
- 2 Coaxial Digital Input
- USB Input:
- USB Type-A input for software updates only
- USB Type-C input for streaming from a PC
Outputs
- Stereo RCA Preamp Outputs
- 3.5mm Headphone Output
Bluetooth Connectivity
Arcam A25 features built-in Bluetooth 5.2 for wireless music streaming from your Bluetooth-enabled devices such as Apple iPod/iPhone/iPad, Android smartphone/tablet, Windows PC, Mac computers/laptops.
Among the amps in the same price range, these are the 5 amps that have Bluetooth Connectivity:
Arcam A25 supports the following Bluetooth Codecs when used with supported devices:
Bluetooth Transmitter:Arcam A25 can also act as a Bluetooth transmitter, making it possible to stream the music from the amp to your bluetooth headphones or speakers.
Phono Input
Arcam A25 features one Phono Input which is compatible with
MM (Moving Magnet) type of phono cartridges, you can connect your turntable with MM cartridges directly to this amp without the need for a phono preamp. If you are using an MC cartridge on your turntable, you need to use a phono preamp that has MC phono stage such as the
Cambridge Duo or the
iFi ZEN Phono.
Subwoofer Output
Arcam A25 has Stereo RCA preamp outputs which can be used to connect to a powered subwoofer via an RCA cable ( as long as your sub supports this connection).
Check our
Powered Subwoofers page to find a subwoofer that will work with Arcam A25 amp and your speakers.
DAC and Digital Music
The Arcam A25's built-in DAC allows the connection of digital sources directly, eliminating the need for an external DAC. The DAC chip that is used in the A25 is the
ESS Sabre ES9280A PRO, and supports resolutions up to
32-bit, 384KHZ.
Arcam A25 External Dimensions and Weight
Arcam A25 has external dimensions of (H x W x D) 3-5/16inch x 17-1/16inch x 14-5/16inch (85.0mm x 434.0mm x 364.0mm ). The unit weighs
9.02kg / 19.8lbs.
Base Surface Area
Base surface area of an integrated amplifier may become an important decision factor when the space in your room or desk is limited.
The base area of the Arcam A25 is approximately 1579.8cm2 / 244.9inch2.
- Width: 434.0mm (17-1/16")
- Height: 85.0mm (3-5/16")
- Depth: 364.0mm (14-5/16")
- Weight: 9.02 kg (19.84lbs)
- Base Surface Area: ~1579.8cm2 / 244.9inch2
- Volume: ~13.4 liter / 3.5 gallon
Available colors
Arcam A25 is available in Black color options.
What's in the Box of Arcam A25?
Here are the items that are included inside the box of A25:
Integrated amplifier68-inch AC power cordRemote control2 -inchAAA-inch batteriesQuick Start GuideImportant Safety Instructions
Official Brochure
Here is a link to download the official brochure for the Arcam A25 Integrated Amplifier:
Official Brochure for Arcam A25
Official Product Page
Official manufacturer's product page for the Arcam A25 Integrated Amplifier can be found below:
Official Product Page for Arcam A25
Warranty
5 Years of parts warranty and 5 Years of labor warranty is generally provided for the Arcam A25 by the manufacturer.
Arcam A25 Lifestyle
| General |
| Brand |
Arcam |
| Full Model Name |
Arcam A25 |
| Amplifier Type |
Integrated Amplifier |
| Amp Class |
Class G |
| Performance |
| Watts RMS per Channel into 8-ohms |
100 watts |
| Watts RMS per Channel into 6-ohms |
N/A |
| Watts RMS per Channel into 4-ohms |
165 watts |
| Frequency Bandwidth |
20-20k |
| THD |
0.5% |
| Minimum Impedance |
4 |
| Signal to Noise Ratio |
106 dB |
| Digital Music |
| Built-in DAC |
Yes |
| DAC Specs |
ESS Sabre ES9280A PRO |
| Bluetooth |
Yes |
| WiFi |
N/A |
| Ecosystem |
| Apple AirPlay |
No |
| Apple AirPlay2 |
No |
| DTS Play-Fi |
No |
| Chromecast built-in |
No |
| Roon |
No |
| HEOS |
No |
| BluOS |
No |
| CONNECTIONS |
| Total Analog Inputs |
3 |
| Phono Input |
Yes |
| Optical Digital Inputs |
1 |
| Coaxial Digital Inputs |
2 |
| USB Input |
Yes |
| USB Type |
USB Type-A input for software updates only, USB Type-C input for streaming from a PC |
| Preamp Outputs |
Stereo RCA |
| Pre-out / Main-in Loop |
No |
| Headphone Output |
3.5mm |
| Subwoofer Output |
Yes |
| Removable Power Cord |
IEC 2-prong |
| PHYSICAL SPECS |
| Height |
85.0mm (3-5/16") |
| Width |
434.0mm (17-1/16") |
| Depth |
364.0mm (14-5/16") |
| Weight |
9.02 kg (19.84lbs) |
| Available Colors |
Black |
| OTHER |
| Parts Warranty |
5 Years |
| Labor Warranty |
5 Years |
