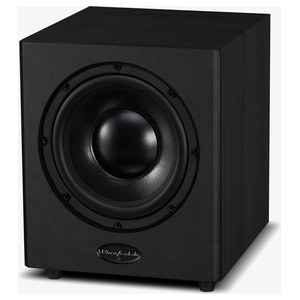

WH S8E is a Ported type Powered Subwoofer by Wharfedale with a frequency range of 40-200 Hz. It was released in 2023. It features 1 x 8" Paper composite Woofer, and powered by a Class D 70 watts amplifier.
The vented 200 mm model of the WH range: 70 W, 35 Hz at -6dB, and the widest crossover range of the four.
WH S8E is a member of Wharfedale's WH series of Powered subwoofers. Below you can see the main specs of these subwoofers as well as review and comparison links.
See all 4 Wharfedale WH models compared »
Wharfedale WH Series Subwoofers
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking through my links. As an Amazon Associate I earn from qualifying purchases.
Frequency Response
Wharfedale WH-S8E has a Frequency response range of 40-200 Hz at ±3dB.
Here we have a comparison of how WH S8E's Low and High frequency values compare with the average, max and min Low and High frequency values in its class.
Low Frequency
Powered Subwoofers
High Frequency
Subwoofer Speakers
Low-Pass CrossoverWharfedale WH-S8E has a variable Low-pass filter (LFP) which lets you choose a frequency level between 40-150 Hz in order to block any frequencies above that point from reaching the amplifier.
Inputs and Outputs
- PreampLevel Inputs: Stereo RCA/LFE
Wharfedale WH-S8E External Dimensions and Weight
Wharfedale WH-S8E has external dimensions of (Height x Width x Depth) 13 x 10-9/16 x 12-7/8inch (330.0 x 268.0 x 327.0mm ).
Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base area of Wharfedale WH-S8E is approximately 876.4cm2 / 135.8inch2.
WeightThe Wharfedale WH-S8E weighs 8.20kg / 18lbs. Weight of a subwoofer is an important factor when you need to move and reposition the unit often to find the optimal positioning, also known as 'Subwoofer Crawling'. Here is a comparison of how WH S8E's weight compares with the average, max and min weights in its class.
Weight
All Subwoofer Speakers
Cabinet type and Materials
Wharfedale WH-S8E has a
Bass Reflex type cabinet. Ported subwoofers are generally accepted to be more suitable for home theatre systems whereas the sealed designs are preferred for music oriented systems.
Does the Wharfedale WH-S8E come with a Grille?
WH S8E comes with grilles. The purpose of the grille is to protect the delicate driver elements from external impacts while still allowing the sound to pass as clearly as possible.
Recommended Accessories
Here is a list of accessories that we think you may need for the Wharfedale WH-S8E.
Official Product Page
Official manufacturer's product page for the Wharfedale WH-S8E speaker can be found below:
Official Product Page for Wharfedale WH-S8E
Warranty
5 Years of parts warranty and 5 Years of labor warranty is generally provided by the manufacturer.
| General |
| Brand | Wharfedale |
| Full Model Name | Wharfedale WH-S8E |
| Type | Powered Subwoofer |
| Release Date | 2023 |
| Frequency Response | 40-200 Hz |
| Enclosure Type | Ported |
| Enclosure | Bass Reflex |
| Firing Direction | Front |
| Max SPL | 110 dB |
Amplifier & Driver |
| Power (RMS) | 70 watts |
| Power (Peak) | 150 watts |
| Amplifier Type | Class D |
| Woofer | 8-inch Paper composite |
| Controls & Connections |
| Low-pass Crossover | 40-150 Hz |
| Phase Control | Yes |
| Line-level Inputs | Stereo RCA/LFE |
Physical |
| Dimensions (HxWxD) | 13" x 10-9/16" x 12-7/8" (330.0 x 268.0 x 327.0mm) |
| Weight | 8.20kg ( 18.08 lbs) |
| Grille | Yes |
| Parts Warranty | 5 Years |
| Labor Warranty | 5 Years |
