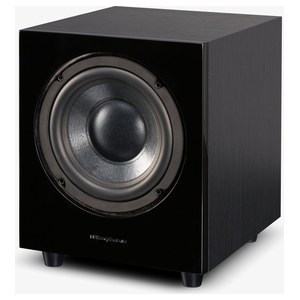

WH D8 is a Sealed type Powered Subwoofer by Wharfedale with a frequency range of 40-120 Hz. It was released in 2019. It features 1 x 8" Paper composite Woofer, and powered by a Class D 70 watts amplifier.
The small sealed WH: a 200 mm long-throw driver on 70 W, for a room where a ported subwoofer would be too much.
WH D8 is a member of Wharfedale's WH series of Powered subwoofers. Below you can see the main specs of these subwoofers as well as review and comparison links.
See all 4 Wharfedale WH models compared »
Wharfedale WH Series Subwoofers
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking through my links. As an Amazon Associate I earn from qualifying purchases.
Frequency Response
Wharfedale WH-D8 has a Frequency response range of 40-120 Hz at ±3dB.
Here we have a comparison of how WH D8's Low and High frequency values compare with the average, max and min Low and High frequency values in its class.
Low Frequency
Powered Subwoofers
High Frequency
Subwoofer Speakers
Among all subwoofers in our database with a max MSRP price of 500$, these are the 5 Powered Subwoofer models that can reach deeper bass levels than the Wharfedale WH-D8's 40Hz:
Low-Pass CrossoverWharfedale WH-D8 has a variable Low-pass filter (LFP) which lets you choose a frequency level between 40-150 Hz in order to block any frequencies above that point from reaching the amplifier.
Inputs and Outputs
- PreampLevel Inputs: Stereo RCA/LFE
Wharfedale WH-D8 External Dimensions and Weight
Wharfedale WH-D8 has external dimensions of (Height x Width x Depth) 12-15/16 x 10-9/16 x 12-11/16inch (328.0 x 268.0 x 322.0mm ).
Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base area of Wharfedale WH-D8 is approximately 863.0cm2 / 133.8inch2.
WeightThe Wharfedale WH-D8 weighs 7.50kg / 16.5lbs. Weight of a subwoofer is an important factor when you need to move and reposition the unit often to find the optimal positioning, also known as 'Subwoofer Crawling'. Here is a comparison of how WH D8's weight compares with the average, max and min weights in its class.
Weight
All Subwoofer Speakers
Weight
Subwoofer Speakers under $500
Cabinet type and Materials
Wharfedale WH-D8 has a
Infinite Baffle type cabinet.
Does the Wharfedale WH-D8 come with a Grille?
WH D8 comes with grilles. The purpose of the grille is to protect the delicate driver elements from external impacts while still allowing the sound to pass as clearly as possible.
Recommended Accessories
Here is a list of accessories that we think you may need for the Wharfedale WH-D8.
Official Product Page
Official manufacturer's product page for the Wharfedale WH-D8 speaker can be found below:
Official Product Page for Wharfedale WH-D8
Warranty
5 Years of parts warranty and 5 Years of labor warranty is generally provided by the manufacturer.
| General |
| Brand | Wharfedale |
| Full Model Name | Wharfedale WH-D8 |
| Type | Powered Subwoofer |
| Release Date | 2019 |
| Frequency Response | 40-120 Hz |
| Enclosure Type | Sealed |
| Enclosure | Infinite Baffle |
| Firing Direction | Front |
| Max SPL | 105 dB |
Amplifier & Driver |
| Power (RMS) | 70 watts |
| Power (Peak) | 150 watts |
| Amplifier Type | Class D |
| Woofer | 8-inch Paper composite |
| Controls & Connections |
| Low-pass Crossover | 40-150 Hz |
| Phase Control | Yes |
| Line-level Inputs | Stereo RCA/LFE |
Physical |
| Dimensions (HxWxD) | 12-15/16" x 10-9/16" x 12-11/16" (328.0 x 268.0 x 322.0mm) |
| Weight | 7.50kg ( 16.53 lbs) |
| Grille | Yes |
| Parts Warranty | 5 Years |
| Labor Warranty | 5 Years |
