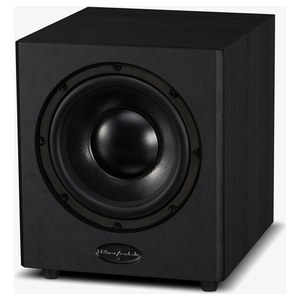

WH S10E is a Sealed type Powered Subwoofer by Wharfedale with a frequency range of 35-120 Hz. It was released in 2023. It features 1 x 10" Paper composite Woofer, and powered by a Class D 150 watts amplifier.
Closed-box 250 mm subwoofer on 150 W, 115 dB peak, with phase inversion and an adjustable low-pass slope.
WH S10E is a member of Wharfedale's WH series of Powered subwoofers. Below you can see the main specs of these subwoofers as well as review and comparison links.
See all 4 Wharfedale WH models compared »
Wharfedale WH Series Subwoofers
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking through my links. As an Amazon Associate I earn from qualifying purchases.
Frequency Response
Wharfedale WH-S10E has a Frequency response range of 35-120 Hz at ±3dB.
Here we have a comparison of how WH S10E's Low and High frequency values compare with the average, max and min Low and High frequency values in its class.
Low Frequency
Powered Subwoofers
High Frequency
Subwoofer Speakers
Low-Pass CrossoverWharfedale WH-S10E has a variable Low-pass filter (LFP) which lets you choose a frequency level between 40-150 Hz in order to block any frequencies above that point from reaching the amplifier.
Inputs and Outputs
- PreampLevel Inputs: Stereo RCA/LFE
Wharfedale WH-S10E External Dimensions and Weight
Wharfedale WH-S10E has external dimensions of (Height x Width x Depth) 15-1/2 x 13-1/8 x 15-5/8inch (394.0 x 333.0 x 397.0mm ).
Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base area of Wharfedale WH-S10E is approximately 1322.0cm2 / 204.9inch2.
WeightThe Wharfedale WH-S10E weighs 14.40kg / 31.7lbs. Weight of a subwoofer is an important factor when you need to move and reposition the unit often to find the optimal positioning, also known as 'Subwoofer Crawling'. Here is a comparison of how WH S10E's weight compares with the average, max and min weights in its class.
Weight
All Subwoofer Speakers
Cabinet type and Materials
Wharfedale WH-S10E has a
Acoustic Suspension type cabinet. Acoustic suspension aka Sealed subwoofers are preferred for music oriented systems whereas the Ported subwoofers are generally accepted to be more suitable for home theatre systems.
Does the Wharfedale WH-S10E come with a Grille?
WH S10E comes with grilles. The purpose of the grille is to protect the delicate driver elements from external impacts while still allowing the sound to pass as clearly as possible.
Recommended Accessories
Here is a list of accessories that we think you may need for the Wharfedale WH-S10E.
Official Product Page
Official manufacturer's product page for the Wharfedale WH-S10E speaker can be found below:
Official Product Page for Wharfedale WH-S10E
Warranty
5 Years of parts warranty and 5 Years of labor warranty is generally provided by the manufacturer.
| General |
| Brand | Wharfedale |
| Full Model Name | Wharfedale WH-S10E |
| Type | Powered Subwoofer |
| Release Date | 2023 |
| Frequency Response | 35-120 Hz |
| Enclosure Type | Sealed |
| Enclosure | Acoustic Suspension |
| Firing Direction | Front |
| Max SPL | 115 dB |
Amplifier & Driver |
| Power (RMS) | 150 watts |
| Power (Peak) | 300 watts |
| Amplifier Type | Class D |
| Woofer | 10-inch Paper composite |
| Controls & Connections |
| Low-pass Crossover | 40-150 Hz |
| Phase Control | Yes |
| Line-level Inputs | Stereo RCA/LFE |
Physical |
| Dimensions (HxWxD) | 15-1/2" x 13-1/8" x 15-5/8" (394.0 x 333.0 x 397.0mm) |
| Weight | 14.40kg ( 31.75 lbs) |
| Grille | Yes |
| Parts Warranty | 5 Years |
| Labor Warranty | 5 Years |
