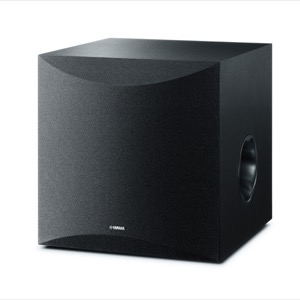

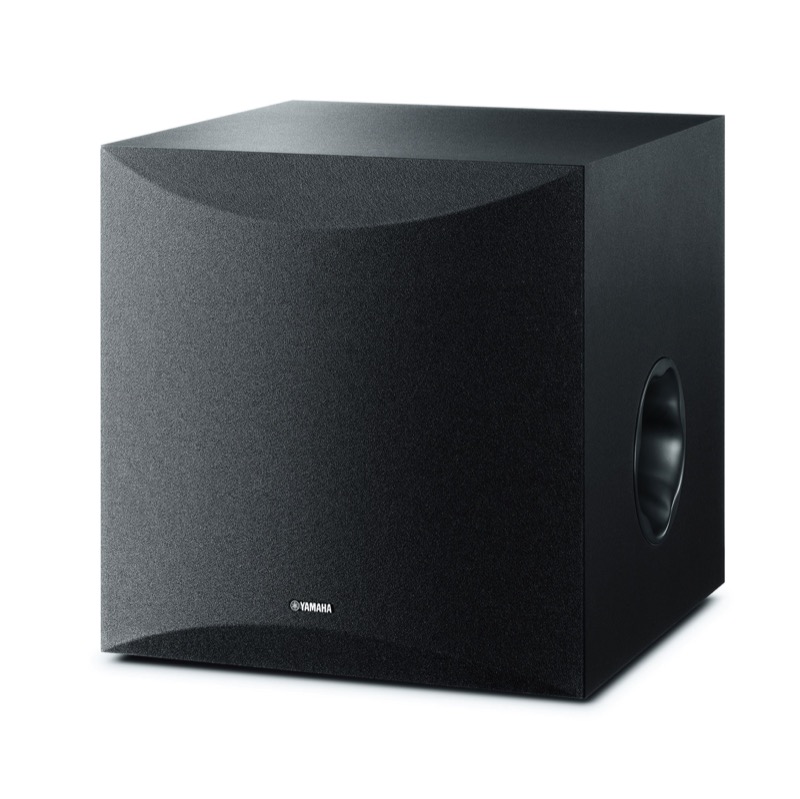

NS-SW100 is a Ported type Powered Subwoofer by Yamaha with a frequency range of 25-180 Hz. It was released in 2023. It features 1 x 10" Cone Woofer, and powered by a Advanced YST II 50 watts amplifier.
A 10 inch cone driver on a 50 W amplifier (100 W dynamic power), 25–180 Hz. Uses Yamaha's Advanced YST II servo bass technology and a Twisted Flare Port, which flares the port mouth to cut air turbulence and port noise at high levels.
NS-SW100 is a member of Yamaha's NS-SW series of Powered subwoofers. Below you can see the main specs of these subwoofers as well as review and comparison links.
Yamaha NS-SW Series Subwoofers
**This post contains affiliate links, and we will be compensated if you make a purchase after clicking through our links. As an Amazon Associate I earn from qualifying purchases.
Frequency Response
Where should the crossover go? → · What will your room do to this bass? →
Yamaha NS-SW100 has a Frequency response range of 25-180 Hz at ±3dB. With the help of its 1 x 10-inch driver and 50 watts RMS (100 watts MAX) amplifier, the NS-SW100 can go as low as 25 Hz which doesn't quite offer full range sound (20Hz-2kHZ) but it gets really close.
Here we have a comparison of how NS-SW100's Low and High frequency values compare with the average, max and min Low and High frequency values in its class.
Low Frequency
Powered Subwoofers
High Frequency
Subwoofer Speakers
Inputs and Outputs
- PreampLevel Inputs: Stereo RCA line in
Yamaha NS-SW100 External Dimensions and Weight
Yamaha NS-SW100 has external dimensions of (Height x Width x Depth) 13.875 x 13.875 x 16.125inch (352.4 x 352.4 x 409.6mm ).
Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base area of Yamaha NS-SW100 is approximately 1443.4cm2 / 223.7inch2.
Find speakers that fit your shelf or alcove →
WeightThe Yamaha NS-SW100 weighs 12.02kg / 26.4lbs. Weight of a subwoofer is an important factor when you need to move and reposition the unit often to find the optimal positioning, also known as 'Subwoofer Crawling'. Here is a comparison of how NS-SW100's weight compares with the average, max and min weights in its class.
Weight
All Subwoofer Speakers
Weight
Subwoofer Speakers under $300
Cabinet type and Materials
Yamaha NS-SW100 has a
Bass Reflex type cabinet. Ported subwoofers are generally accepted to be more suitable for home theatre systems whereas the sealed designs are preferred for music oriented systems.
Does the Yamaha NS-SW100 come with a Grille?
NS-SW100 comes with grilles. The purpose of the grille is to protect the delicate driver elements from external impacts while still allowing the sound to pass as clearly as possible.
Recommended Accessories
Here is a list of accessories that we think you may need for the Yamaha NS-SW100.
Official Product Page
Official manufacturer's product page for the Yamaha NS-SW100 speaker can be found below:
Official Product Page for Yamaha NS-SW100
| General |
| Brand | Yamaha |
| Full Model Name | Yamaha NS-SW100 |
| Type | Powered Subwoofer |
| Release Date | 2023 |
| Frequency Response | 25-180 Hz |
| Enclosure Type | Ported |
| Enclosure | Bass Reflex |
| Firing Direction | Front |
Amplifier & Driver |
| Power (RMS) | 50 watts |
| Power (Peak) | 100 watts |
| Amplifier Type | Advanced YST II |
| Woofer | 10-inch Cone |
| Controls & Connections |
| Phase Control | Yes |
| Line-level Inputs | Stereo RCA line in |
Physical |
| Dimensions (HxWxD) | 13.875" x 13.875" x 16.125" (352.4 x 352.4 x 409.6mm) |
| Weight | 12.02 kg (26.5 lbs) |
| Grille | Yes |
