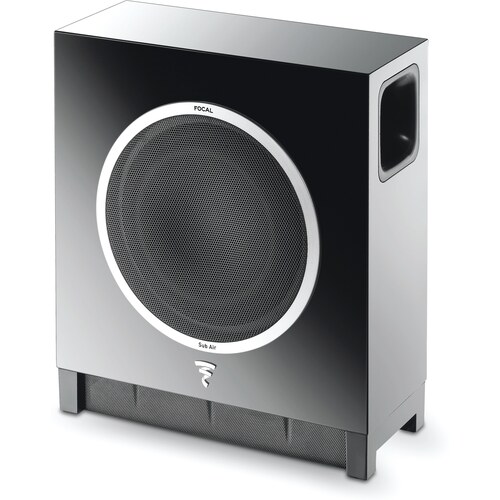

Sub Air is a Ported type Powered Subwoofer by Focal with a frequency range of 40-200 Hz. It was released in 2013. It features 1 x 8" Cellulose Pulp Woofer, and powered by a 110 watts amplifier.
Frequency Response
Where should the crossover go? → · What will your room do to this bass? →
Focal Sub Air has a Frequency response range of 40-200 Hz.
Here we have a comparison of how Sub Air's Low and High frequency values compare with the average, max and min Low and High frequency values in its class.
Low Frequency
Powered Subwoofers
High Frequency
Subwoofer Speakers
Among all subwoofers in our database priced under $1,500, these are the 5 Powered Subwoofer models that can reach deeper bass levels than the Focal Sub Air's 40Hz:
Low-Pass CrossoverFocal Sub Air has a variable Low-pass filter (LFP) which lets you choose a frequency level between 50-200 Hz in order to block any frequencies above that point from reaching the amplifier.
Inputs and Outputs
- PreampLevel Inputs: Stereo RCA/LFE
- SpeakerLevel Inputs: No
- SpeakerLevel Outputs: No
- Wireless: No
Wireless Connection
Focal Sub Air lets you make a wireless connection to your system without the need for an external adapter which is great way to minimize the cables running around.
Focal Sub Air External Dimensions and Weight
Focal Sub Air has external dimensions of (Height x Width x Depth) 16-1/8 x 14-1/4 x 6-3/8inch (410.0 x 362.0 x 162.0mm ).
Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base area of Focal Sub Air is approximately 586.4cm2 / 90.9inch2.
To get a better perspective on the real life size of Focal Sub Air, let's compare it with a standard size Compact Disc which has a diameter of 4.7inch (120mm).
Focal Sub Air Speaker Size Compared to a Compact Disc
Here we place the Focal Sub Air virtually next to a standard width amplifier and turntable on a media center to get a better idea about the size.
Focal Sub Air Subwoofer next to a Media Stand
Find speakers that fit your shelf or alcove →
WeightThe Focal Sub Air weighs 7.73kg / 17lbs. Weight of a subwoofer is an important factor when you need to move and reposition the unit often to find the optimal positioning, also known as 'Subwoofer Crawling'. Here is a comparison of how Sub Air's weight compares with the average, max and min weights in its class.
Weight
All Subwoofer Speakers
Weight
Subwoofer Speakers under $1,500
Cabinet type and Materials
Focal Sub Air has a
Bass Reflex type cabinet. Ported subwoofers are generally accepted to be more suitable for home theatre systems whereas the sealed designs are preferred for music oriented systems.
Port Position
Focal Sub Air is a front-firing port speaker, which gives you more flexibility compared to rear firing speakers when you need to place it close against a wall or other surfaces.
What's in the Box of Focal Sub Air?
Here are the items that are included inside the box of Sub Air:
- Wireless powered subwoofer
- Wireless transmitter
- AC power adapter (attached 6-feet DC cord)
- AC power plug insert (2-prong)
- 8-feet AC power cord
- 4 Rubber feet
- 2 Brackets
- Four M4 x 10mm machine screws
- Four M4 x 17mm machine screws
- 4 Wood-screws
- 4 Wall-anchors
- User Manual
Recommended Accessories
Here is a list of accessories that we think you may need for the Focal Sub Air.
Warranty
3 Years of parts warranty and 3 Years of labor warranty is generally provided by the manufacturer.
| General |
| Brand | Focal |
| Full Model Name | Focal Sub Air |
| Type | Powered Subwoofer |
| Release Date | 2013 |
| Frequency Response | 40-200 Hz |
| Enclosure Type | Ported |
| Enclosure | Bass Reflex |
| Firing Direction | Front |
| Port Position | front |
Amplifier & Driver |
| Power (RMS) | 110 watts |
| Woofer | 8-inch Cellulose Pulp |
| Controls & Connections |
| Low-pass Crossover | 50-200 Hz |
| Phase Control | Yes |
| Wireless | Yes |
| Line-level Inputs | Stereo RCA/LFE |
| Speaker-level Inputs | No |
| Speaker-level Outputs | No |
Physical |
| Dimensions (HxWxD) | 16-1/8" x 14-1/4" x 6-3/8" (410.0 x 362.0 x 162.0mm) |
| Weight | 7.73 kg (17 lbs) |
| Mounting Bracket | No |
| Parts Warranty | 3 Years |
| Labor Warranty | 3 Years |
