JBL Studio 6 66LCR is a 2-way Passive In-wall In-wall speaker by JBL. It was released in 2021. It features a 1" Horn-Loaded Tweeter and 2 x 6.5" PolyPlas Woofer. The speaker has a frequency range of 45-20kHz and a sensitivity of 94 dB. JBL Studio 6 66LCR has an MSRP of 1400$ per pair.
Room Size Suitability
The size of the room where you plan to use the JBL Studio 6 66LCR is a crucial factor in your decision. We have assessed its suitability for various room sizes based on its dimensions and maximum power output:
| Listening Environment* |
Suitability |
| Near-field | Poor |
| Small Room | Average |
| Mid-size Room | Good |
| Large Room | Average |
| Very Large Room | Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2, Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: > 400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual listening experience changes depending on floor height, room shape, surface materials, listening position, speaker locations, etc.)
JBL's Studio Series of Loudspeakers
Studio 6 66LCR is a member of JBL's Studio series of Passive speakers. The Studio range are JBL's mid-tier home-theatre speakers with horn-loaded tweeters. Below you can see the main specs of these speakers.
See all 10 JBL Studio models compared »
JBL Studio Series Speakers
Frequency Response of the JBL Studio 6 66LCR Speaker
JBL Studio 6 66LCR has a Frequency response range of 45-20kHz and Power Range of 10-150 watts. With a minimum frequency of 45 Hz, Studio 6 66LCR delivers moderate bass depth so depending on your use case, you might want to consider adding a subwoofer to your system.
Here we have a comparison of how Studio 6 66LCR's Low frequency value compares with the average, max and min Low frequency values in its class.
Low Frequency
In-wall Speakers
Thinking about a subwoofer for the JBL Studio 6 66LCR?
Impedance and Sensitivity
JBL Studio 6 66LCR's nominal impedance level is
6 ohms and has a sensitivity of
94 dB.
Sensitivity
In-wall Speakers
Nominal Impedance of the 6 Ohms makes the JBL Studio 6 66LCR a relatively difficult to drive speaker compared to more frequently found 8 ohms speakers from nominal Impedance perspective.
Sensitivity
94dB of the JBL Studio 6 66LCR is considered a high sensitivity compared to average stereo speaker which makes Studio 6 66LCR an easy to drive from Sensitivity perspective. If you are planning to power your speaker with a Tube amp which are generally very low power, the JBL Studio 6 66LCR will be a good choice. Work out how loud the JBL Studio 6 66LCR plays in your room →
Running more than one pair from a single amplifier? Check the load it would present →
What amplifier does the JBL Studio 6 66LCR need?
At normal listening levels in a medium room, about
4.0–63 W
per channel into 6 ohms.
Set your own conditions and we will rank every amplifier we cover.
Prefer to browse? Integrated amplifiers under $1,500, or every amplifier we cover.
Input Type
Studio 6 66LCR features Spring posts type connectors. Bi-amping and Bi-wiring are not possible.
Work out what gauge speaker cable this run needs →
JBL Studio 6 66LCR External Dimensions and Weight
JBL Studio 6 66LCR has external dimensions of (Height x Width x Depth) 17.4375-inch x 7.1250-inch x 3.7500-inch (443.0 x 181.0 x 96.0mm ).
Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base area of JBL Studio 6 66LCR is approximately 173.8cm2 / 26.9inch2.

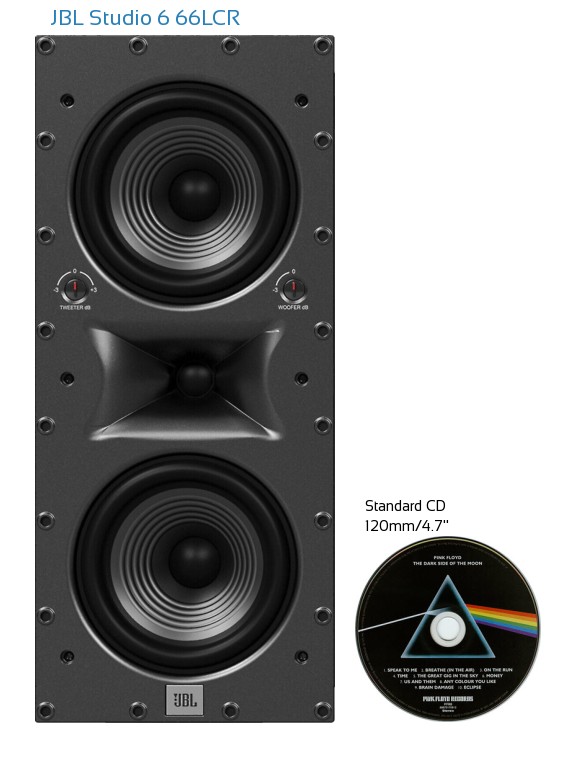

To get a better perspective on the real life size of JBL Studio 6 66LCR, let's compare it with a standard size Compact Disc which has a diameter of 4.7inch (120mm).
JBL Studio 6 66LCR Speaker Size Compared to a Compact Disc
Find speakers that fit your shelf or alcove →
Cabinet type and Materials
JBL Studio 6 66LCR has a
In-wall type cabinet.
What's in the Box of JBL Studio 6 66LCR?
Here are the items that are included inside the box of Studio 6 66LCR:
- In-wall loudspeaker
- Grille
- Cut-Out Template
- Quick Start Guide
Recommended Accessories
Here is a list of accessories that we think you may need for the JBL Studio 6 66LCR.
Warranty
5 Years of parts warranty and 5 Years of labor warranty is generally provided by the manufacturer.
