JBL Studio 630 is a 2-way Passive Bass Reflex Bookshelf speaker by JBL. It was released in 2021. It features a 1" High Frequency Compression Tweeter and 1 x 6.25" PolyPlas Woofer. The speaker has a frequency range of 45-40k Hz and a sensitivity of 85 dB. JBL Studio 630 has an MSRP of 700$ per pair.
Room Size Suitability
The size of the room where you plan to use the JBL Studio 630 is a crucial factor in your decision. We have assessed its suitability for various room sizes based on its dimensions and maximum power output:
| Listening Environment* |
Suitability |
| Near-field | Poor |
| Small Room | Average |
| Mid-size Room | Good |
| Large Room | Average |
| Very Large Room | Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2, Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: > 400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual listening experience changes depending on floor height, room shape, surface materials, listening position, speaker locations, etc.)
JBL's Studio Series of Loudspeakers
Studio 630 is a member of JBL's Studio series of Passive speakers. The Studio range are JBL's mid-tier home-theatre speakers with horn-loaded tweeters. Below you can see the main specs of these speakers.
See all 10 JBL Studio models compared »
JBL Studio Series Speakers
Frequency Response of the JBL Studio 630 Speaker
JBL Studio 630 has a Frequency response range of 45-40k Hz and Power Range of up to 150 watts. With a minimum frequency of 45 Hz, Studio 630 delivers moderate bass depth so depending on your use case, you might want to consider adding a subwoofer to your system.
Here we have a comparison of how Studio 630's Low frequency value compares with the average, max and min Low frequency values in its class.
Low Frequency
Bookshelf Speakers
Thinking about a subwoofer for the JBL Studio 630?
Impedance and Sensitivity
JBL Studio 630's nominal impedance level is
6 ohms and has a sensitivity of
85 dB.
Sensitivity
Bookshelf Speakers
Nominal Impedance of the 6 Ohms makes the JBL Studio 630 a relatively difficult to drive speaker compared to more frequently found 8 ohms speakers from nominal Impedance perspective.
Sensitivity
With a sensitivity level of only 85 dB, JBL Studio 630 is a difficult to drive speaker from Sensitivity perspective, make sure to choose an amplifier with a high output if you like listening to your music at high volume levels. You may especially have a hard time using Tube amplifiers which are traditionally very low power compared to Class A/B or Class D amps. Work out how loud the JBL Studio 630 plays in your room →
Running more than one pair from a single amplifier? Check the load it would present →
What amplifier does the JBL Studio 630 need?
At normal listening levels in a medium room, about
32–150 W
per channel into 6 ohms.
Set your own conditions and we will rank every amplifier we cover.
Prefer to browse? Integrated amplifiers under $750, or every amplifier we cover.
Input Type
Studio 630 features 5-Way post type connectors. Bi-amping and Bi-wiring are not possible.
Work out what gauge speaker cable this run needs →
JBL Studio 630 External Dimensions and Weight
JBL Studio 630 has external dimensions of (Height x Width x Depth) 14.6 x 9-1/16inch x 11-1/16inch (372.0 x 230.0 x 280.0mm ).
Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base area of JBL Studio 630 is approximately 644.0cm2 / 99.8inch2.

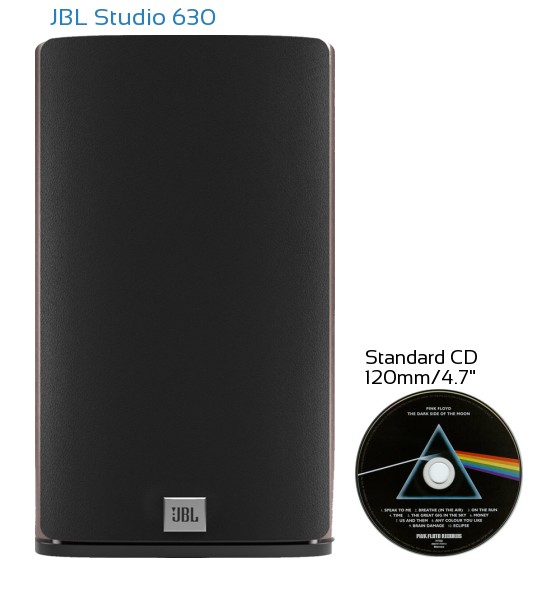

To get a better perspective on the real life size of JBL Studio 630, let's compare it with a standard size Compact Disc which has a diameter of 4.7inch (120mm).
JBL Studio 630 Speaker Size Compared to a Compact Disc

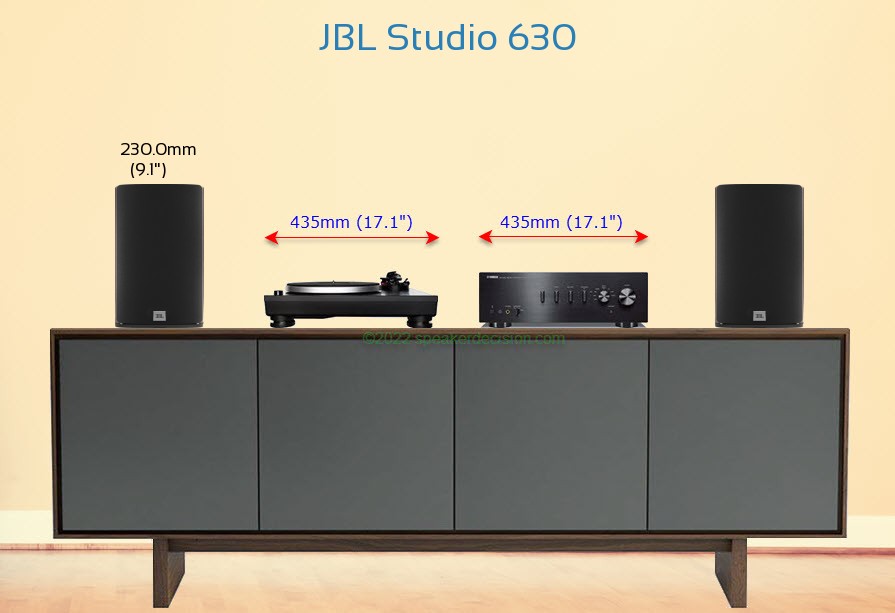

Here we place the JBL Studio 630 virtually next to a standard width amplifier and turntable on a BDI Octave Media Cabinet to get a better idea about the size.
JBL Studio 630 Speaker next to an amplifier and turntable
Find speakers that fit your shelf or alcove → · Work out where they should sit in the room →
WeightThe JBL Studio 630 weighs 9.02kg / 19.8lbs per piece. Here is a comparison of how Studio 630's weight compares with the average, max and min weights in its class.
Weight
All Bookshelf Speakers
Weight
Bookshelf Speakers under $750
Cabinet type and Materials
JBL Studio 630 has a
Bass Reflex type cabinet and a MDF/Wood veneer finish. Bass Reflex type loudspeakers (aka Ported, Vented or Reflex Port) have enclosures that uses a port, hole or vent cut into the cabinet. Ported designs are generally more efficient than the Sealed designs.
Speaker Feet
JBL Studio 630 comes with 8 x Feet Pads which you can use to secure your loudspeaker on the surface that you are putting on.
It is always recommended to use some kind of feet under all types of speakers. Besides limiting the movement of the speakers, it also compensates for non-flat surfaces and limits the contact surface area of the speaker. Rubber based feet also help isolating the vibrations within certain frequency ranges.
Port Position
JBL Studio 630 is a rear-firing port speaker so you have to make sure you leave enough space between the back of the speaker and wall or bookshelf so that it has room to breathe.
Available colors
JBL Studio 630 is available in Wood and Dark Wood.
Wall Mounting
Studio 630 doesn't sport any built-in mounting bracket, so you need an external structure to mount it on walls.
Does the JBL Studio 630 come with a Grille?
Studio 630 comes with grilles. The purpose of the grille is to protect the delicate driver elements from external impacts while still allowing the sound to pass as clearly as possible.
What's in the Box of JBL Studio 630?
Here are the items that are included inside the box of Studio 630:
- 2 x JBL Studio 630 Bookshelf Loudspeaker
- 1 x Owner’s Manual
- 1 x Warranty Card
- 8 x Feet Pads
Recommended Accessories
Here is a list of accessories that we think you may need for the JBL Studio 630.
- Speaker Cable and Connectors
- Vibration Isolators: IsoAcoustics isolators are our favorite isolators but you may find more affordable options too.
- Acoustic Panels and Treatments: Your room is as important as your stereo equipment so acoustic treatments goes a long way in improving the overall performance.
- Speaker Stands: Stands bring your bookshelf speakers to ideal height (rule of thumb is to have the tweeter level with your ear in your listening position), helps stability and acoustical isolation.
User's Manual
For more information about how to setup, use and maintain the JBL Studio 630, use the direct link below to download the official manual document:
Download User Manual for JBL Studio 630
Official Brochure
Here is a link to download the official brochure for the JBL Studio 630 speaker:
Official Brochure for JBL Studio 630
Official Product Page
Official manufacturer's product page for the JBL Studio 630 speaker can be found below:
Official Product Page for JBL Studio 630
Warranty
5 Years of parts warranty and 5 Years of labor warranty is generally provided by the manufacturer.
