In this review, we will be comparing Studio 630 and HDI-1600, two Passive Bookshelf speakers by JBL.
Let's have a brief look at the main features
of JBL Studio 630 and JBL HDI-1600 first before getting into our more
detailed comparison.
| Key Specs | JBL Studio 630 | JBL HDI-1600 |
|---|
| Brand | JBL
United States · founded 1946 | JBL
United States · founded 1946 |
|---|
| Design | 2-way | 2-way |
|---|
| Tweeter | 1" High Frequency Compression | 1" Horn-Loaded |
|---|
| Woofer | 6.25" PolyPlas | 6.5" Aluminum |
|---|
| Frequency response | 45-40k Hz | 40-30k Hz |
|---|
| Sensitivity | 85 dB | 85 dB |
|---|
| Impedance | 6 ohms | 4 ohms |
|---|
| Power range | up to 150 watts | 15-200 watts |
|---|
| Weight | 9.02kg / 19.8lbs | 9.98kg / 22lbs |
|---|
| Dimensions (H x W x D) | 14.6" x 9-1/16" x 11-1/16"
372.0 x 230.0 x 280.0mm | 15-1/16" x 9-1/8" x 11-3/8"
383.0 x 232.0 x 289.0mm |
|---|
What size room are the JBL Studio 630 and JBL HDI-1600 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
JBL Studio 630 |
JBL HDI-1600 |
| Near-field |
Poor |
Poor |
| Small Room |
Average |
Average |
| Mid-size Room |
Good |
Good |
| Large Room |
Average |
Average |
| Very Large Room |
Poor |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.
Drivers
Both Studio 630 and HDI-1600 are 2-way speakers.
JBL Studio 630JBL HDI-1600
TweeterWoofer
Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.
| Driver |
JBL Studio 630 |
JBL HDI-1600 |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
1 x 6.25-inch
|
1 x 6.5-inch
|
Studio 630 features a 1" High Frequency Compression Tweeter and 1 x 6.25" PolyPlas Woofer. On the other hand, the HDI-1600 features a 1" Horn-Loaded Tweeter and 1 x 6.5" Aluminum Woofer.
Frequency Response
Studio 630 has a frequency range of 45-40k Hz whereas HDI-1600 has a frequency range of 40-30k Hz. With a minimum frequency of 40Hz, the HDI-1600 can go significantly deeper on the low side and provide stronger bass compared to the Studio 630's min frequency of 45Hz.
The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Studio 630 is a 6 ohms speaker compared to the HDI-1600 which has a nominal impedance of 4 ohms. Lower impedance speakers, especially the ones that are rated at 4 ohms may put more pressure on the amplifier unit especially when played at high volume levels, so make sure the amp you pair with the HDI-1600 can provide this impedance level.
On the other hand, they have the same sensitivity of 85 dBdB.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying
within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.
HDI-1600 can handle a max power of 200 watts RMS, whereas Studio 630 has a max power handling value of 150 watts RMS, 50 watts less than the HDI-1600.
Note that higher power handling does not make a speaker louder: that depends mainly on
sensitivity and impedance. The calculator below shows how loud each of these actually plays
on a real amplifier.
Which plays louder on your amplifier?
Starting with a popular amplifier - change it to the one you own, or any you are
considering, and watch both numbers move.
Input Type and Bi-Amping / Bi-Wiring
HDI-1600 features 5-way post posts which make bi-amping or bi-wiring possible. Studio 630 has a 5-Way post which doesn't feature bi-amping/bi-wiring.
JBL HDI-1600's 5-way post terminals allows Bi-amping or bi-wiring
Cabinet Type and Port Position
Both Studio 630 and HDI-1600 have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.
Physical Specs
The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare JBL Studio 630's and JBL HDI-1600's external dimensions. JBL Studio 630 has external dimensions of 372.0 x 230.0 x 280.0mm (14.6 x 9-1/16inch x 11-1/16inch) whereas JBL HDI-1600 has external dimensions of 383.0 x 232.0 x 289.0mm (15-1/16 x 9-1/8 x 11-3/8inch).
JBL HDI-1600 is clearly the larger of the two speakers. Its body is 2mm wider, 11mm taller and 9mm deeper than JBL Studio 630.

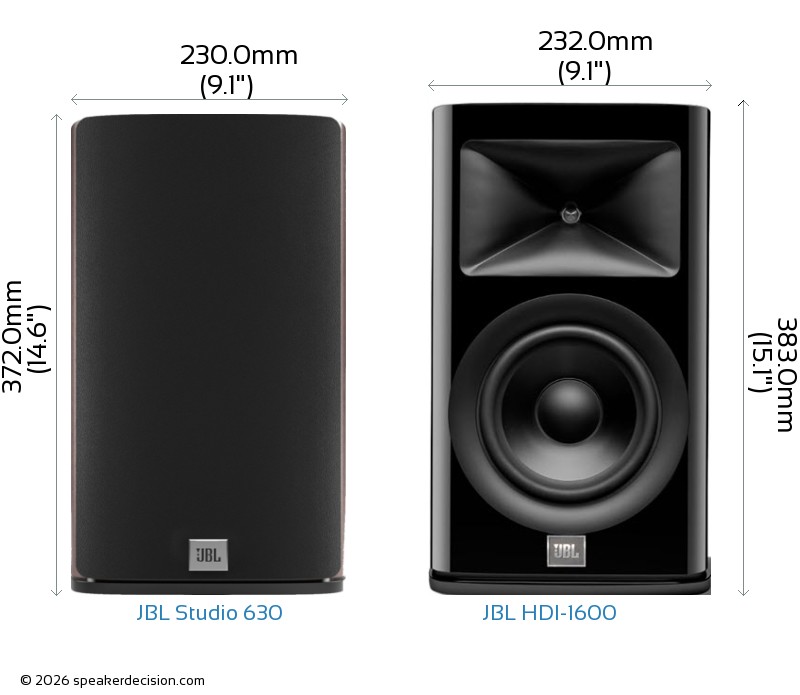

Below you can see the front view size comparison of JBL Studio 630 and JBL HDI-1600 in scale.
Comparison image of JBL Studio 630 and JBL HDI-1600 Size and External Dimensions
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the JBL Studio 630 is approximately 644.0cm2 / 99.8inch2 and base area of the JBL HDI-1600 is approximately 670.5cm2 / 103.9inch2. The Studio 630 requires 4% less surface area than the HDI-1600 which gives it a small advantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The JBL Studio 630 weighs 9.02kg / 19.8lbs and the JBL HDI-1600 weighs 9.98kg / 22lbs. This makes the HDI-1600 11% heavier than the Studio 630.
Here is a comparison of how Studio 630 and HDI-1600's weights compare with the average, max and min weights in Passive Bookshelf class.
Weight
All Bookshelf Speakers
What's in the Box of JBL Studio 630?
Here are the items that are included inside the box of Studio 630:
- 2 x JBL Studio 630 Bookshelf Loudspeaker
- 1 x Owner’s Manual
- 1 x Warranty Card
- 8 x Feet Pads
What's in the Box of JBL HDI-1600?
Here are the items that come with the HDI-1600:
- Bookshelf loudspeaker
- Grille
- 2 Jumper-straps (pre-installed)
- 4 Self-adhesive rubber feet
- Owner's Manual
 Nominal Impedance |
6 ohms
vs
4 ohms
|
Less selective with amplifiers |
 High Frequency Response |
40k Hz
vs
30k Hz
|
Generates higher frequency |
 Height |
372mm
vs
383mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
644cm2
vs
670cm2
|
Takes less floor space |
 Price per pair* |
700USD
vs
1980USD
|
costs less (*prices may change depending on the seller, location and time) |
 Max Input Power |
200 watts
vs
150 watts
|
Handle more power from your amplifier |
 Woofer Size |
6.5 inches
vs
6.25 inches
|
Larger woofer |
|
Low Frequency Response |
40 Hz
vs
45 Hz
|
Generates deeper bass |
 Bi-Amping and Bi-Wiring |
Yes
vs
No
|
Allows bi-amping and bi-wiring connections |
| General |
JBL Studio 630 |
JBL HDI-1600 |
| Brand |
JBL |
JBL |
| Speaker Type |
Bookshelf speakers |
Bookshelf speakers |
| Power Range |
up to 150 watts |
15-200 watts |
| Sensitivity |
85 dB |
85 dB |
| Impedance |
6 ohms |
4 ohms |
| Frequency Response |
45-40k Hz |
40-30k Hz |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
6.25" |
6.5" |
| Woofer Composition |
PolyPlas |
Aluminum |
| Woofer Surround Material |
n/a |
Rubber |
| Tweeter Size |
1" |
1" |
| Tweeter Type |
High Frequency Compression |
Horn-Loaded |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Firing Direction |
rear |
rear |
Physical Specs |
|
|
| Height |
372.0mm (14.6") |
383.0mm (15.1") |
| Width |
230.0mm (9.1") |
232.0mm (9.1") |
| Depth |
280.0mm (11") |
289.0mm (11.4") |
| Weight |
9.02kg (19.8lbs) |
9.98kg (22lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Finish |
MDF/Wood veneer |
MDF/Wood-veneer |
| Available Colors |
Wood, Dark Wood |
Walnut,Black,Oak |
| Mounting Bracket |
No |
No |
| Recommended Stand Height |
n/a |
22-26" |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
No |
Yes |
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
These sit in different price classes - JBL HDI-1600 costs roughly 2.8x what JBL Studio 630 does. Expect it to lead on paper; the question is whether the gap is audible enough in your room to be worth it.
| Area | Better | Why |
|---|
| Bass | B | JBL HDI-1600 digs deeper - 40Hz against 45Hz. A subwoofer would even that out. |
| Amplifier needs | evenly matched | Similar sensitivity (85dB vs 85dB) - both want much the same power. |
| Amplifier match | A | JBL Studio 630 is the easier load at 6 ohms; the other is 4 ohms and wants an amplifier rated for it. |
| Headroom | B | JBL HDI-1600 takes more power (200W vs 150W) - more in hand in a big room. |
| Size | depends | Similar cabinet size - neither is easier to fit. |
| Expandability | depends | JBL HDI-1600: bi-amping. JBL Studio 630 sits in a wider range (15 models), so a matched surround system is easier later. |
| Price | A | JBL Studio 630 is cheaper - $700 against $1,980, about 65% less; arguably a different class. |
A JBL Studio 630 B JBL HDI-1600
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both speakers are judged; anything missing on either side is left out rather than guessed.
Which should you choose?
JBL HDI-1600 is ahead, but only on 1 of the measured areas, and it costs about 2.8x the price. That is a lot of money for a narrow margin on paper - JBL Studio 630 looks like the sensible buy unless something else about the JBL HDI-1600 appeals to you. If a subwoofer is in your plans, the bass gap largely stops mattering - you would be crossing over above 45Hz anyway, which makes the cheaper JBL Studio 630 much easier to justify. If your amplifier is modest, vintage or valve-based, JBL Studio 630 is the safer partner - the other will want more current or more watts to sound its best.
And remember what a spec sheet cannot show: how each looks in your room and whether the finish suits it, what dealer support and warranty are like where you live, and how they actually sound to you. If you can hear them first - ideally with your own music - that will tell you more than any number above.
