In this review, we will be comparing Studio 630 and RP-600M, two Passive Bookshelf speakers from JBL and Klipsch.
Let's have a brief look at the main features
of JBL Studio 630 and Klipsch RP-600M first before getting into our more
detailed comparison.
JBL Studio 630 Key Specs
- 2-way Design
- 1" High Frequency Compression Tweeter
- 6.25" PolyPlas Woofer
- 45-40k Hz Frequency Response
- 85 dB Sensitivity
- Impedance: 6ohms
- Power Range:up to 150watts
- Weight:9.02kg
- Dimensions (H x W x D): 372.0" x 9-1/16" x 11-1/16"( 230 x 280 x 372mm )
Klipsch RP-600M Key Specs
- 2-way Design
- 1" Tractrix Horn Tweeter
- 6.5" Cerametallic Woofer
- 45-25k Hz Frequency Response
- 96 dB Sensitivity
- Impedance: 8ohms
- Power Range:up to 100watts
- Weight:7.30kg
- Dimensions (H x W x D): 399.0" x 7.9" x 11.8"( 399.0 x 202.0 x 301.0mm )
What size room are the JBL Studio 630 and Klipsch RP-600M speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
JBL Studio 630 |
Klipsch RP-600M |
| Near-field |
Poor |
Average |
| Small Room |
Average |
Good |
| Mid-size Room |
Good |
Average |
| Large Room |
Average |
Poor |
| Very Large Room |
Poor |
Bad |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the JBL Studio 630 and Klipsch RP-600M compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both Studio 630 and RP-600M are 2-way speakers.
| Driver |
JBL Studio 630 |
Klipsch RP-600M |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
1 x 6.25-inch
|
1 x 6.5-inch
|
Studio 630 features a 1" High Frequency Compression Tweeter and 1 x 6.25" PolyPlas Woofer . On the other hand, the RP-600M features a 1" Tractrix Horn Tweeter and 1 x 6.5" Cerametallic Woofer with a Crossover frequency at 1500Hz.
Frequency Response
Studio 630 has a frequency range of 45-40k Hz whereas RP-600M has a frequency range of 45-25k Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Bookshelf class in our database.
Low Frequency
Bookshelf Speakers
High Frequency
Bookshelf Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Studio 630 is a 6 ohms speaker compared to the RP-600M which has a nominal impedance of 8 ohms.
These two speakers also have different sensitivity levels. Studio 630 sensitivity is rated at 85 dB and the RP-600M's is rated at 96 dB. This 11 dB difference makes the Klipsch RP-600M a more sensitive speaker compared to JBL Studio 630, hence will play louder with the same amount of watts.
Sensitivity
Bookshelf Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
Studio 630 can handle a max power of 150 watts RMS from the amp the whereas RP-600M has a max power handling value of 100 watts RMS, 50 watts less than the Studio 630.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
RP-600M features Dual binding posts/bi-wire/bi-amp posts which make bi-amping or bi-wiring possible. Studio 630 has a 5-Way post which doesn't feature bi-amping/bi-wiring.
Klipsch RP-600M's Dual binding posts/bi-wire/bi-amp terminals allows Bi-amping or bi-wiring
Cabinet Type and Port Position
Both Studio 630 and RP-600M have rear firing ports. Rear ported speakers generally need more room between the backside of the speaker and the wall compared to sealed and front/bottom ported speakers. Placing the speakers too close to the walls may cause the bass to sound boomy.
If you are limited in space and can't get the speakers away from the backwall, check our Speakers with Front Firing Ports page.
Klipsch RP-600M Tractrix horn-shaped Port
Physical Specs

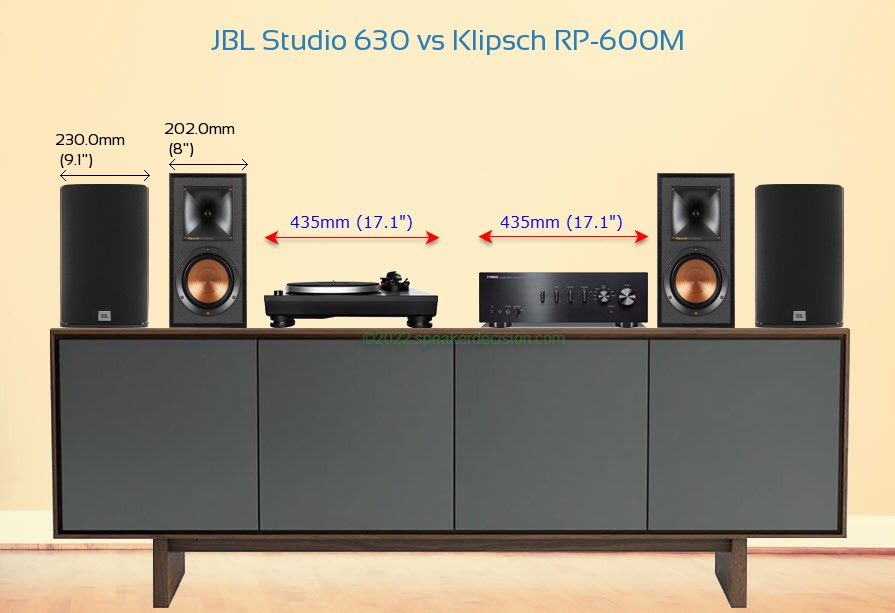

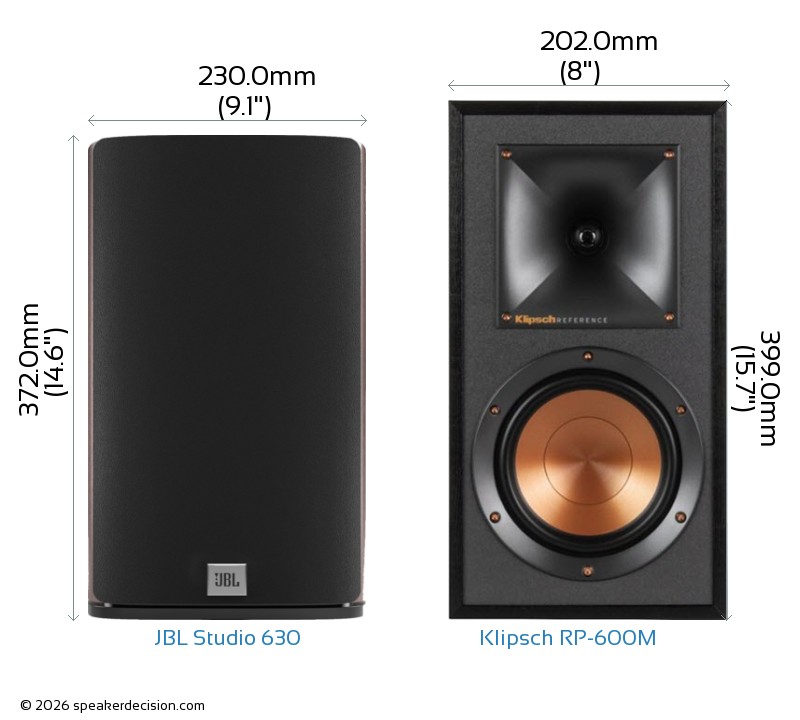

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare JBL Studio 630's and Klipsch RP-600M's external dimensions. JBL Studio 630 has external dimensions of 230 x 280 x 372mm ( 14.6 x 9-1/16inch x 11-1/16inch ) whereas Klipsch RP-600M has external dimensions of 399.0 x 202.0 x 301.0mm ( 15.7 x 7.9 x 11.8inch) .
JBL Studio 630 is 27mm shorter and 21mm less deeper than Klipsch RP-600M but it is also 28mm wider.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the JBL Studio 630 is approximately 644.0cm2 / 99.8inch2 and base area of the Klipsch RP-600M is approximately 608.0cm2 / 94.2inch2. The Studio 630 requires 6% more surface area than the RP-600M which gives it a small disadvantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The JBL Studio 630 weighs 9.02kg / 19.8lbs and the Klipsch RP-600M weighs 7.30kg / 16.1lbs. This makes the Studio 630 24% heavier than the RP-600M.
Here is a comparison of how Studio 630 and RP-600M's weights compare with the average, max and min weights in Passive Bookshelf class.
Weight
All Bookshelf Speakers
What's in the Box of JBL Studio 630?
Here are the items that are included inside the box of Studio 630:
2 x JBL Studio 630 Bookshelf Loudspeaker 1 x Owner’s Manual 1 x Warranty Card 8 x Feet Pads
What's in the Box of Klipsch RP-600M?
Here are the items that come with the RP-600M:
2 Bookshelf loudspeakers2 Grilles (installed)8 Self-adhesive rubber feet4 Terminal jumpers (installed)User ManualImportant Safety InstructionsWarranty Information
 Max Input Power |
150 watts
vs
100 watts
|
Handle more power from your amplifier |
 High Frequency Response |
40k Hz
vs
25k Hz
|
Generates higher frequency |
 Height |
372mm
vs
399mm
|
Easier to fit in smaller spaces |
 Sensitivity |
96 dB
vs
85 dB
|
Play louder with same amount of amplification power |
 Nominal Impedance |
8 ohms
vs
6 ohms
|
Less selective with amplifiers |
 Woofer Size |
6.5 inches
vs
6.25 inches
|
Larger woofer |
 Bi-Amping and Bi-Wiring |
Yes
vs
No
|
Allows bi-amping and bi-wiring connections |
 Base Surface Area |
608cm2
vs
644cm2
|
Takes less floor space |
| General |
JBL Studio 630 |
Klipsch Reference Premiere RP-600M |
| Brand |
JBL |
Klipsch |
| Speaker Type |
Bookshelf speakers |
Bookshelf speakers |
| Power Range |
up to 150 watts |
up to 100 watts |
| Sensitivity |
85 dB |
96 dB |
| Impedance |
6 ohms |
8 ohms |
| Frequency Response |
45-40k Hz |
45-25k Hz |
Drivers |
|
|
| Woofer Quantity |
1 |
1 |
| Woofer Size |
6.25" |
6.5" |
| Woofer Composition |
PolyPlas |
Cerametallic |
| Woofer Surround Material |
n/a |
Rubber |
| Tweeter Size |
1" |
1" |
| Tweeter Type |
High Frequency Compression |
Tractrix Horn |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Crossover Frequency |
n/a |
1500Hz |
| Firing Direction |
rear |
rear |
Physical Specs |
|
|
| Height |
372.0mm (14.6") |
399.0mm (15.7") |
| Width |
230.0mm (9.1") |
202.0mm (8") |
| Depth |
280.0mm (11") |
301.0mm (11.9") |
| Weight |
9.02kg (19.8lbs) |
7.30kg (16.1lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Finish |
MDF/Wood veneer |
MDF/Wood-grain vinyl |
| Available Colors |
Wood, Dark Wood |
Ebony, Walnut, Piano Black |
| Mounting Bracket |
No |
No |
| Recommended Stand Height |
n/a |
22-26" |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
No |
Yes |
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
