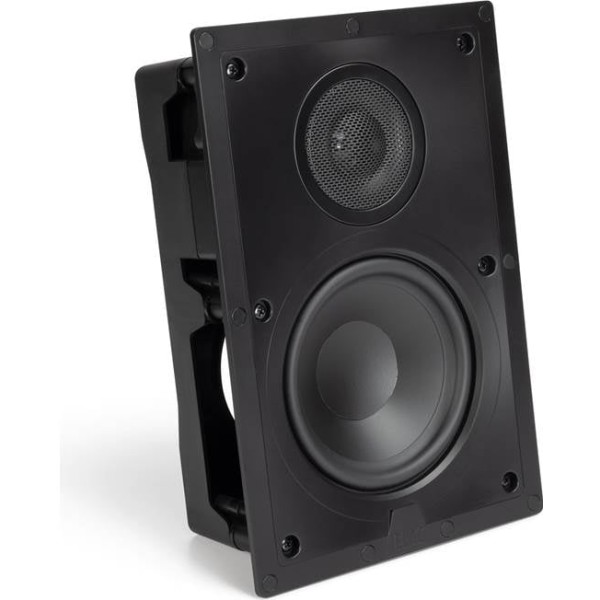

ELAC Vertex Series I IW V61 W is a 2-way Passive In-wall speaker by ELAC. It was released in 2024. It features a 1" Tweeter and 1 x 6.5" Woofer. The speaker has a frequency range of 45-20k Hz and a sensitivity of 90 dB. ELAC Vertex Series I IW V61 W has an MSRP of 698$ per pair but can often be found around 0$ per pair.
ELAC's Vertex Series I Series of Loudspeakers
Vertex Series I IW V61 W is a member of ELAC's Vertex Series I series of Passive speakers. Vertex Series I is the entry tier of ELAC's Vertex custom-install in-wall and in-ceiling range. Below you can see the main specs of these speakers.
ELAC Vertex Series I Series Speakers
Frequency Response of the ELAC Vertex Series I IW V61 W Speaker
ELAC Vertex Series I IW V61 W has a Frequency response range of 45-20k Hz. With a minimum frequency of 45 Hz, Vertex Series I IW V61 W delivers moderate bass depth so depending on your use case, you might want to consider adding a subwoofer to your system.
Here we have a comparison of how Vertex Series I IW V61 W's Low frequency value compares with the average, max and min Low frequency values in its class.
Low Frequency
In-wall Speakers
ELAC Vertex Series I IW V61 W
Thinking about a subwoofer for the ELAC Vertex Series I IW V61 W?
Impedance and Sensitivity
ELAC Vertex Series I IW V61 W's nominal impedance level is
6 ohms and has a sensitivity of
90 dB.
Sensitivity
In-wall Speakers
ELAC Vertex Series I IW V61 W
Nominal Impedance of the 6 Ohms makes the ELAC Vertex Series I IW V61 W a relatively difficult to drive speaker compared to more frequently found 8 ohms speakers from nominal Impedance perspective.
Sensitivity
90dB of the ELAC Vertex Series I IW V61 W is an average sensitivity for stereo speaker so it is neither easy nor difficult to drive Sensitivity wise. Work out how loud the ELAC Vertex Series I IW V61 W plays in your room →
Running more than one pair from a single amplifier? Check the load it would present →
What amplifier does the ELAC Vertex Series I IW V61 W need?
At normal listening levels in a medium room, about
10–160 W
per channel into 6 ohms.
Set your own conditions and we will rank every amplifier we cover.
Prefer to browse? Integrated amplifiers under $750, or every amplifier we cover.
Input Type
Vertex Series I IW V61 W features Spring post type connectors.
Work out what gauge speaker cable this run needs →
ELAC Vertex Series I IW V61 W External Dimensions and Weight
ELAC Vertex Series I IW V61 W has external dimensions of (Height x Width x Depth) (322.3 x 215.9 x 100.0mm ).
Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base area of ELAC Vertex Series I IW V61 W is approximately 215.9cm2 / 33.5inch2.

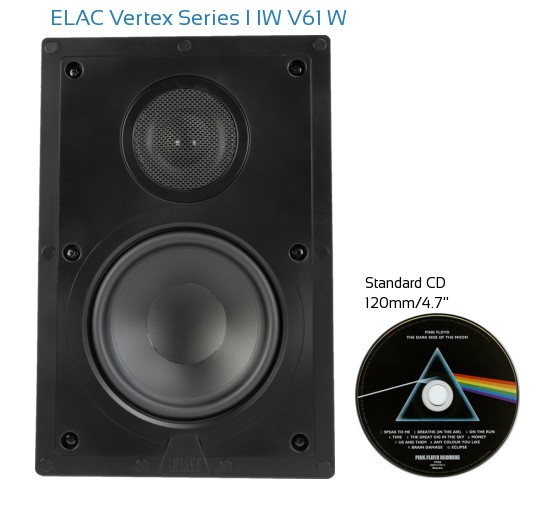

To get a better perspective on the real life size of ELAC Vertex Series I IW V61 W, let's compare it with a standard size Compact Disc which has a diameter of 4.7inch (120mm).
ELAC Vertex Series I IW V61 W Speaker Size Compared to a Compact Disc
Find speakers that fit your shelf or alcove →
Recommended Accessories
Here is a list of accessories that we think you may need for the ELAC Vertex Series I IW V61 W.
Warranty
3 Years of parts warranty and 3 Years of labor warranty is generally provided by the manufacturer.
