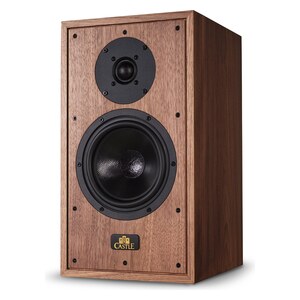

Castle Windsor Earl is a 2-way Passive Bass Reflex Bookshelf speaker by Castle. It was released in March 2023. It features a 1.1" Soft-Dome Tweeter and 1 x 6.5" Woven Polypropylene Woofer.
A 2-way standmount: 165 mm woven polypropylene bass/mid and a 28 mm micro-fibre dome, rear port, 15.8 litres. 89 dB at 2.83 V, 8 ohm compatible with a 4.3 ohm minimum, 25-100 W. 58 Hz-22 kHz +/-3 dB, 45 Hz at -6 dB. Built in the UK; sold with matching stands, and the US price includes them.
The speaker has a frequency range of 58-22k Hz and a sensitivity of 89 dB. Castle Windsor Earl has an MSRP of 5250$ per pair.
Room Size Suitability
The size of the room where you plan to use the Castle Windsor Earl is a crucial factor in your decision. We have assessed its suitability for various room sizes based on its dimensions and maximum power output:
| Listening Environment* |
Suitability |
| Near-field | Average |
| Small Room | Good |
| Mid-size Room | Average |
| Large Room | Poor |
| Very Large Room | Bad |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2, Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: > 400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual listening experience changes depending on floor height, room shape, surface materials, listening position, speaker locations, etc.)
Castle's Windsor Series of Loudspeakers
Windsor Earl is a member of Castle's Windsor series of Passive speakers. Below you can see the main specs of these speakers.
Castle Windsor Series Speakers
Frequency Response of the Castle Windsor Earl Speaker
Castle Windsor Earl has a Frequency response range of 58-22k Hz and Power Range of 25-100 watts. With a minimum frequency of 58 Hz, Windsor Earl delivers moderate bass depth so depending on your use case, you might want to consider adding a subwoofer to your system.
Here we have a comparison of how Windsor Earl's Low frequency value compares with the average, max and min Low frequency values in its class.
Low Frequency
Bookshelf Speakers
Thinking about a subwoofer for the Castle Windsor Earl?
Among the speakers in our database priced under $10,000 a pair, these are the 5 Passive Bookshelf speakers that have deeper bass than the Castle Windsor Earl's 58Hz:
Crossover frequency of the Castle Windsor Earl?
The crossover frequency of the Windsor Earl is set to 2.2 kHz. This is the threshold frequency where the higher frequency signals over this level are sent to the tweeter and the lower-frequency signals are sent to the woofer by the crossover component.
Impedance and Sensitivity
Castle Windsor Earl's nominal impedance level is
8 ohms but can go down to as low as
4.3 ohms, and has a sensitivity of
89 dB.
Sensitivity
Bookshelf Speakers
8 Ohms is pretty much the standard nominal impedance amongst stereo speakers and amplifiers so Castle Windsor Earl is not considered a difficult to drive speaker from nominal Impedance perspective.
Sensitivity
89dB of the Castle Windsor Earl is an average sensitivity for stereo speaker so it is neither easy nor difficult to drive Sensitivity wise. Work out how loud the Castle Windsor Earl plays in your room →
Minimum Impedance of the Castle Windsor Earl
Even though the nominal impedance of the Windsor Earl is 8 ohms, the minimum impedance level of this speaker according to Castle is 4.3 ohms Castle Windsor Earl so while choosing an amplifier, you should ideally check if the unit you are considering can provide this impedance level.
What amplifier does the Castle Windsor Earl need?
At normal listening levels in a medium room, about
9.5–100 W
per channel into 8 ohms.
Set your own conditions and we will rank every amplifier we cover.
Prefer to browse? See every integrated amplifier we cover.
Input Type
Windsor Earl features Binding post type connectors.
Work out what gauge speaker cable this run needs →
Castle Windsor Earl External Dimensions and Weight
Castle Windsor Earl has external dimensions of (Height x Width x Depth) 16-15/16 x 9-7/16 x 10-1/4inch (430.0 x 240.0 x 260.0mm ).
Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base area of Castle Windsor Earl is approximately 624.0cm2 / 96.7inch2.
Find speakers that fit your shelf or alcove → · Work out where they should sit in the room →
Cabinet type and Materials
Castle Windsor Earl has a
Bass Reflex type cabinet and a Walnut veneer, Mahogany veneer finish. Bass Reflex type loudspeakers (aka Ported, Vented or Reflex Port) have enclosures that uses a port, hole or vent cut into the cabinet. Ported designs are generally more efficient than the Sealed designs.
Port Position
Castle Windsor Earl is a rear-firing port speaker so you have to make sure you leave enough space between the back of the speaker and wall or bookshelf so that it has room to breathe.
Wall Mounting
Windsor Earl doesn't sport any built-in mounting bracket, so you need an external structure to mount it on walls.
Recommended Accessories
Here is a list of accessories that we think you may need for the Castle Windsor Earl.
- Speaker Cable and Connectors
- Vibration Isolators: IsoAcoustics isolators are our favorite isolators but you may find more affordable options too.
- Acoustic Panels and Treatments: Your room is as important as your stereo equipment so acoustic treatments goes a long way in improving the overall performance.
- Speaker Stands: Stands bring your bookshelf speakers to ideal height (rule of thumb is to have the tweeter level with your ear in your listening position), helps stability and acoustical isolation.
