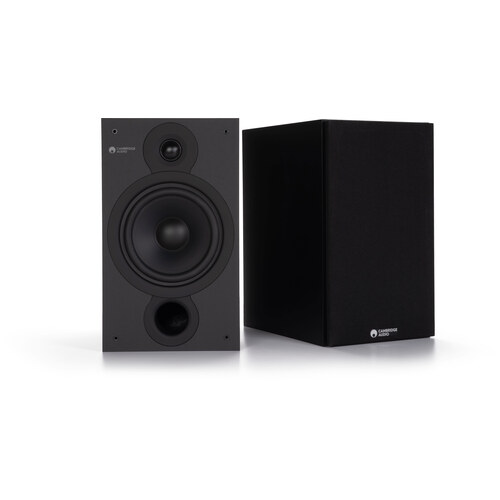

Cambridge Audio SX-60 is a 2-way Passive Bass Reflex Bookshelf speaker by Cambridge Audio. It was released in 2019. It features a 1" Soft-Dome Tweeter and 1 x 6.5" Treated paper Woofer. The speaker has a frequency range of 41-22k Hz and a sensitivity of 89 dB. Cambridge SX-60 has an MSRP of 299$ per pair.
Room Size Suitability
The size of the room where you plan to use the Cambridge SX-60 is a crucial factor in your decision. We have assessed its suitability for various room sizes based on its dimensions and maximum power output:
| Listening Environment* |
Suitability |
| Near-field | Average |
| Small Room | Good |
| Mid-size Room | Average |
| Large Room | Poor |
| Very Large Room | Bad |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2, Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: > 400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual listening experience changes depending on floor height, room shape, surface materials, listening position, speaker locations, etc.)
Cambridge Audio's SX Series of Loudspeakers
SX-60 is a member of Cambridge Audio's SX series of Passive speakers. The SX range is Cambridge Audio's affordable line of traditional bookshelf and floorstanding speakers. Below you can see the main specs of these speakers.
Cambridge Audio SX Series Speakers
**This post contains affiliate links, and we will be compensated if you make a purchase after clicking through our links. As an Amazon Associate I earn from qualifying purchases.
Frequency Response of the Cambridge SX-60 Speaker
Cambridge SX-60 has a Frequency response range of 41-22k Hz at ±3dB and Power Range of 20-100 watts. With a minimum frequency of 41 Hz, SX-60 delivers deep bass that will likely satisfy most listeners, especially those who enjoy music. However, movie enthusiasts and music fans who prefer a full range of sound may still benefit from adding a subwoofer.
Here we have a comparison of how SX-60's Low frequency value compares with the average, max and min Low frequency values in its class.
Low Frequency
Bookshelf Speakers
Thinking about a subwoofer for the Cambridge SX-60?
Cambridge SX-60's Treated paper Woofer
Cambridge SX-60's Silk Soft-Dome Tweeter
Impedance and Sensitivity
Cambridge SX-60's nominal impedance level is
8 ohms and has a sensitivity of
89 dB.
Sensitivity
Bookshelf Speakers
8 Ohms is pretty much the standard nominal impedance amongst stereo speakers and amplifiers so Cambridge Audio SX-60 is not considered a difficult to drive speaker from nominal Impedance perspective.
Sensitivity
89dB of the Cambridge Audio SX-60 is an average sensitivity for stereo speaker so it is neither easy nor difficult to drive Sensitivity wise. Work out how loud the Cambridge SX-60 plays in your room →
What amplifier does the Cambridge SX-60 need?
At normal listening levels in a medium room, about
9.5–100 W
per channel into 8 ohms.
Set your own conditions and we will rank every amplifier we cover.
Prefer to browse? Integrated amplifiers under $300, or every amplifier we cover.
Input Type
SX-60 features Post type connectors. Bi-amping and Bi-wiring are not possible.
Work out what gauge speaker cable this run needs →
Cambridge SX-60 Back View
Cambridge SX-60's Post terminals
Cambridge SX-60 External Dimensions and Weight
Cambridge SX-60 has external dimensions of (Height x Width x Depth) 13-7/16 x 7-15/16 x 10-7/8inch (342.0 x 202.0 x 277.0mm ).
Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base area of Cambridge SX-60 is approximately 559.5cm2 / 86.7inch2.
To get a better perspective on the real life size of Cambridge SX-60, let's compare it with a standard size Compact Disc which has a diameter of 4.7inch (120mm).
Cambridge SX-60 Speaker Size Compared to a Compact Disc
Here we place the Cambridge SX-60 virtually next to a standard width amplifier and turntable on a BDI Octave Media Cabinet to get a better idea about the size.
Cambridge SX-60 Speaker next to an amplifier and turntable
Find speakers that fit your shelf or alcove → · Work out where they should sit in the room →
WeightThe Cambridge SX-60 weighs 5.00kg / 11lbs per piece. Here is a comparison of how SX-60's weight compares with the average, max and min weights in its class.
Weight
All Bookshelf Speakers
Weight
Bookshelf Speakers under $300
Cabinet type and Materials
Cambridge SX-60 has a
Bass Reflex type cabinet and a MDF/Vinyl finish. Bass Reflex type loudspeakers (aka Ported, Vented or Reflex Port) have enclosures that uses a port, hole or vent cut into the cabinet. Ported designs are generally more efficient than the Sealed designs.
Speaker Feet
Cambridge SX-60 comes with 8 Self-adhesive feet which you can use to secure your loudspeaker on the surface that you are putting on.
It is always recommended to use some kind of feet under all types of speakers. Besides limiting the movement of the speakers, it also compensates for non-flat surfaces and limits the contact surface area of the speaker. Rubber based feet also help isolating the vibrations within certain frequency ranges.
Port Position
Cambridge SX-60 is a front-firing port speaker, which gives you more flexibility compared to rear firing speakers when you need to place it close against a wall or other surfaces.
Available colors
Cambridge SX-60 is available in Black.
Wall Mounting
SX-60 doesn't sport any built-in mounting bracket, so you need an external structure to mount it on walls.
Does the Cambridge SX-60 come with a Grille?
SX-60 comes with grilles. The purpose of the grille is to protect the delicate driver elements from external impacts while still allowing the sound to pass as clearly as possible.
Cambridge SX-60 with Grille
What's in the Box of Cambridge SX-60?
Here are the items that are included inside the box of SX-60:
- 2 Bookshelf loudspeakers
- 2 Grilles
- 8 Self-adhesive feet
- 2 Foam port inserts
- Installation Guide
Recommended Accessories
Here is a list of accessories that we think you may need for the Cambridge Audio SX-60.
- Speaker Cable and Connectors
- Vibration Isolators: IsoAcoustics isolators are our favorite isolators but you may find more affordable options too.
- Acoustic Panels and Treatments: Your room is as important as your stereo equipment so acoustic treatments goes a long way in improving the overall performance.
- Speaker Stands: Stands bring your bookshelf speakers to ideal height (rule of thumb is to have the tweeter level with your ear in your listening position), helps stability and acoustical isolation.
User's Manual
For more information about how to setup, use and maintain the Cambridge Audio SX-60, use the direct link below to download the official manual document:
Download User Manual for Cambridge SX-60
Official Product Page
Official manufacturer's product page for the Cambridge Audio SX-60 speaker can be found below:
Official Product Page for Cambridge SX-60
Warranty
5 Years of parts warranty and 5 Years of labor warranty is generally provided by the manufacturer.
