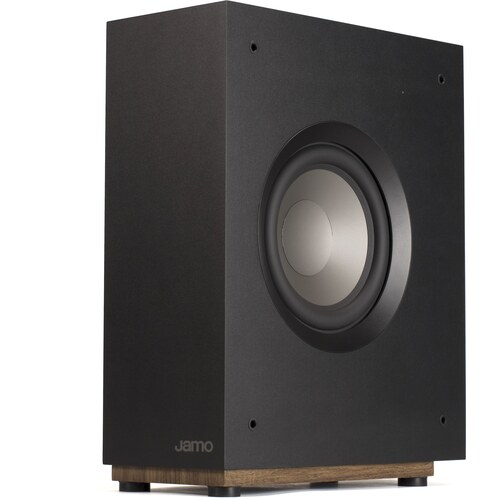

S 808 SUB is a Ported type Powered Subwoofer by Jamo with a frequency range of 39-180 Hz. It was released in 2017. It features 1 x 8" Polyfiber Woofer, and powered by a Class D 50 watts amplifier.
Jamo S 808 SUB Lifestyle
S 808 SUB is a member of Jamo's Studio 8 series of Powered subwoofers. The Studio 8 Series are Jamo's affordable home-theatre speakers. Below you can see the main specs of these subwoofers as well as review and comparison links.
Jamo Studio 8 Series Subwoofers
Jamo Studio 8 Series Speakers
**This post contains affiliate links, and we will be compensated if you make a purchase after clicking through our links. As an Amazon Associate I earn from qualifying purchases.
Frequency Response
Where should the crossover go? → · What will your room do to this bass? →
Jamo S 808 SUB has a Frequency response range of 39-180 Hz.
Here we have a comparison of how S 808 SUB's Low and High frequency values compare with the average, max and min Low and High frequency values in its class.
Low Frequency
Powered Subwoofers
High Frequency
Subwoofer Speakers
Among all subwoofers in our database with a max MSRP price of 300$, these are the 5 Powered Subwoofer models that can reach deeper bass levels than the Jamo S 808 SUB's 39Hz:
Low-Pass CrossoverJamo S 808 SUB has a variable Low-pass filter (LFP) which lets you choose a frequency level between 40-120 Hz in order to block any frequencies above that point from reaching the amplifier.
Inputs and Outputs
- PreampLevel Inputs: Mono-RCA/LFE
- SpeakerLevel Inputs: No
- SpeakerLevel Outputs: No
- Wireless: No
Jamo S 808 SUB Connections
Jamo S 808 SUB External Dimensions and Weight
Jamo S 808 SUB has external dimensions of (Height x Width x Depth) 18-1/16 x 7 x 14inch (459.0 x 178.0 x 356.0mm ).
Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base area of Jamo S 808 SUB is approximately 633.7cm2 / 98.2inch2.
To get a better perspective on the real life size of Jamo S 808 SUB, let's compare it with a standard size Compact Disc which has a diameter of 4.7inch (120mm).
Jamo S 808 SUB Speaker Size Compared to a Compact Disc
Here we place the Jamo S 808 SUB virtually next to a standard width amplifier and turntable on a media center to get a better idea about the size.
Jamo S 808 SUB Subwoofer next to a Media Stand
Find speakers that fit your shelf or alcove →
WeightThe Jamo S 808 SUB weighs 8.64kg / 19lbs. Weight of a subwoofer is an important factor when you need to move and reposition the unit often to find the optimal positioning, also known as 'Subwoofer Crawling'. Here is a comparison of how S 808 SUB's weight compares with the average, max and min weights in its class.
Weight
All Subwoofer Speakers
Weight
Subwoofer Speakers under $300
How does the Jamo S 808 SUB compare to the Jamo S 810 SUB?
One of the natural alternative to the Jamo S 808 SUB is the S 810 SUB which is located one step higher in Jamo's Powered Subwoofer selection.
Here is a scaled size comparison of these two speakers to give you an idea how their external dimensions compare:
Comparison image of Jamo S 808 SUB and Jamo S 810 SUB Size and External Dimensions
Check the Detailed Comparison of Jamo S 808 SUB vs S 810 SUB for more details.
Cabinet type and Materials
Jamo S 808 SUB has a
Bass Reflex type cabinet. Ported subwoofers are generally accepted to be more suitable for home theatre systems whereas the sealed designs are preferred for music oriented systems.
Port Position
Jamo S 808 SUB is a Side-firing port speaker.
Does the Jamo S 808 SUB come with a Grille?
S 808 SUB comes with grilles. The purpose of the grille is to protect the delicate driver elements from external impacts while still allowing the sound to pass as clearly as possible.
Jamo S 808 SUB with Grille
What's in the Box of Jamo S 808 SUB?
Here are the items that are included inside the box of S 808 SUB:
- Powered subwoofer
- Grille
- 5-feet AC power cord
- 6.5-feet Mono-RCA cable
- 4 Rubber feet
- User Manual
- Important Safety Instructions
- Warranty Information
Recommended Accessories
Here is a list of accessories that we think you may need for the Jamo S 808 SUB.
Warranty
2 Years of parts warranty and 2 Years of labor warranty is generally provided by the manufacturer.
| General |
| Brand | Jamo |
| Full Model Name | Jamo S 808 SUB |
| Type | Powered Subwoofer |
| Release Date | 2017 |
| Frequency Response | 39-180 Hz |
| Enclosure Type | Ported |
| Enclosure | Bass Reflex |
| Firing Direction | Side |
| Port Position | Side |
Amplifier & Driver |
| Power (RMS) | 50 watts |
| Power (Peak) | 100 watts |
| Amplifier Type | Class D |
| Woofer | 8-inch Polyfiber |
| Controls & Connections |
| Low-pass Crossover | 40-120 Hz |
| Phase Control | Yes |
| Wireless | No |
| Line-level Inputs | Mono-RCA/LFE |
| Speaker-level Inputs | No |
| Speaker-level Outputs | No |
Physical |
| Dimensions (HxWxD) | 18-1/16" x 7" x 14" (459.0 x 178.0 x 356.0mm) |
| Weight | 8.64 kg (19 lbs) |
| Grille | Yes |
| Mounting Bracket | No |
| Parts Warranty | 2 Years |
| Labor Warranty | 2 Years |
