PSB Alpha T20 Review

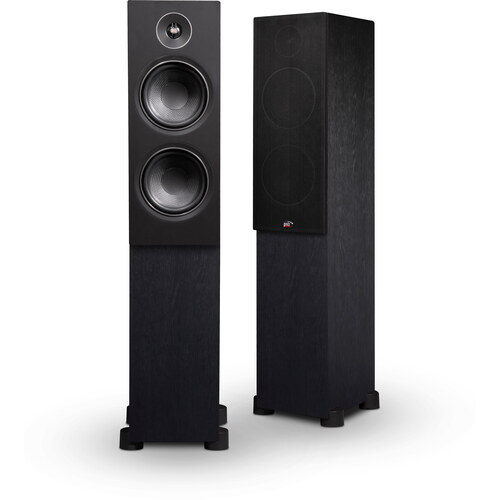

PSB Alpha T20

Main Features

  • 0.75" Dome Tweeter
  • 2 x 5.25" Polypropylene Woofer
  • 36-21k Hz Frequency Response
  • 90 dB Sensitivity
  • Impedance: 8ohms
  • Power Range: 15-120watts
  • Weight:26.15 lbs / 11.89 kg
  • Dimensions(HxWxD): 34-3/16"x8-5/16"x9-13/16" / 869.0 x 212.0 x 250.0mm
CHECK PRICE

Compare To

x
Add a Speaker for comparison
PSB Alpha T20 Review

PSB Alpha T20 is a 2-way Passive Bass Reflex Floor-standing speaker by PSB. It features a 0.75" Dome Tweeter and 2 x 5.25" Polypropylene Woofer. The speaker has a frequency range of 36-21k Hz and a sensitivity of 90 dB. PSB Alpha T20 has an MSRP of 799$ per pair.

What size of room is the PSB Alpha T20 speaker good for?

The size of the room in which you are planning to use the PSB Alpha T20 is an important decision factor. Here we have evaluated its suitability to various sizes of environments considering its size and max power parameters:

Listening Environment* Suitability
Near-fieldBad
Small RoomPoor
Mid-size RoomGood
Large RoomGood
Very Large RoomPoor

(* Approximate Room sizes: Small < 100sq. ft / 9 m2, Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: > 400 sq. ft / 36 m2. Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual listening experience changes depending on floor height, room shape, surface materials, listening position, speaker locations, etc.)

What are the speakers in PSB's Alpha Series?

Alpha T20 is a member of PSB's Alpha series of Passive speakers. Below you can see the main specs of these speakers.

PSB Alpha Series Speakers
Model Frequency SensitivityImpedance Woofer
PSB P3
Compare
57-21k Hz 87 dB8Ω 1 x 4.5"
PSB Alpha T20
36-21k Hz 90 dB8Ω 2 x 5.25"
PSB P5
Compare
55-21k Hz 89 dB8Ω 1 x 5.25"
PSB Alpha C10
Compare
55-21k Hz 90 dB8Ω 2 x 5.25"
PSB Alpha Series Speakers
PSB Alpha Series Speakers


**This post contains affiliate links, and I will be compensated if you make a purchase after clicking through my links. As an Amazon Associate I earn from qualifying purchases.

What is the Frequency Response of the PSB Alpha T20 speaker?

PSB Alpha T20 has a Frequency response range of 36-21k Hz at ±3dB and Power Range of 15-120 watts. At a minimum frequency of 36 Hz, Alpha T20 will provide a deep bass that will probably satisfy majority of listeners, especially for music. Movie lovers and music listeners who like to experience a full range response will still benefit from the use of a subwooofer though.

To focus on the subwoofers that are in a similar price range with PSB Alpha T20, check out the Powered Subwoofers under $1000. Alternatively, find the Full list of Powered Subwoofers regardless of the price.
Here we have a comparison of how Alpha T20's Low and High frequency values compare with the average, max and min Low and High frequency values in its class.
Low Frequency
Floor-standing Speakers
PSB Alpha T20
Min
Average
Max
High Frequency
Floor-standing Speakers
PSB Alpha T20
Min
Average
Max


What is the Crossover frequency of PSB Alpha T20?

The Crossover frequency of the Alpha T20 is set to 2500Hz. This is the threshold frequency where the higher frequency signals over this level are sent to the tweeter and the lower-frequency signals are sent to the woofer by the crossover component.

What are the Impedance and Sensitivity of the PSB Alpha T20? Is it an easy-to-drive speaker?

PSB Alpha T20's nominal impedance level is 8 ohms and has a sensitivity of 90 dB.

Sensitivity
Floor-standing Speakers
PSB Alpha T20
Min
Average
Max

8 Ohms is pretty much the standard nominal impedance amongst stereo speakers and amplifiers so PSB Alpha T20 is not considered a difficult to drive speaker from nominal Impedance perspective.

Sensitivity

90dB of PSB Alpha T20 is an average sensitivity for stereo speaker so it is neither easy nor difficult to drive Sensitivity wise.

Check the amplifiers that are in a similar price range to the PSB Alpha T20:

  • Integrated Amps under 750 USD
  • Integrated Amps under 1000 USD
  • Integrated Amps under 1500 USD
  • All Integrated Amplifiers

Input Type

Alpha T20 has 5-Way post type connectors and lets bi-amping/bi-wiring. Bi-wiring can provide improvements in the overall transparency of your loudspeakers by running separate speaker wires to the low & high frequency drivers from a single amplifier. Bi-amping allows the use of separate amplifiers for the high & low frequency drivers of your loudspeaker which may result in greater dynamic range & lower distortion.

PSB Alpha T20 Terminals
PSB Alpha T20's 5-Way post terminals allows Bi-amping or bi-wiring

PSB Alpha T20 External Dimensions and Weight

PSB Alpha T20 has external dimensions of (Height x Width x Depth) 34-3/16 x 8-5/16 x 9-13/16inch (869.0 x 212.0 x 250.0mm ).

Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited. The base area of PSB Alpha T20 is approximately 530.0cm2 / 82.2inch2.

To get a better perspective on the real life size of PSB Alpha T20, let's compare it with a standard size Compact Disc which has a diameter of 4.7inch (120mm).

PSB Alpha T20 Real Life Body Size Comparison
PSB Alpha T20 Speaker Size Compared to a Compact Disc

Here we place the PSB Alpha T20 virtually next to a standard width amplifier and turntable on a media center to get a better idea about the size.

PSB Alpha T20 placed next to a Media Stand
PSB Alpha T20 Floor-standing Speaker next to a Media Stand

Weight

The PSB Alpha T20 weighs 11.89kg / 26.2lbs per piece. Here is a comparison of how Alpha T20's weight compares with the average, max and min weights in its class.

Weight
All Floor-standing Speakers
PSB Alpha T20
Min
Average
Max
Weight
Floor-standing Speakers under $1000
PSB Alpha T20
Min
Average
Max

Cabinet type and Materials

PSB Alpha T20 has a Bass Reflex type cabinet and a MDF, Wood-grain vinyl finish. Bass Reflex type loudspeakers (aka Ported, Vented or Reflex Port) have enclosures that uses a port, hole or vent cut into the cabinet. Ported designs are generally more efficient than the Sealed designs.

Speaker Feet

PSB Alpha T20 comes with the parts below which you can use to secure your loudspeaker on the surface that you are putting on:
  • 8 Rubber feet
  • 8 Spike feet
  • It is always recommended to use some kind of feet under all types of speakers. Besides limiting the movement of the speakers, it also compensates for non-flat surfaces and limits the contact surface area of the speaker. Rubber based feet also help isolating the vibrations within certain frequency ranges.

    Port Position

    PSB Alpha T20 is a rear-firing port speaker so you have to make sure you leave enough space between the back of the speaker and wall or bookshelf so that it has room to breathe.

    Available colors

    PSB Alpha T20 is available in Black.

    Does the PSB Alpha T20 come with a Grille?

    Alpha T20 comes with Magnetic grilles. The purpose of the grille is to protect the delicate driver elements from external impacts while still allowing the sound to pass as clearly as possible.

    What's in the Box of PSB Alpha T20?

    Here are the items that are included inside the box of Alpha T20:
  • 2 Floorstanding loudspeakers
  • 2 Grilles
  • 8 Rubber feet
  • 8 Spike feet
  • 8 Hex-nuts
  • Quick Start Guide
  • Warranty Card
  • User's Manual

    For more information about how to setup, use and maintain the PSB Alpha T20, use the direct link below to download the official manual document:
    Download User Manual for PSB Alpha T20

    Official Product Page

    Official manufacturer's product page for the PSB Alpha T20 speaker can be found below:
    Official Product Page for PSB Alpha T20

    Warranty

    5 Years of parts warranty and 5 Years of labor warranty is generally provided by the manufacturer.

    PSB Alpha T20 Alternatives in Passive Floor-standing Speakers
    Model Type Sensitivity Impedance Frequency
    Klipsch R-620F
    Compare
    2-way 96 dB 8 ohms 38-21k Hz
    Triangle Borea BR07
    Compare
    3-way 91 dB 8 ohms 44 - 22k Hz
    Klipsch R-820F
    Compare
    2-way 97 dB 8 ohms 35-21k Hz
    Polk S60
    Compare
    2-way 90 dB 8 ohms 26-40k Hz
    Klipsch R-610F
    Compare
    2-way 94 dB 8 ohms 45-21k Hz
    Klipsch RP-6000F
    Compare
    2-way 97 dB 8 ohms 34-25k Hz
    Jamo S 809
    Compare
    2-way 90 dB 8 ohms 37-26k Hz
    Polk ES60
    Compare
    2-way 90 dB 8 ohms 32-40k Hz
    Jamo C 95 II
    Compare
    2-way 89 dB 6 ohms 37-24k Hz
    Jamo C 97 II
    Compare
    3-way 89 dB 6 ohms 32-24k Hz
    Frequently Asked Questions about PSB Alpha T20
    What is the External Dimensions of PSB Alpha T20
    What is the Speaker Sensitivity of PSB Alpha T20
    is the PSB Alpha T20 an easy to drive speaker?



    PSB Alpha T20 Detailed Specifications

    General
    BrandPSB
    Full Model NamePSB Alpha T20
    Speaker Type2-way Floor-standing
    Power Range15-120 watts
    Sensitivity90 dB
    Impedance8 ohms
    Frequency Response36-21k Hz
    DRIVERS
    Woofer Size5.25-inch
    Woofer CompositionPolypropylene
    Woofer SurroundRubber
    Tweeter Size0.75-inch
    Tweeter TypeDome
    Crossover freq2500Hz
    Port Positionrear

    CONNECTIONS
    Connector Type5-Way post
    Biamp InputsYes
    Port Positionrear
    PHYSICAL SPECS
    Height869.0mm ( 34-3/16-inch)
    Width212.0mm ( 8-5/16-inch)
    Depth250.0mm ( 9-13/16-inch)
    Height869.0mm ( 34-3/16-inch)
    Weight11.89kg ( 26.15 lbs)
    EnclosureBass Reflex
    FinishMDF, Wood-grain vinyl
    Available ColorsBlack
    Mounting BracketNo
    GrilleYes
    Moisture ResistanceNo
    OTHER
    Handheld RemoteNo
    Parts Warranty5 Years
    Labor Warranty5 Years
