PSB Alpha P5 Review

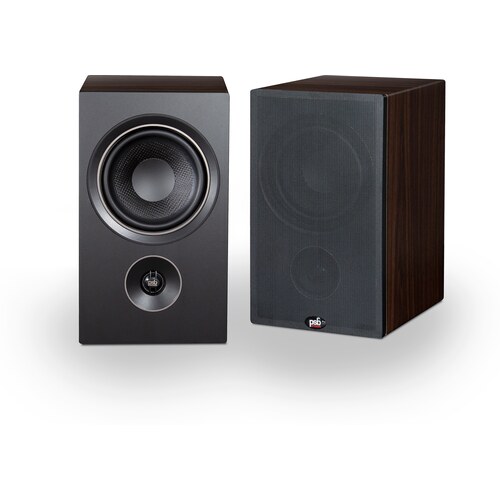

PSB Alpha P5

Main Features

  • 0.75" Hard-Dome Tweeter
  • 5.25" Polypropylene Woofer
  • 55-21k Hz Frequency Response
  • 89 dB Sensitivity
  • Impedance: 8ohms
  • Power Range: 10-90watts
  • Weight:10.14 lbs / 4.61 kg
  • Dimensions(HxWxD): 11-3/8"x6-3/4"x10" / 289.0 x 172.0 x 254.0mm
CHECK PRICE

Compare To

x
Add a Speaker for comparison
PSB P5 Review
PSB P5 PSB P5
See at AMAZON

PSB Alpha P5 is a 2-way Passive Bass Reflex Bookshelf speaker by PSB. It features a 0.75" Hard-Dome Tweeter and 1 x 5.25" Polypropylene Woofer. The speaker has a frequency range of 55-21k Hz and a sensitivity of 89 dB. PSB P5 has an MSRP of 449$ per pair.

Room Size Suitability

The size of the room where you plan to use the PSB P5 is a crucial factor in your decision. We have assessed its suitability for various room sizes based on its dimensions and maximum power output:

Listening Environment* Suitability
Near-fieldAverage
Small RoomGood
Mid-size RoomAverage
Large RoomPoor
Very Large RoomBad

(* Approximate Room sizes: Small < 100sq. ft / 9 m2, Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: > 400 sq. ft / 36 m2. Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual listening experience changes depending on floor height, room shape, surface materials, listening position, speaker locations, etc.)

PSB's Alpha Series of Loudspeakers

Alpha P5 is a member of PSB's Alpha series of Passive speakers. Below you can see the main specs of these speakers.

PSB Alpha Series Speakers
Model Frequency SensitivityImpedance Woofer
PSB P3
Compare
57-21k Hz 87 dB8Ω 1 x 4.5"
PSB Alpha T20
Compare
36-21k Hz 90 dB8Ω 2 x 5.25"
PSB P5
55-21k Hz 89 dB8Ω 1 x 5.25"
PSB Alpha C10
Compare
55-21k Hz 90 dB8Ω 2 x 5.25"
PSB Alpha Series Speakers
PSB Alpha Series Speakers


**This post contains affiliate links, and I will be compensated if you make a purchase after clicking through my links. As an Amazon Associate I earn from qualifying purchases.

Frequency Response of the PSB P5 Speaker

PSB P5 has a Frequency response range of 55-21k Hz at ±3dB and Power Range of 10-90 watts. With a minimum frequency of 55 Hz, Alpha P5 delivers moderate bass depth so depending on your use case, you might want to consider adding a subwoofer to your system.

To focus on the subwoofers that are in a similar price range with PSB P5, check out the Powered Subwoofers under $500. Alternatively, find the Full list of Powered Subwoofers regardless of the price.
Here we have a comparison of how Alpha P5's Low and High frequency values compare with the average, max and min Low and High frequency values in its class.
Low Frequency
Bookshelf Speakers
PSB P5
Min
Average
Max
High Frequency
Bookshelf Speakers
PSB P5
Min
Average
Max

Crossover frequency of the PSB P5?

The Crossover frequency of the Alpha P5 is set to 2500Hz. This is the threshold frequency where the higher frequency signals over this level are sent to the tweeter and the lower-frequency signals are sent to the woofer by the crossover component.

Impedance and Sensitivity

PSB P5's nominal impedance level is 8 ohms but can go down to as low as 4 ohms, and has a sensitivity of 89 dB.

Sensitivity
Bookshelf Speakers
PSB P5
Min
Average
Max

8 Ohms is pretty much the standard nominal impedance amongst stereo speakers and amplifiers so PSB Alpha P5 is not considered a difficult to drive speaker from nominal Impedance perspective.

Sensitivity

89dB of the PSB Alpha P5 is an average sensitivity for stereo speaker so it is neither easy nor difficult to drive Sensitivity wise.

Minimum Impedance of the PSB P5

Even though the nominal impedance of the Alpha P5 is 8 ohms, the minimum impedance level of this speaker according to PSB is 4 ohms PSB Alpha P5 so while choosing an amplifier, you should ideally check if the unit you are considering can provide this impedance level.

Check the amplifiers that are in a similar price range to the PSB P5:

  • Integrated Amps under 300 USD
  • Integrated Amps under 500 USD
  • Integrated Amps under 750 USD
  • All Integrated Amplifiers

Input Type

Alpha P5 features 5-way post type connectors. Bi-amping and Bi-wiring are not possible.
PSB P5 Back View
PSB P5 Back View

PSB P5 External Dimensions and Weight

PSB P5 has external dimensions of (Height x Width x Depth) 11-3/8 x 6-3/4 x 10inch (289.0 x 172.0 x 254.0mm ).

Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited. The base area of PSB P5 is approximately 436.9cm2 / 67.7inch2.

To get a better perspective on the real life size of PSB P5, let's compare it with a standard size Compact Disc which has a diameter of 4.7inch (120mm).

PSB P5 Real Life Body Size Comparison
PSB P5 Speaker Size Compared to a Compact Disc

Here we place the PSB P5 virtually next to a standard width amplifier and turntable on a BDI Octave Media Cabinet to get a better idea about the size.

PSB P5 placed next to an amplifier and turntable
PSB P5 Speaker next to an amplifier and turntable

Weight

The PSB P5 weighs 4.61kg / 10.1lbs per piece. Here is a comparison of how Alpha P5's weight compares with the average, max and min weights in its class.

Weight
All Bookshelf Speakers
PSB P5
Min
Average
Max
Weight
Bookshelf Speakers under $500
PSB P5
Min
Average
Max

Cabinet type and Materials

PSB P5 has a Bass Reflex type cabinet and a MDF, Wood-grain vinyl finish. Bass Reflex type loudspeakers (aka Ported, Vented or Reflex Port) have enclosures that uses a port, hole or vent cut into the cabinet. Ported designs are generally more efficient than the Sealed designs.

Speaker Feet

PSB P5 comes with 8 Self-adhesive rubber feet which you can use to secure your loudspeaker on the surface that you are putting on.

It is always recommended to use some kind of feet under all types of speakers. Besides limiting the movement of the speakers, it also compensates for non-flat surfaces and limits the contact surface area of the speaker. Rubber based feet also help isolating the vibrations within certain frequency ranges.

Port Position

PSB P5 is a rear-firing port speaker so you have to make sure you leave enough space between the back of the speaker and wall or bookshelf so that it has room to breathe.

Available colors

PSB P5 is available in Walnut and Black Ash.

Wall Mounting

Alpha P5 doesn't sport any built-in mounting bracket, so you need an external structure to mount it on walls.

Does the PSB P5 come with a Grille?

Alpha P5 comes with Magnetic grilles. The purpose of the grille is to protect the delicate driver elements from external impacts while still allowing the sound to pass as clearly as possible.

What's in the Box of PSB P5?

Here are the items that are included inside the box of Alpha P5:
  • 2 Bookshelf loudspeakers
  • 2 Grilles
  • 8 Self-adhesive rubber feet
  • Quick Start Guide
  • Warranty Card
  • Recommended Accessories

    Here is a list of accessories that we think you may need for the PSB Alpha P5.

    • Speaker Cable and Connectors
      • Speaker Cables with Banana Plugs: If you know the lenght of the cable you need, this is the easier option to connect your speakers with your amp.
      • Speaker Cables without Connectors: If you are not sure about the lenght or need longer than standard cables with plugs, choose this option.
      • Banana Connectors and Plugs: If you chose the cables without connectors option or already have some cable around, pick the banana plugs separately.
    • Vibration Isolators: IsoAcoustics isolators more affordable options too.
    • Acoustic Panels and Treatments: Your room is as important as your stereo equipment so acoustic treatments goes a long way in improving the overall performance.
    • Speaker Stands: Stands bring your bookshelf speakers to ideal height (rule of thumb is to have the tweeter level with your ear in your listening position), helps stability and acoustical isolation.

    User's Manual

    For more information about how to setup, use and maintain the PSB Alpha P5, use the direct link below to download the official manual document:
    Download User Manual for PSB P5

    Official Product Page

    Official manufacturer's product page for the PSB Alpha P5 speaker can be found below:
    Official Product Page for PSB P5

    Warranty

    5 Years of parts warranty and 5 Years of labor warranty is generally provided by the manufacturer.

    PSB Alpha P5 Alternatives in Passive Bookshelf Speakers
    Model Type Sensitivity Impedance Frequency
    PSB P3
    Compare
    2-way 87 dB 8 ohms 57-21k Hz
    ELAC Debut 2.0 B6.2
    Compare
    2-way 87 dB 6 ohms 44-35k Hz
    KEF Q150
    Compare
    2-way 86 dB 8 ohms 51-28k Hz
    Klipsch R-51M
    Compare
    2-way 93 dB 8 ohms 62-21k Hz
    PSB Imagine XB
    Compare
    2-way 87 dB 8 ohms 55-23k Hz
    ELAC Debut 2.0 B5.2
    Compare
    2-way 86 dB 6 ohms 46-35k Hz
    Q Acoustics 3020i
    Compare
    2-way 88 dB 6 ohms 64-30k Hz
    Klipsch RP-600M
    Compare
    2-way 96 dB 8 ohms 45-25k Hz
    Frequently Asked Questions about PSB Alpha P5
    What is the External Dimensions of PSB Alpha P5
    What is the Speaker Sensitivity of PSB Alpha P5
    is the PSB Alpha P5 an easy to drive speaker?

    PSB P5 Detailed Specifications

    General
    BrandPSB
    Full Model NamePSB Alpha P5
    Speaker Type2-way Bookshelf
    Power Range10-90 watts
    Sensitivity89 dB
    Impedance8 ohms
    Frequency Response55-21k Hz
    DRIVERS
    Woofer Size5.25-inch
    Woofer CompositionPolypropylene
    Woofer SurroundRubber
    Tweeter Size0.75-inch
    Tweeter TypeHard-Dome
    Crossover freq2500Hz
    Port Positionrear

    CONNECTIONS
    Connector Type5-way post
    Biamp InputsNo
    Port Positionrear
    PHYSICAL SPECS
    Height289.0mm ( 11-3/8-inch)
    Width172.0mm ( 6-3/4-inch)
    Depth254.0mm ( 10-inch)
    Height289.0mm ( 11-3/8-inch)
    Weight4.61kg ( 10.14 lbs)
    EnclosureBass Reflex
    FinishMDF, Wood-grain vinyl
    Available ColorsWalnut,Black Ash
    Mounting BracketNo
    Recommended Stand Height28-30
    GrilleYes
    Moisture ResistanceNo
    OTHER
    Handheld RemoteNo
    Parts Warranty5 Years
    Labor Warranty5 Years
