PSB Imagine XB is a 2-way Passive Bass Reflex Bookshelf speaker by PSB. It was released in 2013. It features a 1" Hard-Dome Tweeter and 1 x 5.25" Clay/Ceramic/Poly Woofer. The speaker has a frequency range of 55-23k Hz and a sensitivity of 87 dB. PSB Imagine XB has an MSRP of 649$ per pair.
Room Size Suitability
The size of the room where you plan to use the PSB Imagine XB is a crucial factor in your decision. We have assessed its suitability for various room sizes based on its dimensions and maximum power output:
| Listening Environment* |
Suitability |
| Near-field | Poor |
| Small Room | Average |
| Mid-size Room | Good |
| Large Room | Average |
| Very Large Room | Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2, Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: > 400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual listening experience changes depending on floor height, room shape, surface materials, listening position, speaker locations, etc.)
PSB's Imagine Series of Loudspeakers
Imagine XB is a member of PSB's Imagine series of Passive speakers. The Imagine range is PSB's mid-tier line, using the brand's transitional-cabinet and diffraction-reducing design. Below you can see the main specs of these speakers.
See all 4 PSB Imagine models compared »
PSB Imagine Series Speakers
PSB Imagine Series Speakers
**This post contains affiliate links, and we will be compensated if you make a purchase after clicking through our links. As an Amazon Associate I earn from qualifying purchases.
Frequency Response of the PSB Imagine XB Speaker
PSB Imagine XB has a Frequency response range of 55-23k Hz at ±3dB and Power Range of 20-150 watts. With a minimum frequency of 55 Hz, Imagine XB delivers moderate bass depth so depending on your use case, you might want to consider adding a subwoofer to your system.
Here we have a comparison of how Imagine XB's Low frequency value compares with the average, max and min Low frequency values in its class.
Low Frequency
Bookshelf Speakers
Thinking about a subwoofer for the PSB Imagine XB?
Crossover frequency of the PSB Imagine XB?
The Crossover frequency of the Imagine XB is set to 1800Hz. This is the threshold frequency where the higher frequency signals over this level are sent to the tweeter and the lower-frequency signals are sent to the woofer by the crossover component.
Impedance and Sensitivity
PSB Imagine XB's nominal impedance level is
8 ohms but can go down to as low as
4 ohms, and has a sensitivity of
87 dB.
Sensitivity
Bookshelf Speakers
8 Ohms is pretty much the standard nominal impedance amongst stereo speakers and amplifiers so PSB Imagine XB is not considered a difficult to drive speaker from nominal Impedance perspective.
Sensitivity
With a sensitivity level of only 87 dB, PSB Imagine XB is a difficult to drive speaker from Sensitivity perspective, make sure to choose an amplifier with a high output if you like listening to your music at high volume levels. You may especially have a hard time using Tube amplifiers which are traditionally very low power compared to Class A/B or Class D amps. Work out how loud the PSB Imagine XB plays in your room →
Minimum Impedance of the PSB Imagine XB
Even though the nominal impedance of the Imagine XB is 8 ohms, the minimum impedance level of this speaker according to PSB is 4 ohms PSB Imagine XB so while choosing an amplifier, you should ideally check if the unit you are considering can provide this impedance level.
What amplifier does the PSB Imagine XB need?
At normal listening levels in a medium room, about
15–150 W
per channel into 8 ohms.
Set your own conditions and we will rank every amplifier we cover.
Prefer to browse? Integrated amplifiers under $750, or every amplifier we cover.
Input Type
Imagine XB features 5-Way post type connectors. Bi-amping and Bi-wiring are not possible.
Work out what gauge speaker cable this run needs →
PSB Imagine XB External Dimensions and Weight
PSB Imagine XB has external dimensions of (Height x Width x Depth) 12inch x 6.75inch x 10.75inch (302 x 170 x 271mm ).
Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base area of PSB Imagine XB is approximately 460.0cm2 / 71.3inch2.
Find speakers that fit your shelf or alcove → · Work out where they should sit in the room →
WeightThe PSB Imagine XB weighs 5.60kg / 12.3lbs per piece. Here is a comparison of how Imagine XB's weight compares with the average, max and min weights in its class.
Weight
All Bookshelf Speakers
Weight
Bookshelf Speakers under $750
Cabinet type and Materials
PSB Imagine XB has a
Bass Reflex type cabinet and a MDF/Wood-grain finish. Bass Reflex type loudspeakers (aka Ported, Vented or Reflex Port) have enclosures that uses a port, hole or vent cut into the cabinet. Ported designs are generally more efficient than the Sealed designs.
Port Position
PSB Imagine XB is a rear-firing port speaker so you have to make sure you leave enough space between the back of the speaker and wall or bookshelf so that it has room to breathe.
Available colors
PSB Imagine XB is available in Black.
Wall Mounting
Imagine XB doesn't sport any built-in mounting bracket, so you need an external structure to mount it on walls.
Does the PSB Imagine XB come with a Grille?
Imagine XB comes with Magnetic grilles. The purpose of the grille is to protect the delicate driver elements from external impacts while still allowing the sound to pass as clearly as possible.

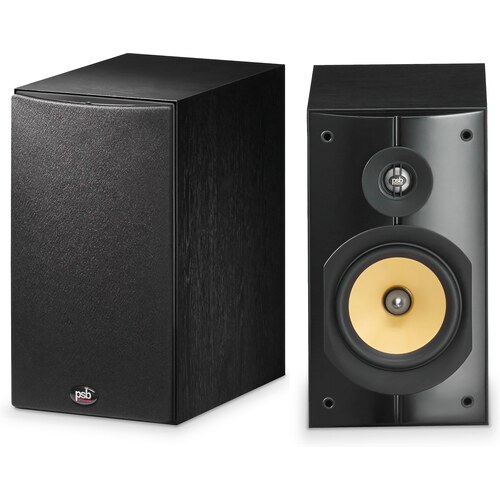

PSB Imagine XB with Grille
What's in the Box of PSB Imagine XB?
Here are the items that are included inside the box of Imagine XB:
- 2 Bookshelf loudspeakers
- 2 Grilles
- 8 Rubber feet
- Quick Start Guide
- Warranty Card
Recommended Accessories
Here is a list of accessories that we think you may need for the PSB Imagine XB.
- Speaker Cable and Connectors
- Vibration Isolators: IsoAcoustics isolators are our favorite isolators but you may find more affordable options too.
- Acoustic Panels and Treatments: Your room is as important as your stereo equipment so acoustic treatments goes a long way in improving the overall performance.
- Speaker Stands: Stands bring your bookshelf speakers to ideal height (rule of thumb is to have the tweeter level with your ear in your listening position), helps stability and acoustical isolation.
User's Manual
For more information about how to setup, use and maintain the PSB Imagine XB, use the direct link below to download the official manual document:
Download User Manual for PSB Imagine XB
Official Brochure
Here is a link to download the official brochure for the PSB Imagine XB speaker:
Official Brochure for PSB Imagine XB
Official Product Page
Official manufacturer's product page for the PSB Imagine XB speaker can be found below:
Official Product Page for PSB Imagine XB
Warranty
5 Years of parts warranty and 5 Years of labor warranty is generally provided by the manufacturer.
