In this review, we will be comparing Alpha T20 and S50, two Passive Floor-standing speakers from PSB and Polk Audio.
Let's have a brief look at the main features
of PSB Alpha T20 and Polk S50 first before getting into our more
detailed comparison.
PSB Alpha T20 Key Specs
- 2-way Design
- 0.75" Dome Tweeter
- 2 x 5.25" Polypropylene Woofer
- 36-21k Hz Frequency Response
- 90 dB Sensitivity
- Impedance: 8ohms
- Power Range:15-120watts
- Weight:11.89kg
- Dimensions (H x W x D): 869.0" x 8-5/16" x 9-13/16"( 869.0 x 212.0 x 250.0mm )
Polk S50 Key Specs
- 2-way Design
- 1" Dome Tweeter
- 2 x 5.25" Mica-reinforced polypropylene Woofer
- 33-40k Hz Frequency Response
- 89 dB Sensitivity
- Impedance: 8ohms
- Power Range:20-150watts
- Weight:14.50kg
- Dimensions (H x W x D): 951.0" x 10-5/16" x 11-1/16"( 951.0 x 262.0 x 281.0mm )
What size room are the PSB Alpha T20 and Polk S50 speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision
factor. Here we have compared their suitability to various sizes of environments considering their size
and max power parameters:
| Listening Environment* |
PSB Alpha T20 |
Polk S50 |
| Near-field |
Bad |
Bad |
| Small Room |
Poor |
Poor |
| Mid-size Room |
Good |
Good |
| Large Room |
Good |
Good |
| Very Large Room |
Poor |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2,
Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: >
400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual
listening experience changes depending on floor height, room shape, surface materials, listening
position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the PSB Alpha T20 and Polk S50 compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both Alpha T20 and S50 are 2-way speakers.
| Driver |
PSB Alpha T20 |
Polk S50 |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
0.75-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
2 x 5.25-inch
|
2 x 5.25-inch
|
Alpha T20 features a 0.75" anodized aluminum with front waveguide Dome Tweeter and 2 x 5.25" Polypropylene Woofer with a Crossover frequency at 2500Hz. On the other hand, the S50 features a 1" Terylene Dome Tweeter and 2 x 5.25" Mica-reinforced polypropylene Woofer with a Crossover frequency at 2500Hz.
Frequency Response
Alpha T20 has a frequency range of 36-21k Hz whereas S50 has a frequency range of 33-40k Hz. With a minimum frequency of 33Hz, the S50 can go slightly deeper then the Alpha T20's min frequency of 36Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the Floor-standing class in our database.
Low Frequency
Floor-standing Speakers
High Frequency
Floor-standing Speakers
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
Alpha T20 and S50 have the same Impedance of 8 ohms but where they differ is the sensitivity levels. Alpha T20 sensitivity is rated at 90 dB and the S50's is at 89 dB. This 1 dB difference makes the PSB Alpha T20 a more sensitive speaker compared to Polk S50, hence will play louder with the same amount of watts.
Sensitivity
Floor-standing Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using
an amplifier within this range ensures the nominal performance , inputting a power that is higher than the
max wattage can result in a damaged speaker.
Alpha T20 can handle a max power of 150 watts RMS from the amp the whereas Alpha T20 has a max power handling value of 120 watts RMS , 30 watts less than the S50.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
Both Alpha T20 and S50 features dual binding post speaker terminals for bi-amping or bi-wiring.
PSB Alpha T20's 5-Way post terminals allows Bi-amping or bi-wiring
Polk S50's 5-way post terminals allows Bi-amping or bi-wiring
Cabinet Type and Port Position
Alpha T20 has a rear firing port whereas S50 has a bottom firing ports. Polk S50's bottom-firing port gives more flexibility in placement in regards to proximity to walls compared to PSB Alpha T20 with its rear-firing port.
Polk S50 Port
Physical Specs

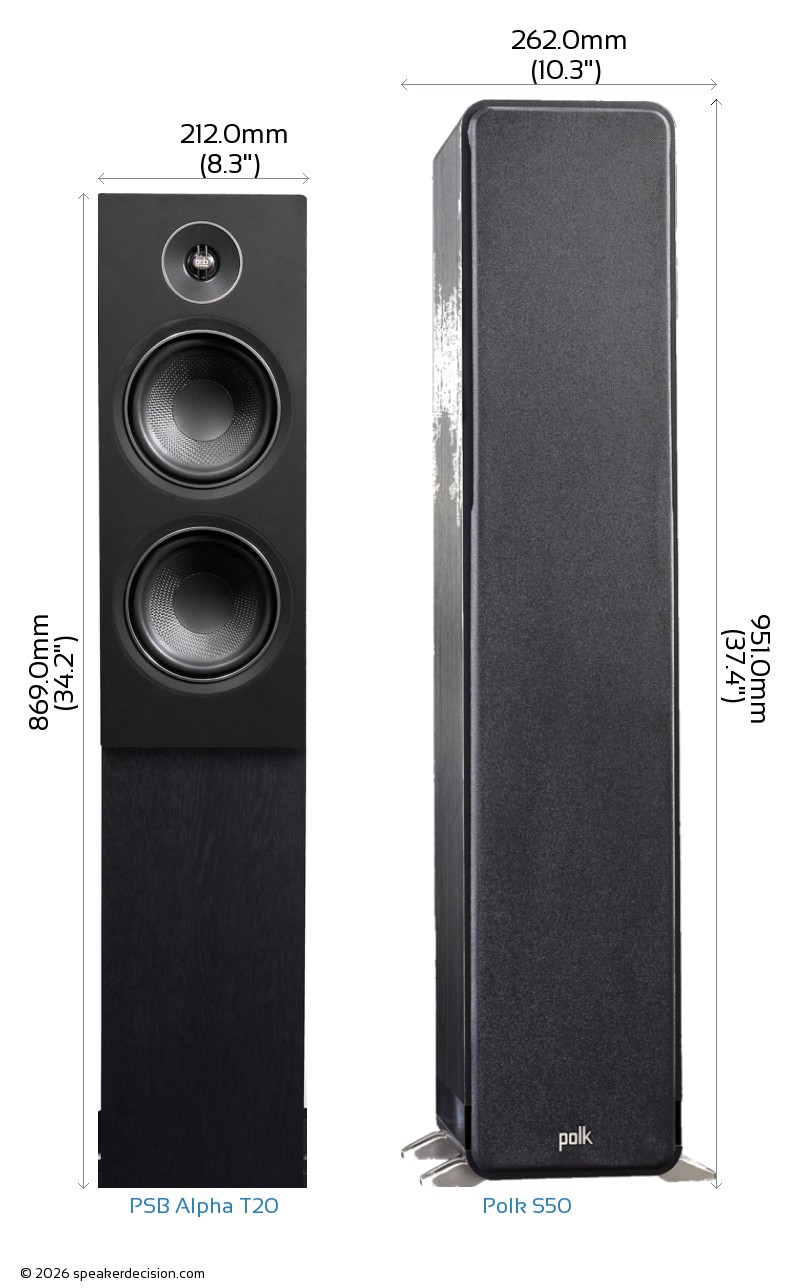

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare PSB Alpha T20's and Polk S50's external dimensions. PSB Alpha T20 has external dimensions of 869.0 x 212.0 x 250.0mm ( 34-3/16 x 8-5/16 x 9-13/16inch) whereas Polk S50 has external dimensions of 951.0 x 262.0 x 281.0mm ( 37-7/16 x 10-5/16 x 11-1/16inch) .
Polk S50 is clearly the larger of the two speakers. Its body is 50mm wider, 82mm taller and 31mm deeper than PSB Alpha T20.
Base Surface Area Comparison
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base surface area of the PSB Alpha T20 is approximately 530.0cm2 / 82.2inch2 and base area of the Polk S50 is approximately 736.2cm2 / 114.1inch2. The Alpha T20 requires 28% less surface area than the S50 which gives it a small advantage on placement in tight spaces.
Weight Comparison The weight of a loudspeaker can become an important factor if you need to move and reposition the unit often. Weight of a speaker can also "sometimes" be an indicator of the rigidity of the enclosure and the quality of the internal components used. The PSB Alpha T20 weighs 11.89kg / 26.2lbs and the Polk S50 weighs 14.50kg / 31.9lbs. This makes the S50 22% heavier than the Alpha T20.
Here is a comparison of how Alpha T20 and S50's weights compare with the average, max and min weights in Passive Floor-standing class.
Weight
All Floor-standing Speakers
What's in the Box of PSB Alpha T20?
Here are the items that are included inside the box of Alpha T20:
2 Floorstanding loudspeakers2 Grilles8 Rubber feet8 Spike feet8 Hex-nutsQuick Start GuideWarranty Card
What's in the Box of Polk S50?
Here are the items that come with the S50:
Floorstanding loudspeakerGrille (attached)4 Feet (pre-installed)Owners ManualOnline Product Registration
 Sensitivity |
90 dB
vs
89 dB
|
Play louder with same amount of amplification power |
 Height |
869mm
vs
951mm
|
Easier to fit in smaller spaces |
 Base Surface Area |
530cm2
vs
736cm2
|
Takes less floor space |
 Max Input Power |
150 watts
vs
120 watts
|
Handle more power from your amplifier |
 Low Frequency Response |
33 Hz
vs
36 Hz
|
Generates deeper bass |
 High Frequency Response |
40k Hz
vs
21k Hz
|
Generates higher frequency |
| General |
PSB Alpha T20 |
Polk Audio Signature S50 |
| Brand |
PSB |
Polk Audio |
| Speaker Type |
Floor-standing speaker |
Floor-standing speaker |
| Power Range |
15-120 watts |
20-150 watts |
| Sensitivity |
90 dB |
89 dB |
| Impedance |
8 ohms |
8 ohms |
| Frequency Response |
36-21k Hz |
33-40k Hz |
Drivers |
|
|
| Woofer Quantity |
2 |
2 |
| Woofer Size |
5.25" |
5.25" |
| Woofer Composition |
Polypropylene |
Mica-reinforced polypropylene |
| Woofer Surround Material |
Rubber |
Butyl rubber |
| Tweeter Size |
0.75" |
1" |
| Tweeter Type |
Dome |
Dome |
| Aimable Tweeter |
No |
No |
| Midrange Driver |
No |
No |
| Crossover Frequency |
2500Hz |
2500Hz |
| Firing Direction |
rear |
bottom |
Physical Specs |
|
|
| Height |
869.0mm (34.2") |
951.0mm (37.4") |
| Width |
212.0mm (8.3") |
262.0mm (10.3") |
| Depth |
250.0mm (9.8") |
281.0mm (11.1") |
| Weight |
11.89kg (26.2lbs) |
14.50kg (31.9lbs) |
| Enclosure |
Bass Reflex |
Bass Reflex |
| Finish |
MDF, Wood-grain vinyl |
Meddite MDF |
| Available Colors |
Black |
Black |
| Grille |
Yes |
Yes |
| Moisture Resistancy |
No |
No |
Connections |
|
|
| Biamp Inputs |
Yes |
Yes |
Other |
|
|
| Parts Warranty |
5 Years |
5 Years |
| Labor Warranty |
5 Years |
5 Years |
