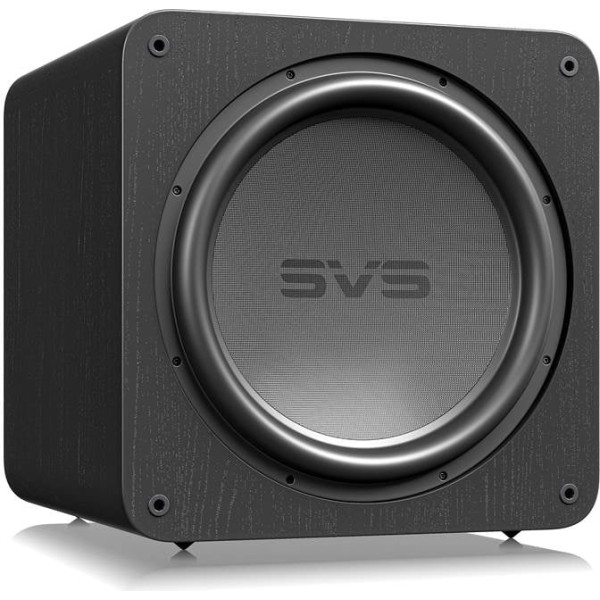

SB17 Ultra R Evolution is a Sealed type Powered Subwoofer by SVS with a frequency range of 15-320 Hz. It was released in 2024. It features 1 x 17" Woofer, and powered by a 2800 watts amplifier.
SB17 Ultra R Evolution is a member of SVS's Ultra series of Powered subwoofers. The Ultra range is SVS's flagship line of speakers and subwoofers. Below you can see the main specs of these subwoofers as well as review and comparison links.
SVS Ultra Series Subwoofers
SVS Ultra Series Speakers
Frequency Response
Where should the crossover go? → · What will your room do to this bass? →
SVS SB17 Ultra R Evolution has a Frequency response range of 15-320 Hz. Thanks to its 1 x 17-inch driver and 2800 watts RMS (6000 watts MAX) amplifier, at 15Hz the SB17 Ultra R Evolution can generate bass levels that is even below 20Hz which is considered to be the bottom limit of Full Range sound (20Hz -20kHz) that human can hear.
Here we have a comparison of how SB17 Ultra R Evolution's Low and High frequency values compare with the average, max and min Low and High frequency values in its class.
Low Frequency
Powered Subwoofers
SVS SB17 Ultra R Evolution
High Frequency
Subwoofer Speakers
SVS SB17 Ultra R Evolution
Among all subwoofers in our database with a max MSRP price of 3000$, these are the 5 Powered Subwoofer models that can reach deeper bass levels than the SVS SB17 Ultra R Evolution's 15Hz:
Inputs and Outputs
SVS SB17 Ultra R Evolution External Dimensions and Weight
SVS SB17 Ultra R Evolution has external dimensions of (Height x Width x Depth) (508.0 x 495.3 x 539.8mm ).
Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base area of SVS SB17 Ultra R Evolution is approximately 2673.6cm2 / 414.4inch2.
Find speakers that fit your shelf or alcove →
WeightThe SVS SB17 Ultra R Evolution weighs 56.25kg / 123.8lbs. Weight of a subwoofer is an important factor when you need to move and reposition the unit often to find the optimal positioning, also known as 'Subwoofer Crawling'. Here is a comparison of how SB17 Ultra R Evolution's weight compares with the average, max and min weights in its class.
Weight
All Subwoofer Speakers
SVS SB17 Ultra R Evolution
Weight
Subwoofer Speakers under $3000
SVS SB17 Ultra R Evolution
Recommended Accessories
Here is a list of accessories that we think you may need for the SVS SB17 Ultra R Evolution.
Warranty
5 Years of parts warranty and 5 Years of labor warranty is generally provided by the manufacturer.
| General |
| Brand | SVS |
| Full Model Name | SVS SB17 Ultra R Evolution |
| Type | Powered Subwoofer |
| Release Date | 2024 |
| Frequency Response | 15-320 Hz |
| Enclosure Type | Sealed |
Amplifier & Driver |
| Power (Peak) | 6000 watts |
| Woofer | 17-inch |
| Controls & Connections |
Physical |
| Dimensions (HxWxD) | 20" x 19-1/2" x 21-1/4" (508.0 x 495.3 x 539.8mm) |
| Weight | 56.25 kg (124 lbs) |
| Parts Warranty | 5 Years |
| Labor Warranty | 5 Years |
