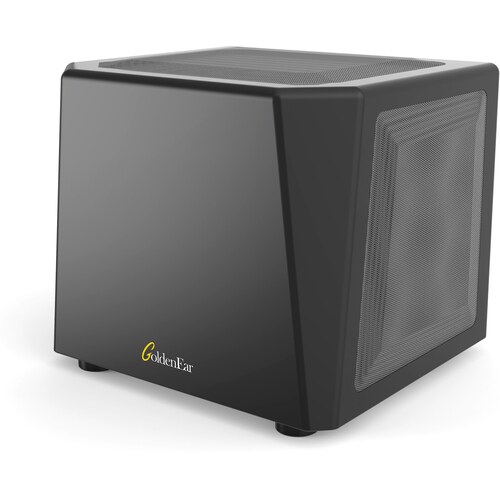

SuperSub XXL is a Passive Radiator type Powered Subwoofer by GoldenEar with a frequency range of 10-250 Hz. It was released in 2015. It features 2 x 12" Fiber Woofer, and powered by a 1600 watts amplifier. SuperSub XXL also employs two 13-inch x 15-inch passive radiators.
SuperSub XXL is a member of GoldenEar's SuperSub series of Powered subwoofers. The SuperSub range are GoldenEar's high-output powered subwoofers with dual opposing drivers. Below you can see the main specs of these subwoofers as well as review and comparison links.
GoldenEar SuperSub Series Subwoofers
**This post contains affiliate links, and we will be compensated if you make a purchase after clicking through our links. As an Amazon Associate I earn from qualifying purchases.
Frequency Response
Where should the crossover go? → · What will your room do to this bass? →
GoldenEar SuperSub XXL has a Frequency response range of 10-250 Hz. Thanks to its 2 x 12-inch driver and 1600 watts RMS amplifier, at 10Hz the SuperSub XXL can generate bass levels that is even below 20Hz which is considered to be the bottom limit of Full Range sound (20Hz -20kHz) that human can hear.
Here we have a comparison of how SuperSub XXL's Low and High frequency values compare with the average, max and min Low and High frequency values in its class.
Low Frequency
Powered Subwoofers
High Frequency
Subwoofer Speakers
As you can see from the chart, GoldenEar SuperSub XXL with its 10 Hz features the lowest Low Frequency level among the Subwoofer speakers in our database, promising a very good bass range.
Low-Pass CrossoverGoldenEar SuperSub XXL has a variable Low-pass filter (LFP) which lets you choose a frequency level between 40-150 Hz in order to block any frequencies above that point from reaching the amplifier.
Inputs and Outputs
- PreampLevel Inputs: Stereo RCA/LFE
- SpeakerLevel Inputs: No
- SpeakerLevel Outputs: No
- Wireless: No
GoldenEar SuperSub XXL External Dimensions and Weight
GoldenEar SuperSub XXL has external dimensions of (Height x Width x Depth) 17-9/16inch x 19-1/16inch x 17-1/16inch (447.0 x 485.0 x 434.0mm ).
Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base area of GoldenEar SuperSub XXL is approximately 2104.9cm2 / 326.3inch2.
To get a better perspective on the real life size of GoldenEar SuperSub XXL, let's compare it with a standard size Compact Disc which has a diameter of 4.7inch (120mm).
GoldenEar SuperSub XXL Speaker Size Compared to a Compact Disc
Here we place the GoldenEar SuperSub XXL virtually next to a standard width amplifier and turntable on a media center to get a better idea about the size.
GoldenEar SuperSub XXL Subwoofer next to a Media Stand
Find speakers that fit your shelf or alcove →
WeightThe GoldenEar SuperSub XXL weighs 37.27kg / 82lbs. Weight of a subwoofer is an important factor when you need to move and reposition the unit often to find the optimal positioning, also known as 'Subwoofer Crawling'. Here is a comparison of how SuperSub XXL's weight compares with the average, max and min weights in its class.
Weight
All Subwoofer Speakers
Weight
Subwoofer Speakers under $3000
Cabinet type and Materials
GoldenEar SuperSub XXL has a
Passive Radiator type cabinet.
Port Position
GoldenEar SuperSub XXL is a side-firing port speaker.
What's in the Box of GoldenEar SuperSub XXL?
Here are the items that are included inside the box of SuperSub XXL:
- Powered Subwoofer
- 10-feet AC power cord
- Owners Manual
Recommended Accessories
Here is a list of accessories that we think you may need for the GoldenEar SuperSub XXL.
Warranty
3 Years of parts warranty and 3 Years of labor warranty is generally provided by the manufacturer.
| General |
| Brand | GoldenEar |
| Full Model Name | GoldenEar SuperSub XXL |
| Type | Powered Subwoofer |
| Release Date | 2015 |
| Frequency Response | 10-250 Hz |
| Enclosure Type | Passive Radiator |
| Enclosure | Passive Radiator |
| Firing Direction | Side |
| Port Position | side |
Amplifier & Driver |
| Power (RMS) | 1600 watts |
| Woofer | 2 x 12-inch Fiber |
| Passive Radiator | two 13-inch x 15-inch |
| Controls & Connections |
| Low-pass Crossover | 40-150 Hz |
| Phase Control | No |
| Wireless | No |
| Line-level Inputs | Stereo RCA/LFE |
| Speaker-level Inputs | No |
| Speaker-level Outputs | No |
Physical |
| Dimensions (HxWxD) | 17-9/16" x 19-1/16" x 17-1/16" (447.0 x 485.0 x 434.0mm) |
| Weight | 37.27 kg (82 lbs) |
| Parts Warranty | 3 Years |
| Labor Warranty | 3 Years |
