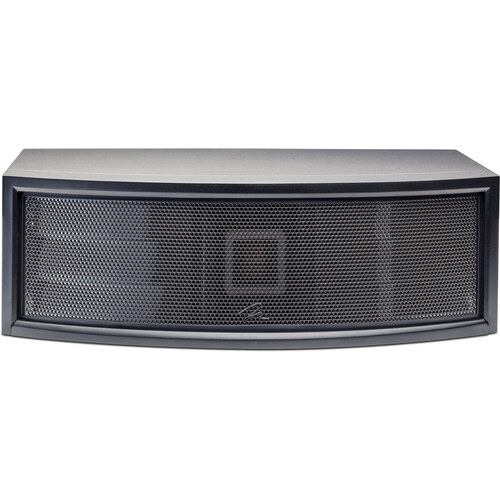

MartinLogan ElectroMotion ESL C is a 3-way Passive Radiator Center Channel speaker by MartinLogan. It was released in 2016. Center channel speaker is an important component of a home theater system set-up as it delivers the listener significant part of the on-screen dialogue from your television. It features a 1 x 1-7/16" Folded Motion Tweeter, 1 x 9 x 6.375" Midrange and 2 x 5.25" high-rigidity aluminum woofers Woofer. The speaker has a frequency range of 66-23k Hz and a sensitivity of 89 dB. MartinLogan ESL C has an MSRP of 1700$.
Room Size Suitability
The size of the room where you plan to use the MartinLogan ESL C is a crucial factor in your decision. We have assessed its suitability for various room sizes based on its dimensions and maximum power output:
| Listening Environment* |
Suitability |
| Near-field | Poor |
| Small Room | Poor |
| Mid-size Room | Good |
| Large Room | Good |
| Very Large Room | Average |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2, Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: > 400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual listening experience changes depending on floor height, room shape, surface materials, listening position, speaker locations, etc.)
MartinLogan ESL C Speaker Structure
MartinLogan's ElectroMotion Series of Loudspeakers
ElectroMotion ESL C is a member of MartinLogan's ElectroMotion series of Passive speakers. The ElectroMotion range are MartinLogan's most affordable electrostatic hybrid speakers. Below you can see the main specs of these speakers.
See all 5 MartinLogan ElectroMotion models compared »
MartinLogan ElectroMotion Series Speakers
**This post contains affiliate links, and we will be compensated if you make a purchase after clicking through our links. As an Amazon Associate I earn from qualifying purchases.
Frequency Response of the MartinLogan ESL C Speaker
MartinLogan ESL C has a Frequency response range of 66-23k Hz and Power Range of 20-300 watts.
Here we have a comparison of how ElectroMotion ESL C's Low frequency value compares with the average, max and min Low frequency values in its class.
Low Frequency
Center Channel Speakers
Impedance and Sensitivity
MartinLogan ESL C's nominal impedance level is
4 ohms and has a sensitivity of
89 dB.
Sensitivity
Center Channel Speakers
Nominal Impedance of the 4 Ohms means that the MartinLogan ElectroMotion ESL C is a difficult to drive speaker from nominal Impedance perspective, make sure that you choose an amplifier than can provide 4 Ohms for this speaker.
Many AVRs (audio/video receiver) in the market may have difficulty when the speakers dip below the 4 Ohms levels (this may cause clipping or even physical damage), so we recommend to not pair the MartinLogan ElectroMotion ESL C with an AVR but use an Integrated Amplifier instead.
Sensitivity
89dB of the MartinLogan ElectroMotion ESL C is an average sensitivity for stereo speaker so it is neither easy nor difficult to drive Sensitivity wise. Work out how loud the MartinLogan ESL C plays in your room →
Running more than one pair from a single amplifier? Check the load it would present →
What amplifier does the MartinLogan ESL C need?
At normal listening levels in a medium room, about
19–300 W
per channel into 4 ohms.
Set your own conditions and we will rank every amplifier we cover.
Prefer to browse? Integrated amplifiers under $2,000, or every amplifier we cover.
Input Type
ElectroMotion ESL C features Binding post type connectors. Bi-amping and Bi-wiring are not possible.
Work out what gauge speaker cable this run needs →
MartinLogan ESL C Back View
Recommended Break In
Allow 72 hours of break-in at 90 dB.
MartinLogan ESL C External Dimensions and Weight
MartinLogan ESL C has external dimensions of (Height x Width x Depth) 7-5/8 x 22-7/8 x 16-1/8inch (194.0 x 582.0 x 410.0mm ).
Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base area of MartinLogan ESL C is approximately 2386.2cm2 / 369.9inch2.
Find speakers that fit your shelf or alcove →
WeightThe MartinLogan ESL C weighs 14.55kg / 32lbs per piece. Here is a comparison of how ElectroMotion ESL C's weight compares with the average, max and min weights in its class.
Weight
All Center Channel Speakers
Weight
Center Channel Speakers under $2000
Cabinet type and Materials
MartinLogan ESL C has a
Passive Radiator type cabinet.
MartinLogan ESL C - Side View
Available colors
MartinLogan ESL C is available in Black.
Does the MartinLogan ESL C come with a Grille?
ElectroMotion ESL C comes with grilles. The purpose of the grille is to protect the delicate driver elements from external impacts while still allowing the sound to pass as clearly as possible.
What's in the Box of MartinLogan ESL C?
Here are the items that are included inside the box of ElectroMotion ESL C:
- Center-channel loudspeaker
- Grille
- AC power supply (attached 10-feet DC cord)
- User-feets Manual (En/Fr)
- Product Registration Card
Recommended Accessories
Here is a list of accessories that we think you may need for the MartinLogan ElectroMotion ESL C.
User's Manual
For more information about how to setup, use and maintain the MartinLogan ElectroMotion ESL C, use the direct link below to download the official manual document:
Download User Manual for MartinLogan ESL C
Official Brochure
Here is a link to download the official brochure for the MartinLogan ElectroMotion ESL C speaker:
Official Brochure for MartinLogan ESL C
Official Product Page
Official manufacturer's product page for the MartinLogan ElectroMotion ESL C speaker can be found below:
Official Product Page for MartinLogan ESL C
Warranty
5 Yrs w/ Registration of parts warranty and 5 Yrs w/ Registration of labor warranty is generally provided by the manufacturer.
