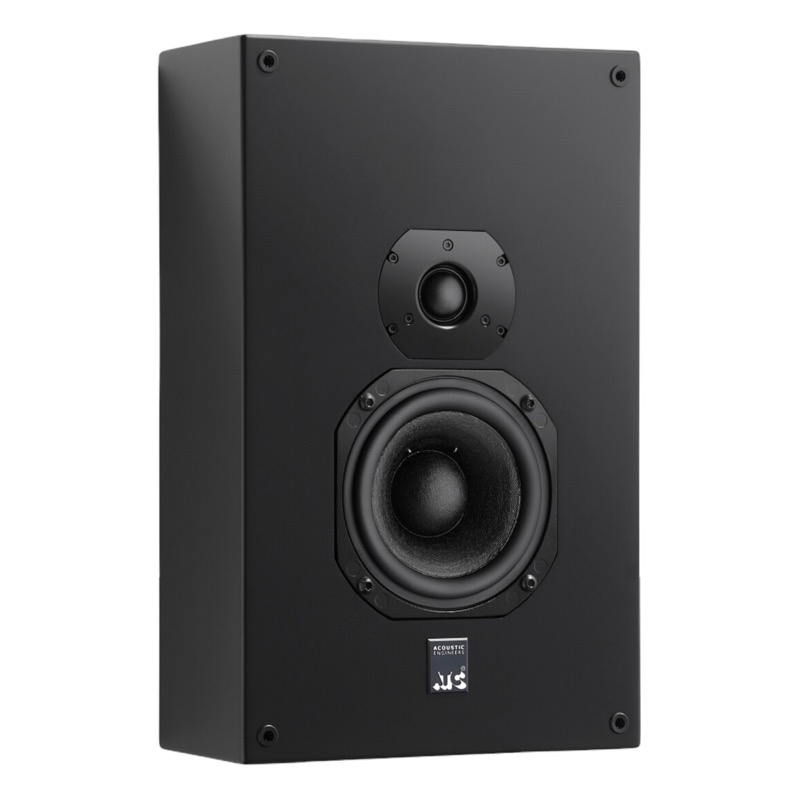

ATC HTS7 is a 2-way Passive Sealed On-wall speaker by ATC. It was released in 2022. It features a 0.98" Tweeter and 1 x " Woofer.
High Frequency: ATC 25mm Neo Soft Dome
The speaker has a frequency range of 44-22k Hz and a sensitivity of 84 dB. ATC HTS7 has an MSRP of 999$.
Room Size Suitability
The size of the room where you plan to use the ATC HTS7 is a crucial factor in your decision. We have assessed its suitability for various room sizes based on its dimensions and maximum power output:
| Listening Environment* |
Suitability |
| Near-field | Good |
| Small Room | Good |
| Mid-size Room | Average |
| Large Room | Poor |
| Very Large Room | No way |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2, Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: > 400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual listening experience changes depending on floor height, room shape, surface materials, listening position, speaker locations, etc.)
**This post contains affiliate links, and we will be compensated if you make a purchase after clicking through our links. As an Amazon Associate I earn from qualifying purchases.
Frequency Response of the ATC HTS7 Speaker
ATC HTS7 has a Frequency response range of 44-22k Hz at ±3dB and Power Range of 75 to 300 Watts watts. With a minimum frequency of 44 Hz, HTS7 delivers deep bass that will likely satisfy most listeners, especially those who enjoy music. However, movie enthusiasts and music fans who prefer a full range of sound may still benefit from adding a subwoofer.
Here we have a comparison of how HTS7's Low frequency value compares with the average, max and min Low frequency values in its class.
Low Frequency
On-wall Speakers
Thinking about a subwoofer for the ATC HTS7?
As you can see from the chart, ATC HTS7 with its 44 Hz features the lowest Low Frequency level among the On-wall speakers in our database, promising a very good bass range.
Crossover frequency of the ATC HTS7?
The crossover frequency of the HTS7 is set to 2.5kHz. This is the threshold frequency where the higher frequency signals over this level are sent to the tweeter and the lower-frequency signals are sent to the woofer by the crossover component.
Impedance and Sensitivity
ATC HTS7's nominal impedance level is
8 ohms and has a sensitivity of
84 dB.
Sensitivity
On-wall Speakers
8 Ohms is pretty much the standard nominal impedance amongst stereo speakers and amplifiers so ATC HTS7 is not considered a difficult to drive speaker from nominal Impedance perspective.
Sensitivity
With a sensitivity level of only 84 dB, ATC HTS7 is a difficult to drive speaker from Sensitivity perspective, make sure to choose an amplifier with a high output if you like listening to your music at high volume levels. You may especially have a hard time using Tube amplifiers which are traditionally very low power compared to Class A/B or Class D amps. Work out how loud the ATC HTS7 plays in your room →
What amplifier does the ATC HTS7 need?
At normal listening levels in a medium room, about
30–300 W
per channel into 8 ohms.
Set your own conditions and we will rank every amplifier we cover.
Prefer to browse? Integrated amplifiers under $1,000, or every amplifier we cover.
Input Type
HTS7 features Binding Posts/4mm Plugs type connectors. Bi-amping and Bi-wiring are not possible.
Work out what gauge speaker cable this run needs →
ATC HTS7 External Dimensions and Weight
ATC HTS7 has external dimensions of (Height x Width x Depth) 15.35 x 9.65 x 5.39inch (390.0 x 245.0 x 137.0mm ).
Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base area of ATC HTS7 is approximately 335.7cm2 / 52.0inch2.
Find speakers that fit your shelf or alcove →
WeightThe ATC HTS7 weighs 8.00kg / 17.6lbs per piece. Here is a comparison of how HTS7's weight compares with the average, max and min weights in its class.
Weight
All On-wall Speakers
Weight
On-wall Speakers under $1000
Cabinet type and Materials
ATC HTS7 has a
Sealed type cabinet.
Does the ATC HTS7 come with a Grille?
HTS7 comes with grilles. The purpose of the grille is to protect the delicate driver elements from external impacts while still allowing the sound to pass as clearly as possible.
Recommended Accessories
Here is a list of accessories that we think you may need for the ATC HTS7.
Official Product Page
Official manufacturer's product page for the ATC HTS7 speaker can be found below:
Official Product Page for ATC HTS7
