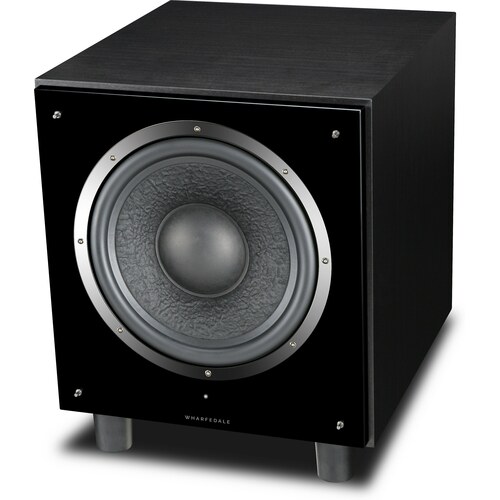

SW-12 is a Ported type Powered Subwoofer by Wharfedale with a frequency range of 35-120 Hz. It was released in 2016. It features 1 x 12" Paper Woofer, and powered by a 300 watts amplifier.
SW-12 is a member of Wharfedale's SW series of Powered subwoofers. The SW range are Wharfedale's affordable powered subwoofers. Below you can see the main specs of these subwoofers as well as review and comparison links.

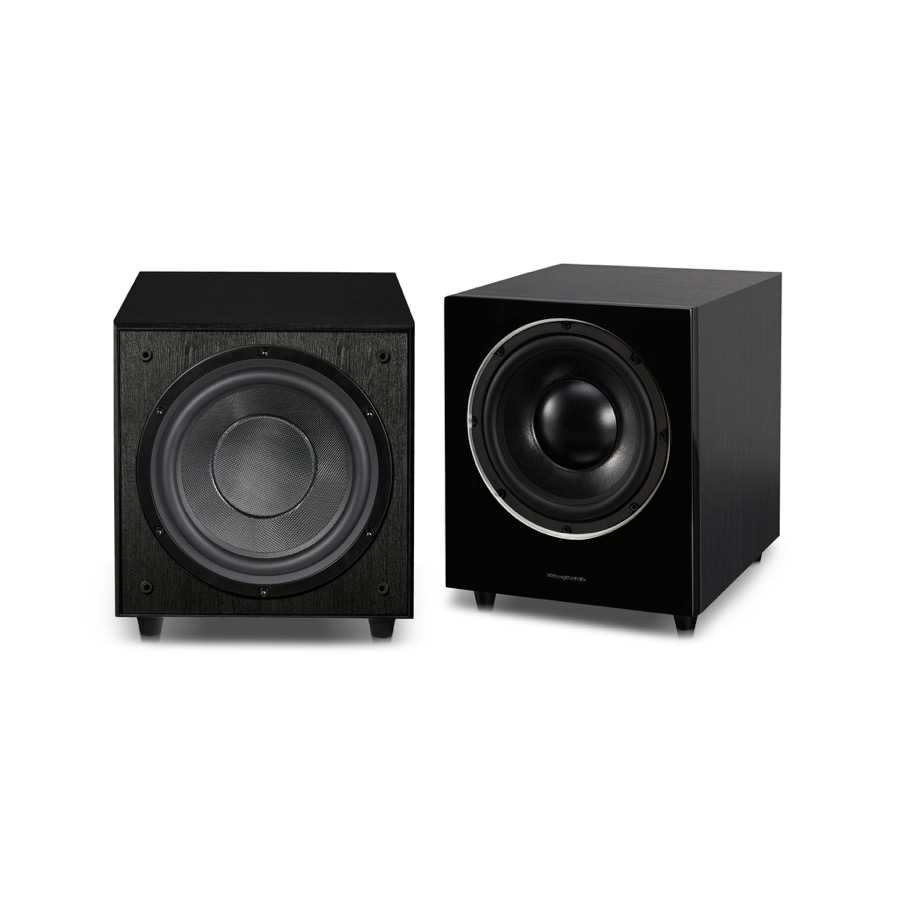

Wharfedale SW Series Subwoofers
Wharfedale SW Series Speakers
**This post contains affiliate links, and we will be compensated if you make a purchase after clicking through our links. As an Amazon Associate I earn from qualifying purchases.
Frequency Response
Where should the crossover go? → · What will your room do to this bass? →
Wharfedale SW-12 has a Frequency response range of 35-120 Hz.
Here we have a comparison of how SW-12's Low and High frequency values compare with the average, max and min Low and High frequency values in its class.
Low Frequency
Powered Subwoofers
High Frequency
Subwoofer Speakers
Among all subwoofers in our database with a max MSRP price of 1000$, these are the 5 Powered Subwoofer models that can reach deeper bass levels than the Wharfedale SW-12's 35Hz:
Low-Pass CrossoverWharfedale SW-12 has a variable Low-pass filter (LFP) which lets you choose a frequency level between 40-150 Hz in order to block any frequencies above that point from reaching the amplifier.
Inputs and Outputs
- PreampLevel Inputs: Stereo RCA/LFE
- SpeakerLevel Inputs: No
- SpeakerLevel Outputs: No
- Wireless: No
Wharfedale SW-12 External Dimensions and Weight
Wharfedale SW-12 has external dimensions of (Height x Width x Depth) 18-7/8inch x 15-13/16inch x 20-1/8inch (480.0 x 402.0 x 512.0mm ).
Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base area of Wharfedale SW-12 is approximately 2058.2cm2 / 319.0inch2.
To get a better perspective on the real life size of Wharfedale SW-12, let's compare it with a standard size Compact Disc which has a diameter of 4.7inch (120mm).
Wharfedale SW-12 Speaker Size Compared to a Compact Disc
Here we place the Wharfedale SW-12 virtually next to a standard width amplifier and turntable on a media center to get a better idea about the size.
Wharfedale SW-12 Subwoofer next to a Media Stand
Find speakers that fit your shelf or alcove →
WeightThe Wharfedale SW-12 weighs 21.54kg / 47.4lbs. Weight of a subwoofer is an important factor when you need to move and reposition the unit often to find the optimal positioning, also known as 'Subwoofer Crawling'. Here is a comparison of how SW-12's weight compares with the average, max and min weights in its class.
Weight
All Subwoofer Speakers
Weight
Subwoofer Speakers under $1000
How does the Wharfedale SW-12 compare to the Wharfedale SW-15?
One of the natural alternative to the Wharfedale SW-12 is the SW-15 which is located one step higher in Wharfedale's Powered Subwoofer selection.
Check the Detailed Comparison of Wharfedale SW-12 vs SW-15 for more details.
Cabinet type and Materials
Wharfedale SW-12 has a
Bass Reflex type cabinet. Ported subwoofers are generally accepted to be more suitable for home theatre systems whereas the sealed designs are preferred for music oriented systems.
Port Position
Wharfedale SW-12 is a front-firing port speaker, which gives you more flexibility compared to rear firing speakers when you need to place it close against a wall or other surfaces.
Does the Wharfedale SW-12 come with a Grille?
SW-12 comes with grilles. The purpose of the grille is to protect the delicate driver elements from external impacts while still allowing the sound to pass as clearly as possible.
What's in the Box of Wharfedale SW-12?
Here are the items that are included inside the box of SW-12:
- Powered subwoofer
- Grille
- 6.5-feet AC power cord
- User-feets Manual
Recommended Accessories
Here is a list of accessories that we think you may need for the Wharfedale SW-12.
Warranty
3 Years of parts warranty and 3 Years of labor warranty is generally provided by the manufacturer.
| General |
| Brand | Wharfedale |
| Full Model Name | Wharfedale SW-12 |
| Type | Powered Subwoofer |
| Release Date | 2016 |
| Frequency Response | 35-120 Hz |
| Enclosure Type | Ported |
| Enclosure | Bass Reflex |
| Firing Direction | Front |
| Port Position | front |
Amplifier & Driver |
| Power (RMS) | 300 watts |
| Woofer | 12-inch Paper |
| Controls & Connections |
| Low-pass Crossover | 40-150 Hz |
| Phase Control | Yes |
| Wireless | No |
| Line-level Inputs | Stereo RCA/LFE |
| Speaker-level Inputs | No |
| Speaker-level Outputs | No |
Physical |
| Dimensions (HxWxD) | 18-7/8" x 15-13/16" x 20-1/8" (480.0 x 402.0 x 512.0mm) |
| Weight | 21.54 kg (47.4 lbs) |
| Grille | Yes |
| Parts Warranty | 3 Years |
| Labor Warranty | 3 Years |
