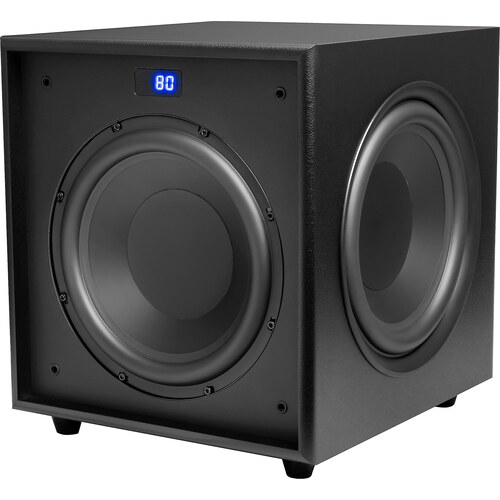

Black TreVoce 12 PRO is a Passive Radiator type Powered Subwoofer by OSD with a frequency range of 18-250 Hz. It was released in 2022. It features 1 x 12" Woofer, and powered by a 300 watts amplifier.
Frequency Response
Where should the crossover go? → · What will your room do to this bass? →
OSD Black TreVoce 12 PRO has a Frequency response range of 18-250 Hz. Thanks to its 1 x 12-inch driver and 300 watts RMS (800 watts MAX) amplifier, at 18Hz the Black TreVoce 12 PRO can generate bass levels that is even below 20Hz which is considered to be the bottom limit of Full Range sound (20Hz -20kHz) that human can hear.
Here we have a comparison of how Black TreVoce 12 PRO's Low and High frequency values compare with the average, max and min Low and High frequency values in its class.
Low Frequency
Powered Subwoofers
High Frequency
Subwoofer Speakers
Among all subwoofers in our database priced under $1,000, these are the 5 Powered Subwoofer models that can reach deeper bass levels than the OSD Black TreVoce 12 PRO's 18Hz:
Inputs and Outputs
OSD Black TreVoce 12 PRO External Dimensions and Weight
OSD Black TreVoce 12 PRO has external dimensions of (Height x Width x Depth) (450.9 x 404.8 x 473.1mm ).
Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base area of OSD Black TreVoce 12 PRO is approximately 1915.1cm2 / 296.8inch2.
Millimetres are hard to picture, so here is the OSD Black TreVoce 12 PRO drawn to scale next to the Klipsch RP-1200SW, the subwoofer our readers compare it with most often.
Size, drawn to scale
Both subwoofers and both views share one scale, so everything here is directly comparable. Hover a box for its dimensions.
One scale for both, standing on the same floor and pushed back to the same wall, so the bigger one visibly takes more of the room.
Klipsch RP-1200SW needs about 49% more floor area. Klipsch RP-1200SW stands 186mm further into the room. Klipsch RP-1200SW is 31mm taller.
Full comparison: OSD Black TreVoce 12 PRO vs Klipsch RP-1200SW ›
Find speakers that fit your shelf or alcove →
WeightThe OSD Black TreVoce 12 PRO weighs 21.09kg / 46.4lbs. Weight of a subwoofer is an important factor when you need to move and reposition the unit often to find the optimal positioning, also known as 'Subwoofer Crawling'. Here is a comparison of how Black TreVoce 12 PRO's weight compares with the average, max and min weights in its class.
Weight
All Subwoofer Speakers
Weight
Subwoofer Speakers under $1,000
Recommended Accessories
Here is a list of accessories that we think you may need for the OSD Black TreVoce 12 PRO.
Warranty
2 Years of parts warranty and 2 Years of labor warranty is generally provided by the manufacturer.
| General |
| Brand | OSD |
| Full Model Name | OSD Black TreVoce 12 PRO |
| Type | Powered Subwoofer |
| Release Date | 2022 |
| Frequency Response | 18-250 Hz |
| Enclosure Type | Passive Radiator |
Amplifier & Driver |
| Power (Peak) | 800 watts |
| Woofer | 12-inch |
| Controls & Connections |
Physical |
| Dimensions (HxWxD) | 17-3/4" x 15-15/16" x 18-5/8" (450.9 x 404.8 x 473.1mm) |
| Weight | 21.09 kg (46.5 lbs) |
| Parts Warranty | 2 Years |
| Labor Warranty | 2 Years |
