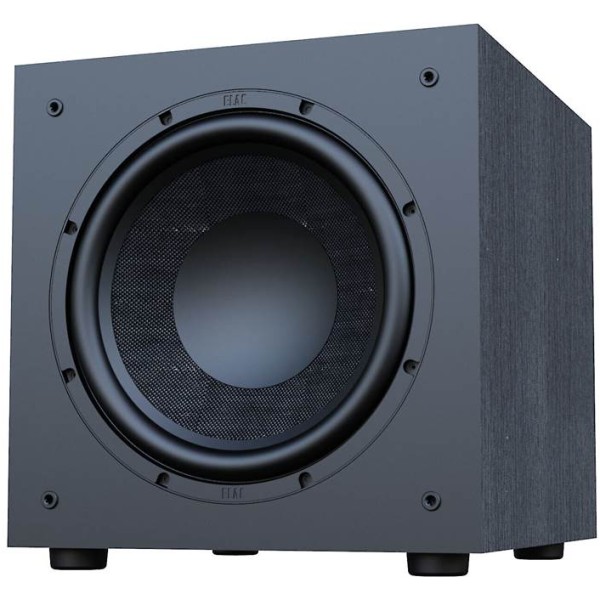

DS103 is a Sealed type Powered Subwoofer by ELAC with a frequency range of 31-150 Hz. It was released in 2024. It features 1 x 10" Woofer, and powered by a 100 watts amplifier.
Frequency Response
Where should the crossover go? → · What will your room do to this bass? →
ELAC DS103 has a Frequency response range of 31-150 Hz.
Here we have a comparison of how DS103's Low and High frequency values compare with the average, max and min Low and High frequency values in its class.
Low Frequency
Powered Subwoofers
High Frequency
Subwoofer Speakers
Among all subwoofers in our database with a max MSRP price of 500$, these are the 5 Powered Subwoofer models that can reach deeper bass levels than the ELAC DS103's 31Hz:
Inputs and Outputs
ELAC DS103 External Dimensions and Weight
ELAC DS103 has external dimensions of (Height x Width x Depth) (325.4 x 311.2 x 392.1mm ).
Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base area of ELAC DS103 is approximately 1220.2cm2 / 189.1inch2.
Find speakers that fit your shelf or alcove →
WeightThe ELAC DS103 weighs 10.30kg / 22.7lbs. Weight of a subwoofer is an important factor when you need to move and reposition the unit often to find the optimal positioning, also known as 'Subwoofer Crawling'. Here is a comparison of how DS103's weight compares with the average, max and min weights in its class.
Weight
All Subwoofer Speakers
Weight
Subwoofer Speakers under $500
Recommended Accessories
Here is a list of accessories that we think you may need for the ELAC DS103.
Warranty
1 Year of parts warranty and 1 Year of labor warranty is generally provided by the manufacturer.
| General |
| Brand | ELAC |
| Full Model Name | ELAC DS103 |
| Type | Powered Subwoofer |
| Release Date | 2024 |
| Frequency Response | 31-150 Hz |
| Enclosure Type | Sealed |
Amplifier & Driver |
| Power (Peak) | 200 watts |
| Woofer | 10-inch |
| Controls & Connections |
Physical |
| Dimensions (HxWxD) | 12-13/16" x 12-1/4" x 15-7/16" (325.4 x 311.2 x 392.1mm) |
| Weight | 10.3 kg (22.7 lbs) |
| Parts Warranty | 1 Year |
| Labor Warranty | 1 Year |
