Monitor Audio CP-WT240LCR Review
Monitor Audio CP-WT240LCR

Main Features

  • 1" Hard-Dome Tweeter
  • 2 x 4" C-CAM Woofer
  • 60-25kHz Frequency Response
  • 88 dB Sensitivity
  • Impedance: 6ohms
  • Power Range: 20-100watts
  • Dimensions(HxWxD): 11.7500"x7.1875"x3.8125" / 299.0 x 183.0 x 97.0mm
CHECK PRICE

Compare To

x
Add a Speaker for comparison
Monitor Audio CP-WT240LCR Review
Monitor Audio CP-WT240LCR Monitor Audio CP-WT2...
See at AMAZON

Monitor Audio CP-WT240LCR is a 2-way Passive In-wall In-wall speaker by Monitor Audio. It features a 1" Hard-Dome Tweeter and 2 x 4" C-CAM Woofer. The speaker has a frequency range of 60-25kHz and a sensitivity of 88 dB. Monitor Audio CP-WT240LCR has an MSRP of 1300$ per pair.

What size of room is the Monitor Audio CP-WT240LCR speaker good for?

The size of the room in which you are planning to use the Monitor Audio CP-WT240LCR is an important decision factor. Here we have evaluated its suitability to various sizes of environments considering its size and max power parameters:

Listening Environment* Suitability
Near-fieldAverage
Small RoomGood
Mid-size RoomAverage
Large RoomPoor
Very Large RoomBad

(* Approximate Room sizes: Small < 100sq. ft / 9 m2, Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: > 400 sq. ft / 36 m2. Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual listening experience changes depending on floor height, room shape, surface materials, listening position, speaker locations, etc.)


**This post contains affiliate links, and I will be compensated if you make a purchase after clicking through my links. As an Amazon Associate I earn from qualifying purchases.

What is the Frequency Response of the Monitor Audio CP-WT240LCR speaker?

Monitor Audio CP-WT240LCR has a Frequency response range of 60-25kHz at ±3dB and Power Range of 20-100 watts. At a minimum frequency of 60 Hz, CP-WT240LCR will provide an average bass depth so depending on your use case, you may consider supplementing your system with a subwoofer.

To focus on the subwoofers that are in a similar price range with Monitor Audio CP-WT240LCR, check out the Powered Subwoofers under $1500. Alternatively, find the Full list of Powered Subwoofers regardless of the price.
Here we have a comparison of how CP-WT240LCR's Low and High frequency values compare with the average, max and min Low and High frequency values in its class.
Low Frequency
In-wall Speakers
Monitor Audio CP-WT240LCR
Min
Average
Max
High Frequency
In-wall Speakers
Monitor Audio CP-WT240LCR
Min
Average
Max


What are the Impedance and Sensitivity of the Monitor Audio CP-WT240LCR? Is it an easy-to-drive speaker?

Monitor Audio CP-WT240LCR's nominal impedance level is 6 ohms and has a sensitivity of 88 dB.

Sensitivity
In-wall Speakers
Monitor Audio CP-WT240LCR
Min
Average
Max

Nominal Impedance of 6 Ohms makes the Monitor Audio CP-WT240LCR a relatively difficult to drive speaker compared to more frequently found 8 ohms speakers from nominal Impedance perspective.

Sensitivity

88dB of Monitor Audio CP-WT240LCR is an average sensitivity for stereo speaker so it is neither easy nor difficult to drive Sensitivity wise.

Check the amplifiers that are in a similar price range to the Monitor Audio CP-WT240LCR:

  • Integrated Amps under 1000 USD
  • Integrated Amps under 1500 USD
  • Integrated Amps under 2000 USD
  • All Integrated Amplifiers

Input Type

CP-WT240LCR features Spring post type connectors. Bi-amping and Bi-wiring are not possible.

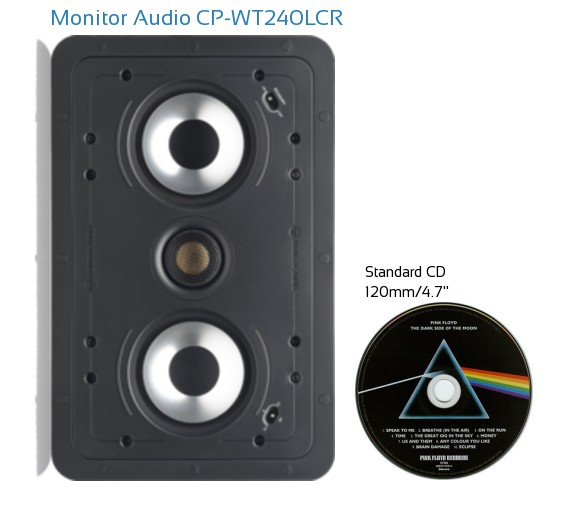

Monitor Audio CP-WT240LCR External Dimensions and Weight

Monitor Audio CP-WT240LCR has external dimensions of (Height x Width x Depth) 11.7500-inch x 7.1875-inch x 3.8125-inch (299.0 x 183.0 x 97.0mm ).

Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited. The base area of Monitor Audio CP-WT240LCR is approximately 177.5cm2 / 27.5inch2.

Cabinet type and Materials

Monitor Audio CP-WT240LCR has a In-wall type cabinet.

What's in the Box of Monitor Audio CP-WT240LCR?

Here are the items that are included inside the box of CP-WT240LCR:
  • In-wall LCR loudspeaker
  • Magnetic grille
  • Cosmetic scrim
  • Installation Guide
  • Important Safety Instructions
  • Limited Warranty/Registration Card
  • MountingTemplate
  • Recommended Accessories

    Here is a list of accessories that we think you may need for the Monitor Audio CP-WT240LCR.

    • Speaker Cable and Connectors
      • Speaker Cables with Banana Plugs: If you know the lenght of the cable you need, this is the easier option to connect your speakers with your amp.
      • Speaker Cables without Connectors: If you are not sure about the lenght or need longer than standard cables with plugs, choose this option.
      • Banana Connectors and Plugs: If you chose the cables without connectors option or already have some cable around, pick the banana plugs separately.
    • Vibration Isolators: IsoAcoustics isolatorsmore affordable options too.
    • Acoustic Panels and Treatments: Your room is as important as your stereo equipment so acoustic treatments goes a long way in improving the overall performance.

    Warranty

    Lifetime of parts warranty and Lifetime of labor warranty is generally provided by the manufacturer.

    Monitor Audio CP-WT240LCR Alternatives in Passive In-wall Speakers
    Model Type Sensitivity Impedance Frequency
    JBL Studio 6 88LCR
    Compare
    2-way 96 dB 6 ohms 43-20kHz
    Definitive UIW RLS III
    Compare
    2-way 92 dB 8 ohms 24-30kHz
    Monitor Audio W250-LCR
    Compare
    2-way 88 dB 8 ohms 60-30kHz
    Definitive UIW RLS II
    Compare
    2-way 92 dB 8 ohms 22-30kHz
    B&W CWM663
    Compare
    2-way 88 dB 8 ohms 45-50kHz
    Monitor Audio CP-WT150
    Compare
    2-way 85 dB 6 ohms 75-25kHz
    Monitor Audio W280-IDC
    Compare
    3-way 90 dB 6 ohms 45-30kHz
    MartinLogan Motion CI MW4-LCR
    Compare
    2-way 93 dB 8 ohms 78-25kHz
    Polk Audio 265-LS
    Compare
    3-way 91 dB 8 ohms 28-33kHz
    JBL Studio 6 66LCR
    Compare
    2-way 94 dB 6 ohms 45-20kHz
    Frequently Asked Questions about Monitor Audio CP-WT240LCR
    What is the External Dimensions of Monitor Audio CP-WT240LCR
    What is the Speaker Sensitivity of Monitor Audio CP-WT240LCR
    is the Monitor Audio CP-WT240LCR an easy to drive speaker?



    Monitor Audio CP-WT240LCR Detailed Specifications

    General
    BrandMonitor Audio
    Full Model NameMonitor Audio CP-WT240LCR
    Speaker Type2-way In-wall
    Power Range20-100 watts
    Sensitivity88 dB
    Impedance6 ohms
    Frequency Response60-25kHz
    DRIVERS
    Woofer Size4-inch
    Woofer CompositionC-CAM
    Woofer SurroundRubber
    Tweeter Size1-inch
    Tweeter TypeHard-Dome
    Aimable TweeterNo
    Midrange SizeN/A-inch

    CONNECTIONS
    Connector TypeSpring post
    Biamp InputsNo
    PHYSICAL SPECS
    Height299.0mm ( 11.7500-inch)
    Width183.0mm ( 7.1875-inch)
    Depth97.0mm ( 3.8125-inch)
    Height299.0mm ( 11.7500-inch)
    Weightkg ( lbs)
    EnclosureIn-wall
    Moisture ResistanceNo
    OTHER
    Handheld RemoteNo
    Parts WarrantyLifetime
    Labor WarrantyLifetime
