Monitor Audio CP-WT240LCR vs Monitor Audio CP-WT380IDC Comparison

x
Speaker to replace
Change

Monitor Audio CP-WT240LCR

Passive In-wall | 60-25kHz

Monitor Audio CP-WT240LCR
CHECK PRICE
Change

Monitor Audio CP-WT380IDC

Passive In-wall | 50-30kHz

Monitor Audio CP-WT380IDC
CHECK PRICE
Monitor Audio CP-WT240LCR Monitor Audio CP-WT2...
See at AMAZON
Monitor Audio CP-WT380IDC Monitor Audio CP-WT3...
See at AMAZON
Monitor Audio CP-WT2...
See at AMAZON
Monitor Audio CP-WT3...
See at AMAZON
Monitor Audio CP-WT240LCR vs Monitor Audio CP-WT380IDC Speaker Comparison

In this review, we will be comparing CP-WT240LCR and CP-WT380IDC, two Passive In-wall speakers by Monitor Audio

Let's have a brief look at the main features of Monitor Audio CP-WT240LCR and Monitor Audio CP-WT380IDC first before getting into our more detailed comparison.

Monitor Audio CP-WT240LCR Key Specs

  • 2-way Design
  • 1" Hard-Dome Tweeter
  • 2 x 4" C-CAM Woofer
  • 60-25kHz Frequency Response
  • 88 dB Sensitivity
  • Impedance: 6ohms
  • Power Range:20-100watts
  • Dimensions (H x W x D): 299.0" x 7.1875" x 3.8125"( 299.0 x 183.0 x 97.0mm )

Monitor Audio CP-WT380IDC Key Specs

  • 3-way Design
  • 1" Hard-Dome Tweeter
  • 4" Midrange
  • 8" C-CAM Woofer
  • 4" Midrange
  • 50-30kHz Frequency Response
  • 89 dB Sensitivity
  • Impedance: 6ohms
  • Power Range:30-120watts
  • Dimensions (H x W x D): 437.0" x 10.5625" x 3.8750"( 437.0 x 269.0 x 99.0mm )

What size room are the Monitor Audio CP-WT240LCR and Monitor Audio CP-WT380IDC speakers good for?

The size of the room in which you are planning to use these loudspeakers is an important decision factor. Here we have compared their suitability to various sizes of environments considering their size and max power parameters:

Listening Environment* Monitor Audio CP-WT240LCR Monitor Audio CP-WT380IDC
Near-field Average Poor
Small Room Good Average
Mid-size Room Average Good
Large Room Poor Average
Very Large Room Bad Poor

(* Approximate Room sizes: Small < 100sq. ft / 9 m2, Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: > 400 sq. ft / 36 m2. Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual listening experience changes depending on floor height, room shape, surface materials, listening position, speaker locations, etc.)

In the following sections, we will get into more detail in order to better understand how the Monitor Audio CP-WT240LCR and Monitor Audio CP-WT380IDC compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.


**This post contains affiliate links, and I will be compensated if you make a purchase after clicking through my links. As an Amazon Associate I earn from qualifying purchases.


Drivers

One of the fundamental differences between these two speakers is that CP-WT240LCR is a 2-way design whereas the CP-WT380IDC is a 3-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.

Driver Monitor Audio CP-WT240LCR Monitor Audio CP-WT380IDC
Driver Setup 2-way 3-way
Tweeter 1-inch 1-inch
Midrange - 1 x 4-inch
Woofer 2 x 4-inch 1 x 8-inch

CP-WT240LCR features a 1" Hard-Dome Tweeter and 2 x 4" C-CAM Woofer . On the other hand, the CP-WT380IDC features a 1" Hard-Dome Tweeter , a 4" Midrange and 1 x 8" C-CAM Woofer .

Frequency Response

CP-WT240LCR has a frequency range of 60-25kHz whereas CP-WT380IDC has a frequency range of 50-30kHz. With a minimum frequency of 50Hz, the CP-WT380IDC can go significantly deeper on the low side and provide stronger bass compared to the CP-WT240LCR's min frequency of 60Hz.

Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the In-wall class in our database.

Low Frequency

In-wall Speakers

CP-WT240LCR
CP-WT380IDC
Min
Average
Max
High Frequency

In-wall Speakers

Monitor Audio CP-WT240LCR
Monitor Audio CP-WT380IDC
Min
Average
Max

None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.

Impedance and Sensitivity

CP-WT240LCR and CP-WT380IDC have the same Impedance of 6 ohms but where they differ is the sensitivity levels. CP-WT240LCR sensitivity is rated at 88 dB and the CP-WT380IDC's is at 89 dB. This 1 dB difference makes the Monitor Audio CP-WT380IDC a more sensitive speaker compared to Monitor Audio CP-WT240LCR, hence will play louder with the same amount of watts.

Sensitivity

In-wall Speakers

CP-WT240LCR
CP-WT380IDC
Min
Average
Max

Power Range

Power range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using an amplifier within this range ensures the nominal performance , inputting a power that is higher than the max wattage can result in a damaged speaker.

CP-WT240LCR can handle a max power of 120 watts RMS from the amp the whereas CP-WT240LCR has a max power handling value of 100 watts RMS , 20 watts less than the CP-WT380IDC.

Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters such as Impedance, sensitivity and system efficiencies.

Input Type and Bi-Amping / Bi-Wiring

CP-WT240LCR features Spring post type posts and CP-WT380IDC has a Spring post type posts. None of these speakers feature bi-amping/bi-wiring.

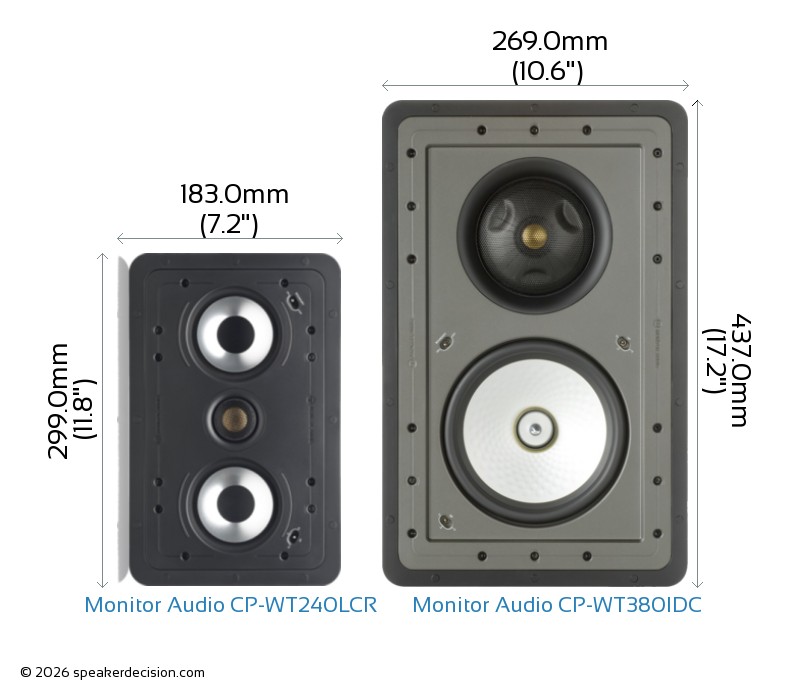

Physical Specs

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Monitor Audio CP-WT240LCR's and Monitor Audio CP-WT380IDC's external dimensions. Monitor Audio CP-WT240LCR has external dimensions of 299.0 x 183.0 x 97.0mm ( 11.7500-inch x 7.1875-inch x 3.8125-inch) whereas Monitor Audio CP-WT380IDC has external dimensions of 437.0 x 269.0 x 99.0mm ( 17.1875-inch x 10.5625-inch x 3.8750-inch) .

Monitor Audio CP-WT380IDC is clearly the larger of the two speakers. Its body is 86mm wider, 138mm taller and 2mm deeper than Monitor Audio CP-WT240LCR.

What's in the Box of Monitor Audio CP-WT240LCR?

Here are the items that are included inside the box of CP-WT240LCR:
  • In-wall LCR loudspeaker
  • Magnetic grille
  • Cosmetic scrim
  • Installation Guide
  • Important Safety Instructions
  • Limited Warranty/Registration Card
  • MountingTemplate
  • What's in the Box of Monitor Audio CP-WT380IDC?

    Here are the items that come with the CP-WT380IDC:
  • In-Wall speaker
  • Magnetic grille
  • Paint skim
  • Installation Guide
  • Important Safety Instructions
  • Limited Warranty/Registration Card
  • MountingTemplate

  • Reasons to choose Monitor Audio CP-WT240LCR over Monitor Audio CP-WT380IDC
    Number of Woofers 2 vs 1 More woofers
    Height 299mm vs 437mm Easier to fit in smaller spaces
    Base Surface Area 177cm2 vs 266cm2 Takes less floor space
    Price per pair* 1300USD vs 2350USD costs less (*prices may change depending on the seller, location and time)

    Reasons to choose Monitor Audio CP-WT380IDC over Monitor Audio CP-WT240LCR

    Max Input Power 120 watts vs 100 watts Handle more power from your amplifier
    Driver Setup 3-way vs 2-way Have a dedicated mid-range driver
    Sensitivity 89 dB vs 88 dB Play louder with same amount of amplification power
    Woofer Size 8 inches vs 4 inches Larger woofer
    Low Frequency Response 50 Hz vs 60 Hz Generates deeper bass
    High Frequency Response 30k Hz vs 25k Hz Generates higher frequency
    Monitor Audio CP-WT240LCR vs Monitor Audio CP-WT380IDC Specs Table
    Detailed comparison of specifications
    General Monitor Audio CP-WT240LCR Monitor Audio CP-WT380IDC
    Brand Monitor Audio Monitor Audio
    Speaker Type Passive In-wall Speaker Passive In-wall Speaker
    Power Range 20-100 watts 30-120 watts
    Sensitivity 88 dB 89 dB
    Impedance 6 ohms 6 ohms
    Frequency Response 60-25kHz 50-30kHz
    Drivers
    Woofer Quantity 2 1
    Woofer Size 4" 8"
    Woofer Composition C-CAM C-CAM
    Woofer Surround Material Rubber Rubber
    Tweeter Size 1" 1"
    Tweeter Type Hard-Dome Hard-Dome
    Aimable Tweeter No No
    Midrange Driver N/A" 4"
    Physical Specs
    Height 299.0mm (11.8") 437.0mm (17.2")
    Width 183.0mm (7.2") 269.0mm (10.6")
    Depth 97.0mm (3.8") 99.0mm (3.9")
    Enclosure In-wall In-wall
    Moisture Resistancy No No
    Connections
    Biamp Inputs No No
    Other
    Parts Warranty Lifetime Lifetime
    Labor Warranty Lifetime Lifetime
