Monitor Audio CP-WT260 is a 2-way Passive In-wall In-wall speaker by Monitor Audio. It was released in 2017. It features a 1" Hard-Dome Tweeter and 1 x 6" C-CAM Woofer. The speaker has a frequency range of 65-25kHz and a sensitivity of 88 dB. Monitor Audio CP-WT260 has an MSRP of 1100$ per pair.
Room Size Suitability
The size of the room where you plan to use the Monitor Audio CP-WT260 is a crucial factor in your decision. We have assessed its suitability for various room sizes based on its dimensions and maximum power output:
| Listening Environment* |
Suitability |
| Near-field | Good |
| Small Room | Good |
| Mid-size Room | Average |
| Large Room | Poor |
| Very Large Room | No way |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2, Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: > 400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual listening experience changes depending on floor height, room shape, surface materials, listening position, speaker locations, etc.)
Monitor Audio's Controlled Performance Series of Loudspeakers
CP-WT260 is a member of Monitor Audio's Controlled Performance series of Passive speakers. The Controlled Performance (CP) range are Monitor Audio's premium in-wall and in-ceiling custom-install speakers. Below you can see the main specs of these speakers.
See all 5 Monitor Audio Controlled Performance models compared »
Monitor Audio Controlled Performance Series Speakers
**This post contains affiliate links, and we will be compensated if you make a purchase after clicking through our links. As an Amazon Associate I earn from qualifying purchases.
Frequency Response of the Monitor Audio CP-WT260 Speaker
Monitor Audio CP-WT260 has a Frequency response range of 65-25kHz and Power Range of 20-65 watts. With a minimum frequency of 65 Hz, it is hard to expect a strong bass response from CP-WT260 so depending on your use case, using a subwoofer will significantly help to widen the response range.
Here we have a comparison of how CP-WT260's Low frequency value compares with the average, max and min Low frequency values in its class.
Low Frequency
In-wall Speakers
Thinking about a subwoofer for the Monitor Audio CP-WT260?
Impedance and Sensitivity
Monitor Audio CP-WT260's nominal impedance level is
6 ohms and has a sensitivity of
88 dB.
Sensitivity
In-wall Speakers
Nominal Impedance of the 6 Ohms makes the Monitor Audio CP-WT260 a relatively difficult to drive speaker compared to more frequently found 8 ohms speakers from nominal Impedance perspective.
Sensitivity
88dB of the Monitor Audio CP-WT260 is an average sensitivity for stereo speaker so it is neither easy nor difficult to drive Sensitivity wise. Work out how loud the Monitor Audio CP-WT260 plays in your room →
Running more than one pair from a single amplifier? Check the load it would present →
What amplifier does the Monitor Audio CP-WT260 need?
At normal listening levels in a medium room, about
16–65 W
per channel into 6 ohms.
Set your own conditions and we will rank every amplifier we cover.
Prefer to browse? Integrated amplifiers under $1,500, or every amplifier we cover.
Input Type
CP-WT260 features Spring post type connectors. Bi-amping and Bi-wiring are not possible.
Work out what gauge speaker cable this run needs →
Monitor Audio CP-WT260 External Dimensions and Weight
Monitor Audio CP-WT260 has external dimensions of (Height x Width x Depth) 14.9375-inch x 8.9375-inch x 3.7500-inch (380.0 x 228.0 x 96.0mm ).
Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base area of Monitor Audio CP-WT260 is approximately 218.9cm2 / 33.9inch2.
To get a better perspective on the real life size of Monitor Audio CP-WT260, let's compare it with a standard size Compact Disc which has a diameter of 4.7inch (120mm).

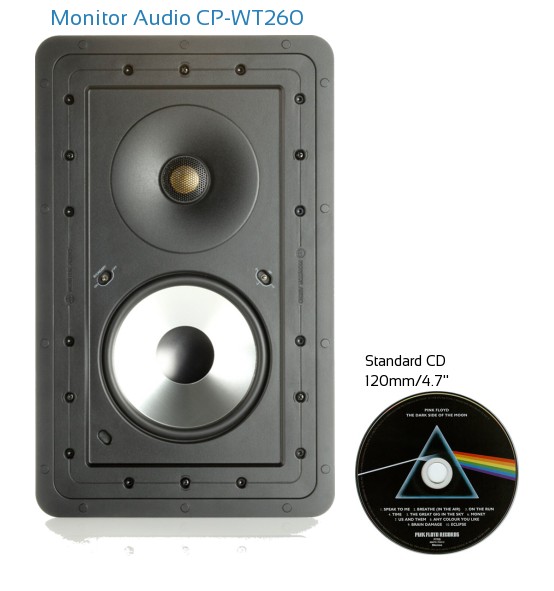

Monitor Audio CP-WT260 Speaker Size Compared to a Compact Disc
Find speakers that fit your shelf or alcove →
Cabinet type and Materials
Monitor Audio CP-WT260 has a
In-wall type cabinet.
What's in the Box of Monitor Audio CP-WT260?
Here are the items that are included inside the box of CP-WT260:
- In-wall speaker
- Magnetic grille
- Cosmetic scrim
- Installation Guide
- Important Safety Instructions
- Limited Warranty/Registration Card
- MountingTemplate
Recommended Accessories
Here is a list of accessories that we think you may need for the Monitor Audio CP-WT260.
Warranty
Lifetime of parts warranty and Lifetime of labor warranty is generally provided by the manufacturer.
