Monitor Audio CP-WT260 vs JBL Stage 260W Speaker Comparison

In this review, we will be comparing CP-WT260 and Stage 260W, two Passive In-wall speakers from Monitor Audio and JBL.

Let's have a brief look at the main features of Monitor Audio CP-WT260 and JBL Stage 260W first before getting into our more detailed comparison.

Key Specs	Monitor Audio CP-WT260	JBL Stage 260W
Brand	Monitor Audio United Kingdom · founded 1972	JBL United States · founded 1946
Design	2-way	2-way
Tweeter	1" Hard-Dome	1" Horn-Loaded
Woofer	6" C-CAM	6.5" Polycellulose
Frequency response	65-25kHz	50-25kHz
Sensitivity	88 dB	87 dB
Impedance	6 ohms	8 ohms
Power range	20-65 watts	20-100 watts
Dimensions (H x W x D)	14.9375" x 8.9375" x 3.7500" 380.0 x 228.0 x 96.0mm	12.2500" x 7.2500" x 3.5625" 312.0 x 185.0 x 91.0mm

What size room are the Monitor Audio CP-WT260 and JBL Stage 260W speakers good for?

The size of the room in which you are planning to use these loudspeakers is an important decision factor. Here we have compared their suitability to various sizes of environments considering their size and max power parameters:

Listening Environment*	Monitor Audio CP-WT260	JBL Stage 260W
Near-field	Good	Average
Small Room	Good	Good
Mid-size Room	Average	Average
Large Room	Poor	Poor
Very Large Room	No way	Bad

(* Approximate Room sizes: Small < 100sq. ft / 9 m², Mid-size: 100-220 sq. ft / 9-20 m², Large 220-400 sq. ft / 20-36 m², Very Large: > 400 sq. ft / 36 m². Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual listening experience changes depending on floor height, room shape, surface materials, listening position, speaker locations, etc.)

The sections below take each area in turn: drivers, frequency response, physical size and what you get in the box.

**This post contains affiliate links, and we will be compensated if you make a purchase after clicking through our links. As an Amazon Associate I earn from qualifying purchases.

Drivers

Both CP-WT260 and Stage 260W are 2-way speakers.

Monitor Audio CP-WT260

JBL Stage 260W

TweeterWoofer

Front view, drawn to scale - cabinets and drivers share one scale, so sizes are directly comparable. Hover a driver for its size.

Driver	Monitor Audio CP-WT260	JBL Stage 260W
Driver Setup	2-way	2-way
Tweeter	1-inch	1-inch
Midrange	-	-
Woofer	1 x 6-inch	1 x 6.5-inch

CP-WT260 features a 1" Hard-Dome Tweeter and 1 x 6" C-CAM Woofer. On the other hand, the Stage 260W features a 1" Horn-Loaded Tweeter and 1 x 6.5" Polycellulose Woofer.

Frequency Response

CP-WT260 has a frequency range of 65-25kHz whereas Stage 260W has a frequency range of 50-25kHz. With a minimum frequency of 50Hz, the Stage 260W can go significantly deeper on the low side and provide stronger bass compared to the CP-WT260's min frequency of 65Hz.

The graph below depicts how these two speakers compare with the max, min and average Low Frequency values of other speakers in the In-wall class in our database.

Low Frequency

In-wall Speakers

CP-WT260

Stage 260W

Min

Average

Median

Neither pair reaches down to 20Hz, the usual definition of full-range, which is normal for speakers of this size. If you want the bottom octave for movies or bass-heavy music, add a subwoofer to whichever you choose. Visit our Powered Subwoofers section to find out more about the available options.

Impedance and Sensitivity

CP-WT260 is a 6 ohms speaker compared to the Stage 260W which has a nominal impedance of 8 ohms.

These two speakers also have different sensitivity levels. CP-WT260 sensitivity is rated at 88 dB and the Stage 260W's is rated at 87 dB. This 1 dB difference makes the Monitor Audio CP-WT260 a more sensitive speaker compared to JBL Stage 260W, hence will play louder with the same amount of watts.

Sensitivity

In-wall Speakers

CP-WT260

Stage 260W

Min

Average

Median

Power Range

Power range is the range of input power in watts RMS that a loudspeaker is designed to handle. Staying within that range gives nominal performance; driving the speaker beyond its maximum wattage can damage it.

Stage 260W can handle a max power of 100 watts RMS, whereas CP-WT260 has a max power handling value of 65 watts RMS, 35 watts less than the Stage 260W.

Note that higher power handling does not make a speaker louder: that depends mainly on sensitivity and impedance. The calculator below shows how loud each of these actually plays on a real amplifier.

Which plays louder on your amplifier?

Starting with a popular amplifier - change it to the one you own, or any you are considering, and watch both numbers move.

Amplifier - change this

Distance

Playing as

Monitor Audio CP-WT260

JBL Stage 260W

Input Type and Bi-Amping / Bi-Wiring

CP-WT260 features Spring clip type posts and Stage 260W has a Spring clip type posts. None of these speakers feature bi-amping/bi-wiring.

Physical Specs

The size of a speaker can sometimes be an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Monitor Audio CP-WT260's and JBL Stage 260W's external dimensions. Monitor Audio CP-WT260 has external dimensions of 380.0 x 228.0 x 96.0mm (14.9375-inch x 8.9375-inch x 3.7500-inch) whereas JBL Stage 260W has external dimensions of 312.0 x 185.0 x 91.0mm (12.2500-inch x 7.2500-inch x 3.5625-inch).

Monitor Audio CP-WT260 is clearly the larger of the two speakers. Its body is 43mm wider, 68mm taller and 5mm deeper than JBL Stage 260W.

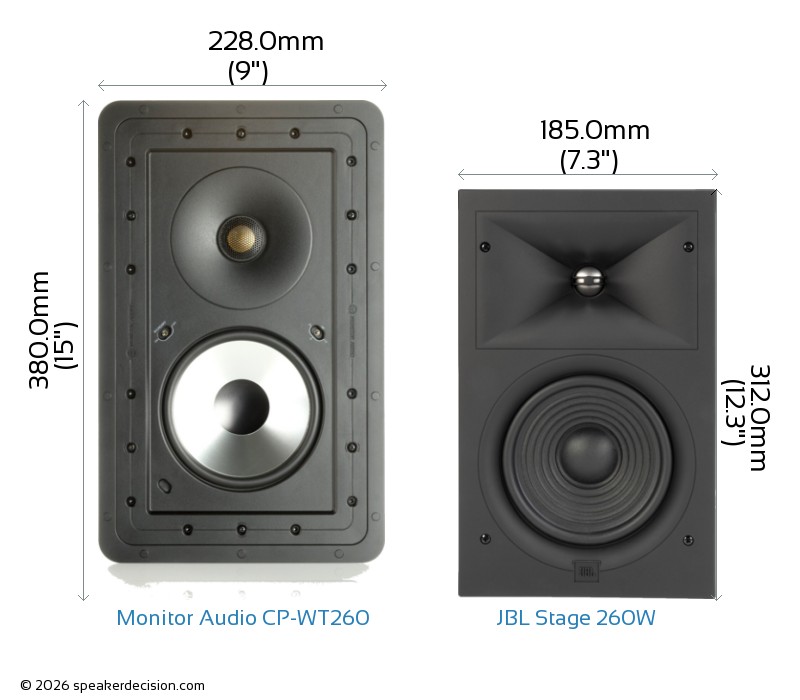

Below you can see the front view size comparison of Monitor Audio CP-WT260 and JBL Stage 260W in scale.

Comparison image of Monitor Audio CP-WT260 and JBL Stage 260W Size and External Dimensions

What's in the Box of Monitor Audio CP-WT260?

Here are the items that are included inside the box of CP-WT260:

In-wall speaker
Magnetic grille
Cosmetic scrim
Installation Guide
Important Safety Instructions
Limited Warranty/Registration Card
MountingTemplate

What's in the Box of JBL Stage 260W?

Here are the items that come with the Stage 260W:

In-wall loudspeaker
Grille
Cut-Out Template
Quick Start Guide

Reasons to choose Monitor Audio CP-WT260 over JBL Stage 260W

Sensitivity	88 dB vs 87 dB	Play louder with same amount of amplification power

Reasons to choose JBL Stage 260W over Monitor Audio CP-WT260

Max Input Power	100 watts vs 65 watts	Handle more power from your amplifier
Nominal Impedance	8 ohms vs 6 ohms	Less selective with amplifiers
Woofer Size	6.5 inches vs 6 inches	Larger woofer
Low Frequency Response	50 Hz vs 65 Hz	Generates deeper bass
Height	312mm vs 380mm	Easier to fit in smaller spaces
Base Surface Area	168cm² vs 218cm²	Takes less floor space
Price per pair*	300USD vs 1100USD	costs less (*prices may change depending on the seller, location and time)

Monitor Audio CP-WT260 vs JBL Stage 260W Specs Table

Detailed comparison of specifications

General	Monitor Audio CP-WT260	JBL Stage 260W
Brand	Monitor Audio	JBL
Speaker Type	Passive In-wall Speaker	Passive In-wall Speaker
Power Range	20-65 watts	20-100 watts
Sensitivity	88 dB	87 dB
Impedance	6 ohms	8 ohms
Frequency Response	65-25kHz	50-25kHz
Drivers
Woofer Quantity	1	1
Woofer Size	6"	6.5"
Woofer Composition	C-CAM	Polycellulose
Woofer Surround Material	Rubber	Rubber
Tweeter Size	1"	1"
Tweeter Type	Hard-Dome	Horn-Loaded
Aimable Tweeter	No	No
Midrange Driver	No	No
Physical Specs
Height	380.0mm (15")	312.0mm (12.3")
Width	228.0mm (9")	185.0mm (7.3")
Depth	96.0mm (3.8")	91.0mm (3.6")
Enclosure	In-wall	In-wall
Moisture Resistancy	No	No
Connections
Biamp Inputs	No	No
Other
Parts Warranty	Lifetime	5 Years
Labor Warranty	Lifetime	5 Years

Verdict

These sit in different price classes - Monitor Audio CP-WT260 costs roughly 3.7x what JBL Stage 260W does. Expect it to lead on paper; the question is whether the gap is audible enough in your room to be worth it.

Area	Better	Why
Bass	B	JBL Stage 260W digs deeper - 50Hz against 65Hz.
Amplifier needs	evenly matched	Similar sensitivity (88dB vs 87dB) - both want much the same power.
Amplifier match	B	JBL Stage 260W is the easier load at 8 ohms.
Headroom	B	JBL Stage 260W takes more power (100W vs 65W) - more in hand in a big room.
Size	depends	JBL Stage 260W is easier to place; Monitor Audio CP-WT260 is bigger, which usually goes with fuller bass. Your room decides.
Expandability	depends	Neither adds bi-amping, a sub output or height drivers. JBL Stage 260W sits in a wider range (10 models), so a matched surround system is easier later.
Price	B	JBL Stage 260W is cheaper - $300 against $1,100, about 73% less; arguably a different class.

A Monitor Audio CP-WT260 B JBL Stage 260W
depends neither is better in the abstract - it turns on your room, your system or how you will use them. Only specs published for both speakers are judged; anything missing on either side is left out rather than guessed.

Which should you choose?

JBL Stage 260W is the easier recommendation: it leads on most of the measured areas and costs less. Take Monitor Audio CP-WT260 if its size, looks or fit in your room suit you better. If a subwoofer is in your plans, the bass gap largely stops mattering - you would be crossing over above 65Hz anyway, so judge these on the other rows instead. Match it to your room: we rate Monitor Audio CP-WT260 the better fit for near-field listening; elsewhere the two are rated the same.

And remember what a spec sheet cannot show: how each looks in your room and whether the finish suits it, what dealer support and warranty are like where you live, and how they actually sound to you. If you can hear them first - ideally with your own music - that will tell you more than any number above.
