MartinLogan Motion XT CI XTW6-LCR Review
MartinLogan Motion XT CI XTW6-LCR

Main Features

  • 1.27 x 2.4" Folded Motion Ribbon Tweeter
  • 6.5" Midrange
  • 2 x 6.5" Kevlar Woofer
  • 44-25kHz Frequency Response
  • 93 dB Sensitivity
  • Impedance: 8ohms
  • Power Range: 50-150watts
  • Dimensions(HxWxD): 27.0000"x6.6250"x3.5625" / 686.0 x 169.0 x 91.0mm
CHECK PRICE

Compare To

x
Add a Speaker for comparison
MartinLogan Motion XT CI XTW6-LCR Review
MartinLogan Motion XT CI XTW6-LCR MartinLogan Motion X...
See at AMAZON

MartinLogan Motion XT CI XTW6-LCR is a 3-way Passive In-wall In-wall speaker by MartinLogan. It features a 1.27 x 2.4" Folded Motion Ribbon Tweeter, 1 x 6.5" Midrange and 2 x 6.5" Kevlar Woofer. The speaker has a frequency range of 44-25kHz and a sensitivity of 93 dB. MartinLogan Motion XT CI XTW6-LCR has an MSRP of 3200$ per pair.

Room Size Suitability

The size of the room where you plan to use the MartinLogan Motion XT CI XTW6-LCR is a crucial factor in your decision. We have assessed its suitability for various room sizes based on its dimensions and maximum power output:

Listening Environment* Suitability
Near-fieldPoor
Small RoomAverage
Mid-size RoomGood
Large RoomAverage
Very Large RoomPoor

(* Approximate Room sizes: Small < 100sq. ft / 9 m2, Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: > 400 sq. ft / 36 m2. Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual listening experience changes depending on floor height, room shape, surface materials, listening position, speaker locations, etc.)


**This post contains affiliate links, and I will be compensated if you make a purchase after clicking through my links. As an Amazon Associate I earn from qualifying purchases.

Frequency Response of the MartinLogan Motion XT CI XTW6-LCR Speaker

MartinLogan Motion XT CI XTW6-LCR has a Frequency response range of 44-25kHz at ±3dB and Power Range of 50-150 watts. With a minimum frequency of 44 Hz, Motion XT CI XTW6-LCR delivers deep bass that will likely satisfy most listeners, especially those who enjoy music. However, movie enthusiasts and music fans who prefer a full range of sound may still benefit from adding a subwoofer.

To focus on the subwoofers that are in a similar price range with MartinLogan Motion XT CI XTW6-LCR, check out the Powered Subwoofers under $5000. Alternatively, find the Full list of Powered Subwoofers regardless of the price.
Here we have a comparison of how Motion XT CI XTW6-LCR's Low and High frequency values compare with the average, max and min Low and High frequency values in its class.
Low Frequency
In-wall Speakers
MartinLogan Motion XT CI XTW6-LCR
Min
Average
Max
High Frequency
In-wall Speakers
MartinLogan Motion XT CI XTW6-LCR
Min
Average
Max

Impedance and Sensitivity

MartinLogan Motion XT CI XTW6-LCR's nominal impedance level is 8 ohms and has a sensitivity of 93 dB.

Sensitivity
In-wall Speakers
MartinLogan Motion XT CI XTW6-LCR
Min
Average
Max

8 Ohms is pretty much the standard nominal impedance amongst stereo speakers and amplifiers so MartinLogan Motion XT CI XTW6-LCR is not considered a difficult to drive speaker from nominal Impedance perspective.

Sensitivity

93dB of the MartinLogan Motion XT CI XTW6-LCR is considered a high sensitivity compared to average stereo speaker which makes Motion XT CI XTW6-LCR an easy to drive from Sensitivity perspective. If you are planning to power your speaker with a Tube amp which are generally very low power, the MartinLogan Motion XT CI XTW6-LCR will be a good choice.

Check the amplifiers that are in a similar price range to the MartinLogan Motion XT CI XTW6-LCR:

  • Integrated Amps under 3000 USD
  • Integrated Amps under 5000 USD
  • Integrated Amps under 10000 USD
  • All Integrated Amplifiers

Input Type

Motion XT CI XTW6-LCR features Spring post type connectors. Bi-amping and Bi-wiring are not possible.

MartinLogan Motion XT CI XTW6-LCR External Dimensions and Weight

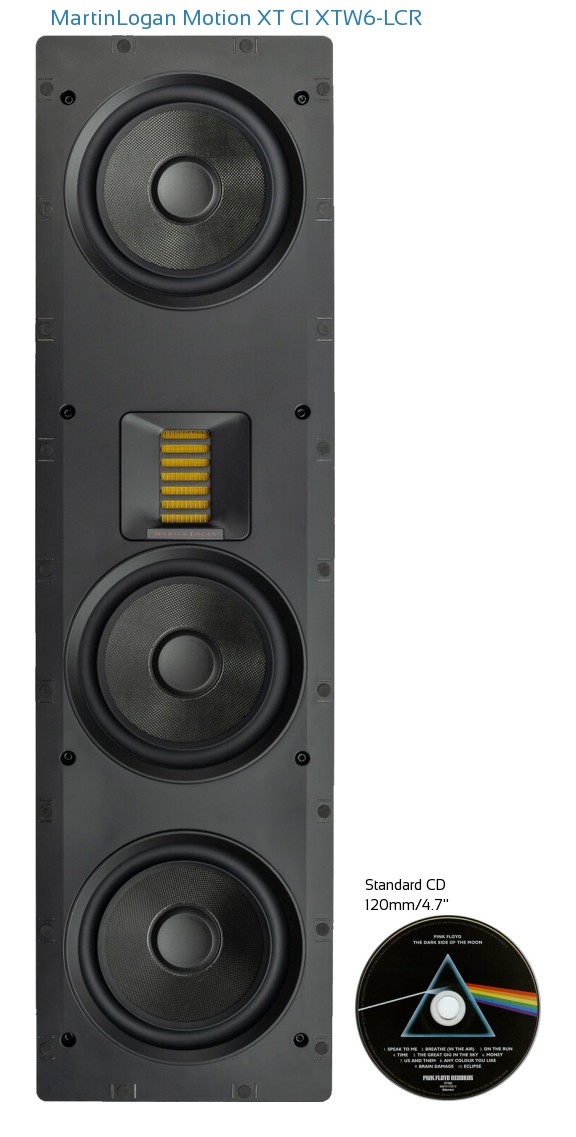

MartinLogan Motion XT CI XTW6-LCR has external dimensions of (Height x Width x Depth) 27.0000-inch x 6.6250-inch x 3.5625-inch (686.0 x 169.0 x 91.0mm ).

Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited. The base area of MartinLogan Motion XT CI XTW6-LCR is approximately 153.8cm2 / 23.8inch2.

Cabinet type and Materials

MartinLogan Motion XT CI XTW6-LCR has a In-wall type cabinet.

What's in the Box of MartinLogan Motion XT CI XTW6-LCR?

Here are the items that are included inside the box of Motion XT CI XTW6-LCR:
  • In-wall LCR loudspeaker
  • Grille
  • T20 torx-bit
  • User-feets Manual
  • Cutout Template
  • Recommended Accessories

    Here is a list of accessories that we think you may need for the MartinLogan Motion XT CI XTW6-LCR.

    • Speaker Cable and Connectors
      • Speaker Cables with Banana Plugs: If you know the lenght of the cable you need, this is the easier option to connect your speakers with your amp.
      • Speaker Cables without Connectors: If you are not sure about the lenght or need longer than standard cables with plugs, choose this option.
      • Banana Connectors and Plugs: If you chose the cables without connectors option or already have some cable around, pick the banana plugs separately.
    • Vibration Isolators: IsoAcoustics isolators more affordable options too.
    • Acoustic Panels and Treatments: Your room is as important as your stereo equipment so acoustic treatments goes a long way in improving the overall performance.

    Warranty

    5 Years of parts warranty and 5 Years of labor warranty is generally provided by the manufacturer.

    MartinLogan Motion XT CI XTW6-LCR Alternatives in Passive In-wall Speakers
    Model Type Sensitivity Impedance Frequency
    Focal 300 IW6 LCR
    Compare
    3-way 92 dB 8 ohms 40-28kHz
    Sonos In-wall Speakers
    Compare
    2-way 89 dB 8 ohms 44-20kHz
    B&W CWM7.3 S2
    Compare
    3-way 90 dB 8 ohms 48-28kHz
    JBL Studio 6 Theater
    Compare
    2-way 96 dB 6 ohms 65-20kHz
    MartinLogan Motion XT CI XTW5-LCR
    Compare
    2-way 92 dB 8 ohms 61-25kHz
    MartinLogan Motion CI MW6
    Compare
    2-way 90 dB 5 ohms 62-25kHz
    Focal 300 IW 6
    Compare
    2-way 90 dB 8 ohms 55-28kHz
    B&W CWM7.4 S2
    Compare
    3-way 86 dB 8 ohms 45-28kHz
    Frequently Asked Questions about MartinLogan Motion XT CI XTW6-LCR
    What is the External Dimensions of MartinLogan Motion XT CI XTW6-LCR
    What is the Speaker Sensitivity of MartinLogan Motion XT CI XTW6-LCR
    is the MartinLogan Motion XT CI XTW6-LCR an easy to drive speaker?

    MartinLogan Motion XT CI XTW6-LCR Detailed Specifications

    General
    BrandMartinLogan
    Full Model NameMartinLogan Motion XT CI XTW6-LCR
    Speaker Type3-way In-wall
    Power Range50-150 watts
    Sensitivity93 dB
    Impedance8 ohms
    Frequency Response44-25kHz
    DRIVERS
    Woofer Size6.5-inch
    Woofer CompositionKevlar
    Woofer SurroundRubber
    Tweeter Size1.27 x 2.4-inch
    Tweeter TypeFolded Motion Ribbon
    Aimable TweeterYes
    Midrange Size6.5-inch

    CONNECTIONS
    Connector TypeSpring post
    Biamp InputsNo
    PHYSICAL SPECS
    Height686.0mm ( 27.0000-inch)
    Width169.0mm ( 6.6250-inch)
    Depth91.0mm ( 3.5625-inch)
    Height686.0mm ( 27.0000-inch)
    Weightkg ( lbs)
    EnclosureIn-wall
    Moisture ResistanceNo
    OTHER
    Handheld RemoteNo
    Parts Warranty5 Years
    Labor Warranty5 Years
