Sonos In-wall Speakers vs MartinLogan Motion XT CI XTW6-LCR Comparison

x
Speaker to replace
Change

Sonos In-wall Speakers

Passive In-wall | 44-20kHz

Sonos In-wall Speakers
CHECK PRICE
Change

MartinLogan Motion XT CI XTW6-LCR

Passive In-wall | 44-25kHz

MartinLogan Motion XT CI XTW6-LCR
CHECK PRICE
Sonos In-wall Speakers Sonos In-wall Speake...
See at AMAZON
MartinLogan Motion XT CI XTW6-LCR MartinLogan Motion X...
See at AMAZON
Sonos In-wall Speake...
See at AMAZON
MartinLogan Motion X...
See at AMAZON
Sonos In-wall Speakers vs MartinLogan Motion XT CI XTW6-LCR Speaker Comparison

In this review, we will be comparing In-wall Speakers and Motion XT CI XTW6-LCR, two Passive In-wall speakers from Sonos and MartinLogan.

Let's have a brief look at the main features of Sonos In-wall Speakers and MartinLogan Motion XT CI XTW6-LCR first before getting into our more detailed comparison.

Sonos In-wall Speakers Key Specs

  • 2-way Design
  • 1" Soft-Dome Tweeter
  • 6.5" Polypropylene Woofer
  • 44-20kHz Frequency Response
  • 89 dB Sensitivity
  • Impedance: 8ohms
  • Power Range:up to 130watts
  • Dimensions (H x W x D): 274.0" x 6.9375" x 3.6250"( 274.0 x 177.0 x 93.0mm )

MartinLogan Motion XT CI XTW6-LCR Key Specs

  • 3-way Design
  • 1.27 x 2.4" Folded Motion Ribbon Tweeter
  • 6.5" Midrange
  • 2 x 6.5" Kevlar Woofer
  • 6.5" Midrange
  • 44-25kHz Frequency Response
  • 93 dB Sensitivity
  • Impedance: 8ohms
  • Power Range:50-150watts
  • Dimensions (H x W x D): 686.0" x 6.6250" x 3.5625"( 686.0 x 169.0 x 91.0mm )

What size room are the Sonos In-wall Speakers and MartinLogan Motion XT CI XTW6-LCR speakers good for?

The size of the room in which you are planning to use these loudspeakers is an important decision factor. Here we have compared their suitability to various sizes of environments considering their size and max power parameters:

Listening Environment* Sonos In-wall Speakers MartinLogan Motion XT CI XTW6-LCR
Near-field Poor Poor
Small Room Average Average
Mid-size Room Good Good
Large Room Average Average
Very Large Room Poor Poor

(* Approximate Room sizes: Small < 100sq. ft / 9 m2, Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: > 400 sq. ft / 36 m2. Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual listening experience changes depending on floor height, room shape, surface materials, listening position, speaker locations, etc.)

In the following sections, we will get into more detail in order to better understand how the Sonos In-wall Speakers and MartinLogan Motion XT CI XTW6-LCR compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.


**This post contains affiliate links, and I will be compensated if you make a purchase after clicking through my links. As an Amazon Associate I earn from qualifying purchases.


Drivers

One of the fundamental differences between these two speakers is that In-wall Speakers is a 2-way design whereas the Motion XT CI XTW6-LCR is a 3-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.

Driver Sonos In-wall Speakers MartinLogan Motion XT CI XTW6-LCR
Driver Setup 2-way 3-way
Tweeter 1-inch 1.27 x 2.4-inch
Midrange - 1 x 6.5-inch
Woofer 1 x 6.5-inch 2 x 6.5-inch

In-wall Speakers features a 1" Soft-Dome Tweeter and 1 x 6.5" Polypropylene Woofer . On the other hand, the Motion XT CI XTW6-LCR features a 1.27 x 2.4" Folded Motion Ribbon Tweeter , a 6.5" Midrange and 2 x 6.5" Kevlar Woofer .

Frequency Response

In-wall Speakers has a frequency range of 44-20kHz whereas Motion XT CI XTW6-LCR has a frequency range of 44-25kHz.

Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the In-wall class in our database.

Low Frequency

In-wall Speakers

In-wall Speakers
Motion XT CI XTW6-LCR
Min
Average
Max
High Frequency

In-wall Speakers

Sonos In-wall Speakers
MartinLogan Motion XT CI XTW6-LCR
Min
Average
Max

None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.

Impedance and Sensitivity

In-wall Speakers and Motion XT CI XTW6-LCR have the same Impedance of 8 ohms but where they differ is the sensitivity levels. In-wall Speakers sensitivity is rated at 89 dB and the Motion XT CI XTW6-LCR's is at 93 dB. This 4 dB difference makes the MartinLogan Motion XT CI XTW6-LCR a more sensitive speaker compared to Sonos In-wall Speakers, hence will play louder with the same amount of watts.

Sensitivity

In-wall Speakers

In-wall Speakers
Motion XT CI XTW6-LCR
Min
Average
Max

Power Range

Power range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using an amplifier within this range ensures the nominal performance , inputting a power that is higher than the max wattage can result in a damaged speaker.

In-wall Speakers can handle a max power of 150 watts RMS from the amp the whereas In-wall Speakers has a max power handling value of 130 watts RMS , 20 watts less than the Motion XT CI XTW6-LCR.

Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters such as Impedance, sensitivity and system efficiencies.

Input Type and Bi-Amping / Bi-Wiring

In-wall Speakers features Spring post type posts and Motion XT CI XTW6-LCR has a Spring post type posts. None of these speakers feature bi-amping/bi-wiring.

Physical Specs

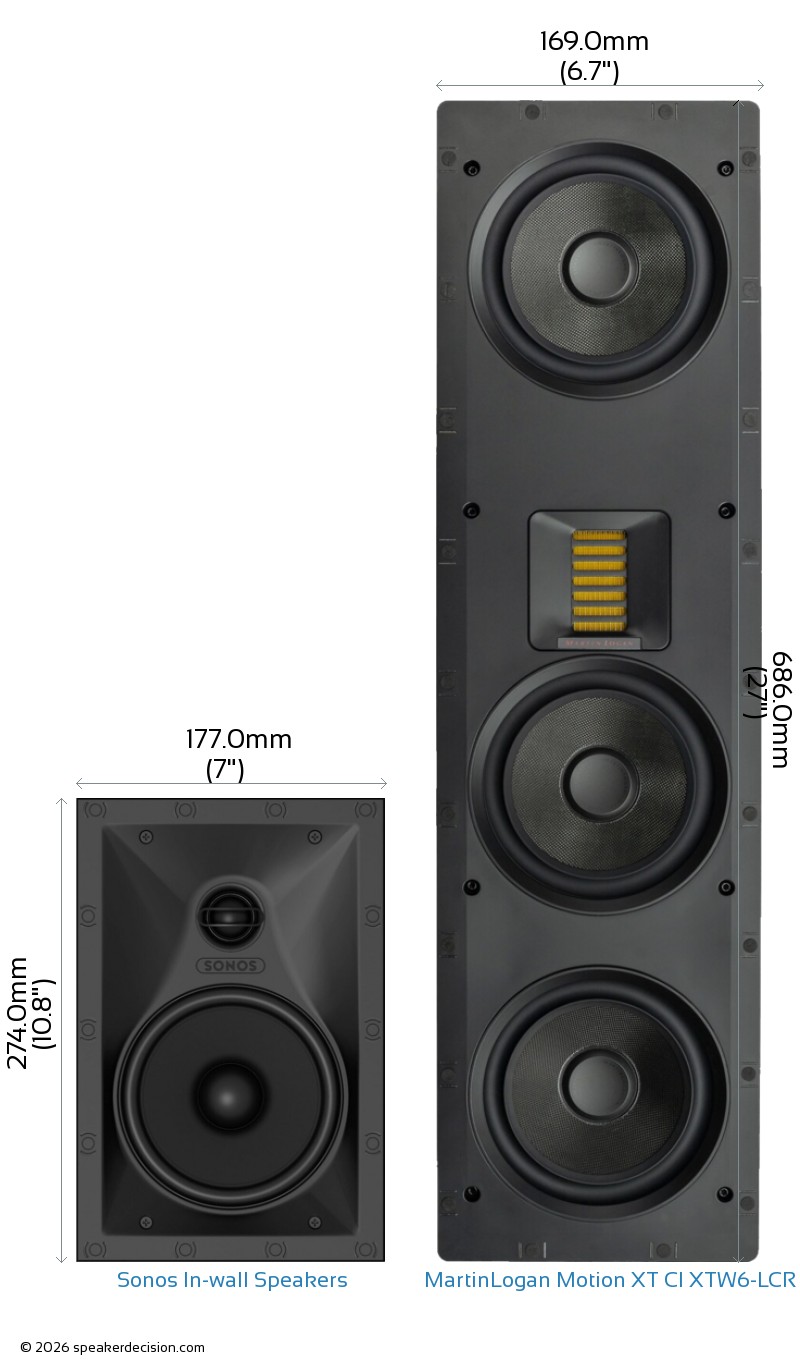

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Sonos In-wall Speakers's and MartinLogan Motion XT CI XTW6-LCR's external dimensions. Sonos In-wall Speakers has external dimensions of 274.0 x 177.0 x 93.0mm ( 10.7500-inch x 6.9375-inch x 3.6250-inch) whereas MartinLogan Motion XT CI XTW6-LCR has external dimensions of 686.0 x 169.0 x 91.0mm ( 27.0000-inch x 6.6250-inch x 3.5625-inch) .

MartinLogan Motion XT CI XTW6-LCR is 8mm narrower and 2mm less deeper than Sonos In-wall Speakers but it is also 412mm taller.

What's in the Box of Sonos In-wall Speakers?

Here are the items that are included inside the box of In-wall Speakers:
  • 2 In-wall loudspeakers
  • 2 Grilles
  • 2 Cutout Templates
  • What's in the Box of MartinLogan Motion XT CI XTW6-LCR?

    Here are the items that come with the Motion XT CI XTW6-LCR:
  • In-wall LCR loudspeaker
  • Grille
  • T20 torx-bit
  • User-feets Manual
  • Cutout Template

  • Reasons to choose Sonos In-wall Speakers over MartinLogan Motion XT CI XTW6-LCR
    Height 274mm vs 686mm Easier to fit in smaller spaces
    Price per pair* 659USD vs 3200USD costs less (*prices may change depending on the seller, location and time)

    Reasons to choose MartinLogan Motion XT CI XTW6-LCR over Sonos In-wall Speakers

    Max Input Power 150 watts vs 130 watts Handle more power from your amplifier
    Driver Setup 3-way vs 2-way Have a dedicated mid-range driver
    Sensitivity 93 dB vs 89 dB Play louder with same amount of amplification power
    Number of Woofers 2 vs 1 More woofers
    High Frequency Response 25k Hz vs 20k Hz Generates higher frequency
    Base Surface Area 153cm2 vs 164cm2 Takes less floor space
    Sonos In-wall Speakers vs MartinLogan Motion XT CI XTW6-LCR Specs Table
    Detailed comparison of specifications
    General Sonos In-wall Speakers MartinLogan Motion XT CI XTW6-LCR
    Brand Sonos MartinLogan
    Speaker Type Passive In-wall Speaker Passive In-wall Speaker
    Power Range up to 130 watts 50-150 watts
    Sensitivity 89 dB 93 dB
    Impedance 8 ohms 8 ohms
    Frequency Response 44-20kHz 44-25kHz
    Drivers
    Woofer Quantity 1 2
    Woofer Size 6.5" 6.5"
    Woofer Composition Polypropylene Kevlar
    Woofer Surround Material Rubber Rubber
    Tweeter Size 1" 1.27 x 2.4"
    Tweeter Type Soft-Dome Folded Motion Ribbon
    Aimable Tweeter Yes Yes
    Midrange Driver N/A" 6.5"
    Physical Specs
    Height 274.0mm (10.8") 686.0mm (27")
    Width 177.0mm (7") 169.0mm (6.7")
    Depth 93.0mm (3.7") 91.0mm (3.6")
    Enclosure In-wall In-wall
    Moisture Resistancy No No
    Connections
    Biamp Inputs No No
    Other
    Parts Warranty 2 Years 5 Years
    Labor Warranty 2 Years 5 Years
