MartinLogan Motion XT CI XTW5-LCR vs MartinLogan Motion XT CI XTW6-LCR Comparison

x
Speaker to replace
Change

MartinLogan Motion XT CI XTW5-LCR

Passive In-wall | 61-25kHz

MartinLogan Motion XT CI XTW5-LCR
CHECK PRICE
Change

MartinLogan Motion XT CI XTW6-LCR

Passive In-wall | 44-25kHz

MartinLogan Motion XT CI XTW6-LCR
CHECK PRICE
MartinLogan Motion XT CI XTW5-LCR MartinLogan Motion X...
See at AMAZON
MartinLogan Motion XT CI XTW6-LCR MartinLogan Motion X...
See at AMAZON
MartinLogan Motion X...
See at AMAZON
MartinLogan Motion X...
See at AMAZON
MartinLogan Motion XT CI XTW5-LCR vs MartinLogan Motion XT CI XTW6-LCR Speaker Comparison

In this review, we will be comparing Motion XT CI XTW5-LCR and Motion XT CI XTW6-LCR, two Passive In-wall speakers by MartinLogan

Let's have a brief look at the main features of MartinLogan Motion XT CI XTW5-LCR and MartinLogan Motion XT CI XTW6-LCR first before getting into our more detailed comparison.

MartinLogan Motion XT CI XTW5-LCR Key Specs

  • 2-way Design
  • 1.27 x 2.4" Folded Motion Ribbon Tweeter
  • 2 x 5.25" Kevlar Woofer
  • 61-25kHz Frequency Response
  • 92 dB Sensitivity
  • Impedance: 8ohms
  • Power Range:50-125watts
  • Dimensions (H x W x D): 166.0" x 14.5000" x 3.3125"( 166.0 x 369.0 x 85.0mm )

MartinLogan Motion XT CI XTW6-LCR Key Specs

  • 3-way Design
  • 1.27 x 2.4" Folded Motion Ribbon Tweeter
  • 6.5" Midrange
  • 2 x 6.5" Kevlar Woofer
  • 6.5" Midrange
  • 44-25kHz Frequency Response
  • 93 dB Sensitivity
  • Impedance: 8ohms
  • Power Range:50-150watts
  • Dimensions (H x W x D): 686.0" x 6.6250" x 3.5625"( 686.0 x 169.0 x 91.0mm )

What size room are the MartinLogan Motion XT CI XTW5-LCR and MartinLogan Motion XT CI XTW6-LCR speakers good for?

The size of the room in which you are planning to use these loudspeakers is an important decision factor. Here we have compared their suitability to various sizes of environments considering their size and max power parameters:

Listening Environment* MartinLogan Motion XT CI XTW5-LCR MartinLogan Motion XT CI XTW6-LCR
Near-field Poor Poor
Small Room Average Average
Mid-size Room Good Good
Large Room Average Average
Very Large Room Poor Poor

(* Approximate Room sizes: Small < 100sq. ft / 9 m2, Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: > 400 sq. ft / 36 m2. Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual listening experience changes depending on floor height, room shape, surface materials, listening position, speaker locations, etc.)

In the following sections, we will get into more detail in order to better understand how the MartinLogan Motion XT CI XTW5-LCR and MartinLogan Motion XT CI XTW6-LCR compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.


**This post contains affiliate links, and I will be compensated if you make a purchase after clicking through my links. As an Amazon Associate I earn from qualifying purchases.


Drivers

One of the fundamental differences between these two speakers is that Motion XT CI XTW5-LCR is a 2-way design whereas the Motion XT CI XTW6-LCR is a 3-way speaker. 3-way designs utilize a midrange driver in addition to the tweeter and woofer on 2-way designs. Designing a crossover for a 3-way speaker is a complicated process and generally increases the overall cost of the speaker.

Driver MartinLogan Motion XT CI XTW5-LCR MartinLogan Motion XT CI XTW6-LCR
Driver Setup 2-way 3-way
Tweeter 1.27 x 2.4-inch 1.27 x 2.4-inch
Midrange - 1 x 6.5-inch
Woofer 2 x 5.25-inch 2 x 6.5-inch

Motion XT CI XTW5-LCR features a 1.27 x 2.4" Folded Motion Ribbon Tweeter and 2 x 5.25" Kevlar Woofer . On the other hand, the Motion XT CI XTW6-LCR features a 1.27 x 2.4" Folded Motion Ribbon Tweeter , a 6.5" Midrange and 2 x 6.5" Kevlar Woofer .

Frequency Response

Motion XT CI XTW5-LCR has a frequency range of 61-25kHz whereas Motion XT CI XTW6-LCR has a frequency range of 44-25kHz. With a minimum frequency of 44Hz, the Motion XT CI XTW6-LCR can go significantly deeper on the low side and provide stronger bass compared to the Motion XT CI XTW5-LCR's min frequency of 61Hz.

Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the In-wall class in our database.

Low Frequency

In-wall Speakers

Motion XT CI XTW5-LCR
Motion XT CI XTW6-LCR
Min
Average
Max
High Frequency

In-wall Speakers

MartinLogan Motion XT CI XTW5-LCR
MartinLogan Motion XT CI XTW6-LCR
Min
Average
Max

None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.

Impedance and Sensitivity

Motion XT CI XTW5-LCR and Motion XT CI XTW6-LCR have the same Impedance of 8 ohms but where they differ is the sensitivity levels. Motion XT CI XTW5-LCR sensitivity is rated at 92 dB and the Motion XT CI XTW6-LCR's is at 93 dB. This 1 dB difference makes the MartinLogan Motion XT CI XTW6-LCR a more sensitive speaker compared to MartinLogan Motion XT CI XTW5-LCR, hence will play louder with the same amount of watts.

Sensitivity

In-wall Speakers

Motion XT CI XTW5-LCR
Motion XT CI XTW6-LCR
Min
Average
Max

Power Range

Power range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using an amplifier within this range ensures the nominal performance , inputting a power that is higher than the max wattage can result in a damaged speaker.

Motion XT CI XTW5-LCR can handle a max power of 150 watts RMS from the amp the whereas Motion XT CI XTW5-LCR has a max power handling value of 125 watts RMS , 25 watts less than the Motion XT CI XTW6-LCR.

Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters such as Impedance, sensitivity and system efficiencies.

Input Type and Bi-Amping / Bi-Wiring

Motion XT CI XTW5-LCR features Spring post type posts and Motion XT CI XTW6-LCR has a Spring post type posts. None of these speakers feature bi-amping/bi-wiring.

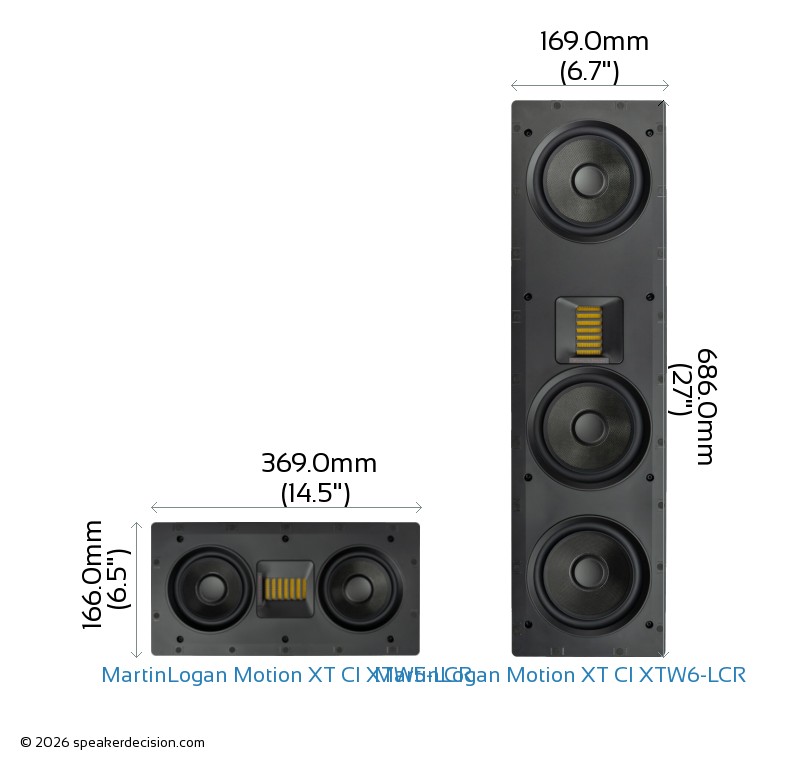

Physical Specs

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare MartinLogan Motion XT CI XTW5-LCR's and MartinLogan Motion XT CI XTW6-LCR's external dimensions. MartinLogan Motion XT CI XTW5-LCR has external dimensions of 166.0 x 369.0 x 85.0mm ( 6.5000-inch x 14.5000-inch x 3.3125-inch) whereas MartinLogan Motion XT CI XTW6-LCR has external dimensions of 686.0 x 169.0 x 91.0mm ( 27.0000-inch x 6.6250-inch x 3.5625-inch) .

MartinLogan Motion XT CI XTW5-LCR is 520mm shorter and 6mm less deeper than MartinLogan Motion XT CI XTW6-LCR but it is also 200mm wider.

What's in the Box of MartinLogan Motion XT CI XTW5-LCR?

Here are the items that are included inside the box of Motion XT CI XTW5-LCR:
  • In-wall LCR loudspeaker
  • Grille
  • T20 torx-bit
  • User-feets Manual
  • Cutout Template
  • What's in the Box of MartinLogan Motion XT CI XTW6-LCR?

    Here are the items that come with the Motion XT CI XTW6-LCR:
  • In-wall LCR loudspeaker
  • Grille
  • T20 torx-bit
  • User-feets Manual
  • Cutout Template

  • Reasons to choose MartinLogan Motion XT CI XTW5-LCR over MartinLogan Motion XT CI XTW6-LCR
    Height 166mm vs 686mm Easier to fit in smaller spaces
    Price per pair* 2200USD vs 3200USD costs less (*prices may change depending on the seller, location and time)

    Reasons to choose MartinLogan Motion XT CI XTW6-LCR over MartinLogan Motion XT CI XTW5-LCR

    Max Input Power 150 watts vs 125 watts Handle more power from your amplifier
    Driver Setup 3-way vs 2-way Have a dedicated mid-range driver
    Sensitivity 93 dB vs 92 dB Play louder with same amount of amplification power
    Woofer Size 6.5 inches vs 5.25 inches Larger woofer
    Low Frequency Response 44 Hz vs 61 Hz Generates deeper bass
    Base Surface Area 153cm2 vs 313cm2 Takes less floor space
    MartinLogan Motion XT CI XTW5-LCR vs MartinLogan Motion XT CI XTW6-LCR Specs Table
    Detailed comparison of specifications
    General MartinLogan Motion XT CI XTW5-LCR MartinLogan Motion XT CI XTW6-LCR
    Brand MartinLogan MartinLogan
    Speaker Type Passive In-wall Speaker Passive In-wall Speaker
    Power Range 50-125 watts 50-150 watts
    Sensitivity 92 dB 93 dB
    Impedance 8 ohms 8 ohms
    Frequency Response 61-25kHz 44-25kHz
    Drivers
    Woofer Quantity 2 2
    Woofer Size 5.25" 6.5"
    Woofer Composition Kevlar Kevlar
    Woofer Surround Material Rubber Rubber
    Tweeter Size 1.27 x 2.4" 1.27 x 2.4"
    Tweeter Type Folded Motion Ribbon Folded Motion Ribbon
    Aimable Tweeter Yes Yes
    Midrange Driver N/A" 6.5"
    Physical Specs
    Height 166.0mm (6.5") 686.0mm (27")
    Width 369.0mm (14.5") 169.0mm (6.7")
    Depth 85.0mm (3.3") 91.0mm (3.6")
    Enclosure In-wall In-wall
    Moisture Resistancy No No
    Connections
    Biamp Inputs No No
    Other
    Parts Warranty 5 Years 5 Years
    Labor Warranty 5 Years 5 Years
