In this review, we will be comparing CP-WT240LCR and Studio 6 88LCR, two Passive In-wall speakers from Monitor Audio and JBL. Let's have a brief look at the main features
of Monitor Audio CP-WT240LCR and JBL Studio 6 88LCR first before getting into our more
detailed comparison.
Monitor Audio CP-WT240LCR Key Specs
- 2-way Design
- 1" Hard-Dome Tweeter
- 2 x 4" C-CAM Woofer
- 60-25kHz Frequency Response
- 88 dB Sensitivity
- Impedance: 6ohms
- Power Range:20-100watts
- Dimensions (H x W x D): 299.0" x 7.1875" x 3.8125"( 299.0 x 183.0 x 97.0mm )
JBL Studio 6 88LCR Key Specs
- 2-way Design
- 1" Horn-Loaded Tweeter
- 2 x 8" PolyPlas Woofer
- 43-20kHz Frequency Response
- 96 dB Sensitivity
- Impedance: 6ohms
- Power Range:10-175watts
- Dimensions (H x W x D): 520.0" x 8.7500" x 3.7500"( 520.0 x 223.0 x 96.0mm )
What size room are the Monitor Audio CP-WT240LCR and JBL Studio 6 88LCR speakers good for?
The size of the room in which you are planning to use these loudspeakers is an important decision factor. Here we have compared their suitability to various sizes of environments considering their size and max power parameters:
| Listening Environment* |
Monitor Audio CP-WT240LCR |
JBL Studio 6 88LCR |
| Near-field |
Average |
Poor |
| Small Room |
Good |
Average |
| Mid-size Room |
Average |
Good |
| Large Room |
Poor |
Average |
| Very Large Room |
Bad |
Poor |
(* Approximate Room sizes: Small < 100sq. ft / 9 m2, Mid-size: 100-220 sq. ft / 9-20 m2, Large 220-400 sq. ft / 20-36 m2, Very Large: > 400 sq. ft / 36 m2.
Average Floor Height: 9" / 2.7m. Typical room sizes differ from country to country, and the actual listening experience changes depending on floor height, room shape, surface materials, listening position, speaker locations, etc.)
In the following sections, we will get into more detail in order to better understand how the Monitor Audio CP-WT240LCR and JBL Studio 6 88LCR compare and hopefully end up with enough arguments to decide which one of these loudspeakers is the better choice for you.
**This post contains affiliate links, and I will be compensated if you make a purchase after clicking
through my links. As an Amazon Associate I earn from qualifying purchases.
Drivers
Both CP-WT240LCR and Studio 6 88LCR are 2-way speakers.
| Driver |
Monitor Audio CP-WT240LCR |
JBL Studio 6 88LCR |
|
Driver Setup
|
2-way
|
2-way
|
|
Tweeter
|
1-inch
|
1-inch
|
|
Midrange
|
- |
- |
|
Woofer
|
2 x 4-inch
|
2 x 8-inch
|
CP-WT240LCR features a 1" Hard-Dome Tweeter and 2 x 4" C-CAM Woofer . On the other hand, the Studio 6 88LCR features a 1" Horn-Loaded Tweeter and 2 x 8" PolyPlas Woofer .
Frequency Response
CP-WT240LCR has a frequency range of 60-25kHz whereas Studio 6 88LCR has a frequency range of 43-20kHz. With a minimum frequency of 43Hz, the Studio 6 88LCR can go significantly deeper on the low side and provide stronger bass compared to the CP-WT240LCR's min frequency of 60Hz.
Below graphs depict how these two speakers compare with the max, min and average values of the Min and Max Frequencies of other speakers in the In-wall class in our database.
Low Frequency
In-wall Speakers
High Frequency
In-wall Speakers
Monitor Audio CP-WT240LCR
None of these speakers achieves full range experience which is commonly agreed as 20Hz-20kHz. In order to achieve lower lows / deeper bass, we recommend you pair these with a subwoofer. Visit our Powered Subwoofers section to find out more about the available options.
Impedance and Sensitivity
CP-WT240LCR and Studio 6 88LCR have the same Impedance of 6 ohms but where they differ is the sensitivity levels. CP-WT240LCR sensitivity is rated at 88 dB and the Studio 6 88LCR's is at 96 dB. This 8 dB difference makes the JBL Studio 6 88LCR a more sensitive speaker compared to Monitor Audio CP-WT240LCR, hence will play louder with the same amount of watts.
Sensitivity
In-wall Speakers
Power Range
Power
range is the range of input power in watts RMS that a loudspeaker is designed to handle. While using an amplifier within this range ensures the nominal performance , inputting a power that is higher than the max wattage can result in a damaged speaker.
CP-WT240LCR can handle a max power of 175 watts RMS from the amp the whereas CP-WT240LCR has a max power handling value of 100 watts RMS , 75 watts less than the Studio 6 88LCR.
Keep in mind that a higher max power handling value doesn't necessarily make that a louder speaker
compared to a lower max handling speaker. Loudness or the sound level is also impacted by parameters
such as Impedance, sensitivity and system efficiencies.
Input Type and Bi-Amping / Bi-Wiring
CP-WT240LCR features Spring posts type posts and Studio 6 88LCR has a Spring posts type posts. None of these speakers feature bi-amping/bi-wiring.
Physical Specs

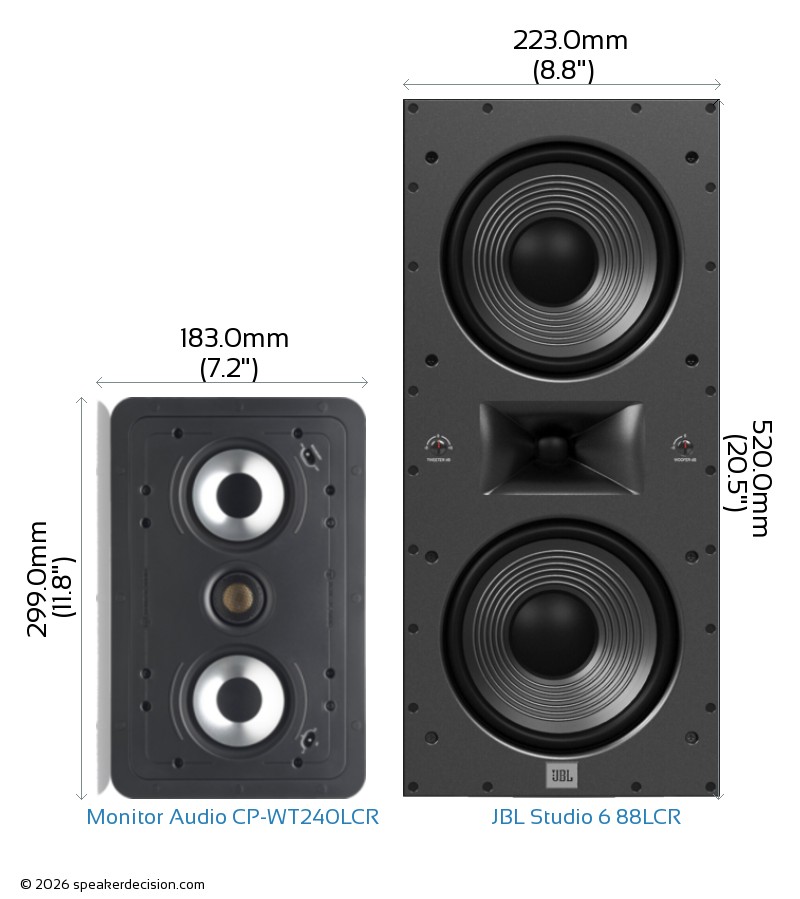

Size of a speaker can sometimes become an important decision factor due to space constraints or in some cases purely for esthetic reasons. In this section, we are going to compare Monitor Audio CP-WT240LCR's and JBL Studio 6 88LCR's external dimensions. Monitor Audio CP-WT240LCR has external dimensions of 299.0 x 183.0 x 97.0mm ( 11.7500-inch x 7.1875-inch x 3.8125-inch) whereas JBL Studio 6 88LCR has external dimensions of 520.0 x 223.0 x 96.0mm ( 20.4375-inch x 8.7500-inch x 3.7500-inch) .
Monitor Audio CP-WT240LCR is 40mm narrower and 221mm shorter than JBL Studio 6 88LCR but it is also 1mm deeper.
What's in the Box of Monitor Audio CP-WT240LCR?
Here are the items that are included inside the box of CP-WT240LCR:
In-wall LCR loudspeakerMagnetic grilleCosmetic scrimInstallation GuideImportant Safety InstructionsLimited Warranty/Registration CardMountingTemplate
What's in the Box of JBL Studio 6 88LCR?
Here are the items that come with the Studio 6 88LCR:
In-wall loudspeakerGrilleCut-Out TemplateQuick Start Guide
