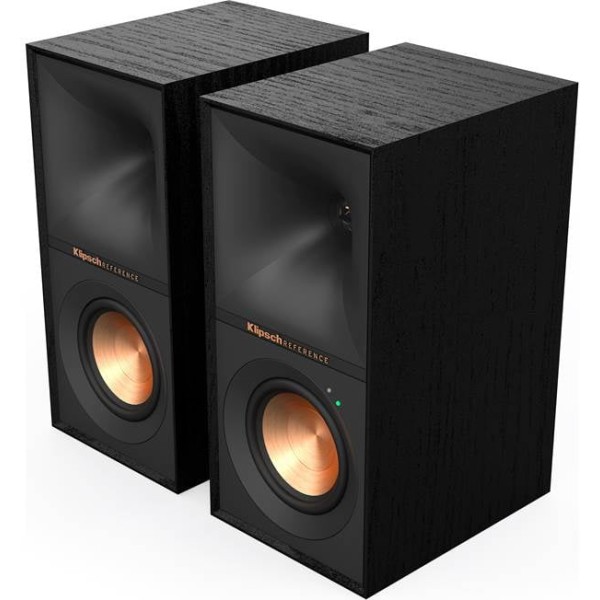

Klipsch R 40PM is a 2-way Powered Bookshelf speaker by Klipsch. It was released in 2022. R 40PM's built-in amplifier provides 70-watt RMS( 240-watt Peak). The built-in power amplifier saves space & eliminates the need to connect Klipsch R 40PM to a stereo receiver or external power amp. It features a 1.0" Tractrix Horn Tweeter and 1 x 4.0" Woofer. The speaker has a frequency range of 60-20k Hz. Klipsch R 40PM has an MSRP of 450$ per pair but can often be found around 0$ per pair.
Frequency Response of the Klipsch R 40PM Speaker
Klipsch R 40PM has a Frequency response range of 60-20k Hz. With a minimum frequency of 60 Hz, R 40PM delivers moderate bass depth so depending on your use case, you might want to consider adding a subwoofer to your system.
Here we have a comparison of how R 40PM's Low frequency value compares with the average, max and min Low frequency values in its class.
Low Frequency
Bookshelf Speakers
Thinking about a subwoofer for the Klipsch R 40PM?
Crossover frequency of the Klipsch R 40PM?
The crossover frequency of the R 40PM is set to 1730 Hz. This is the threshold frequency where the higher frequency signals over this level are sent to the tweeter and the lower-frequency signals are sent to the woofer by the crossover component.
Inputs and Outputs
- USB Port:
- Subwoofer Output
- Digital Input:
- HDMI Input:
- Headphone Jack:
- Ethernet Port
Klipsch R 40PM External Dimensions and Weight
Klipsch R 40PM has external dimensions of (Height x Width x Depth) (298.5 x 146.1 x 308.0mm ).
Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base area of Klipsch R 40PM is approximately 450.0cm2 / 69.8inch2.
Millimetres are hard to picture, so here is the Klipsch R 40PM drawn to scale next to the Fluance Ai61, the speaker our readers compare it with most often.
Size, drawn to scale
Both speakers and both views share one scale, so everything here is directly comparable. Hover a box for its dimensions.
One scale for both, standing on the same surface and pushed back to the same wall, so the deeper one visibly sticks out further.
Near-identical footprints. Klipsch R 40PM is 74mm deeper, so it stands that much further out from the wall. Fluance Ai61 is 35mm taller.
Full comparison: Klipsch R 40PM vs Fluance Ai61 ›
Find speakers that fit your shelf or alcove → · Work out where they should sit in the room →
WeightThe Klipsch R 40PM weighs 8.30kg / 18.3lbs per piece. Here is a comparison of how R 40PM's weight compares with the average, max and min weights in its class.
Weight
All Bookshelf Speakers
Weight
Bookshelf Speakers under $500
Wall Mounting
R 40PM doesn't sport any built-in mounting bracket, so you need an external structure to mount it on walls.
Recommended Accessories
Here is a list of accessories that we think you may need for the Klipsch R 40PM.
- Vibration Isolators: IsoAcoustics isolators are our favorite isolators but you may find more affordable options too.
- Acoustic Panels and Treatments: Your room is as important as your stereo equipment so acoustic treatments goes a long way in improving the overall performance.
- Speaker Stands: Stands bring your bookshelf speakers to ideal height (rule of thumb is to have the tweeter level with your ear in your listening position), helps stability and acoustical isolation.
Warranty
1 Year of parts warranty and 1 Year of labor warranty is generally provided by the manufacturer.
