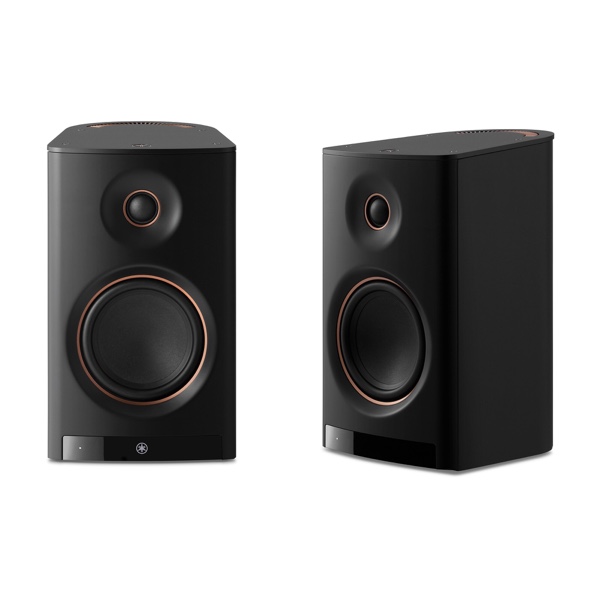

Yamaha NX-70A is a 2-way Powered Bass Reflex Bookshelf speaker by Yamaha. It was released in July 2026. NX-70A's built-in amplifier provides 160-watt RMS. The built-in power amplifier saves space & eliminates the need to connect Yamaha NX-70A to a stereo receiver or external power amp. It features a 1.25" Dome Tweeter and 1 x 5.25" Harmonious Diaphragm (ZYLON and spruce) Woofer.
Yamaha rates each speaker at 100 watts to the woofer and 60 watts to the tweeter and does not publish an amplifier class, a DAC sample rate or a bit depth, so those columns are left empty rather than taken from a review. The wireless link between the two speakers costs bandwidth: Yamaha quotes 50 Hz to 35 kHz over the supplied LAN cable and 50 Hz to 21 kHz wirelessly, both at -10 dB. Standby power draw is 2.0 watts. Yamaha labels its dimensions "W x H x D" and prints 189 x 234 x 333 mm; the front-on product photograph and What Hi-Fi both make 333 mm the height, and that is how the row is stored. usa.yamaha.com does not list the model, so the $3,000 is What Hi-Fi's US test price rather than a Yamaha USA figure; the maker price is GBP 2,590, on sale from July 2026.
The speaker has a frequency range of 50-35k Hz. Yamaha NX-70A has an MSRP of 3000$ per pair.
Frequency Response of the Yamaha NX-70A Speaker
Yamaha NX-70A has a Frequency response range of 50-35k Hz. With a minimum frequency of 50 Hz, NX-70A delivers moderate bass depth so depending on your use case, you might want to consider adding a subwoofer to your system.
Here we have a comparison of how NX-70A's Low frequency value compares with the average, max and min Low frequency values in its class.
Low Frequency
Bookshelf Speakers
Thinking about a subwoofer for the Yamaha NX-70A?
Handheld Remote
Yamaha NX-70A comes with a handheld remote which is obviously very useful to control your powered speakers from a distance.
Bluetooth Connectivity
Yamaha NX-70A employs Built-in Bluetooth for wireless music streaming from your Bluetooth-enabled devices such as Apple iPod/iPhone/iPad, Android smartphone/tablet, Windows PC, Mac computers/laptops.
Yamaha NX-70A supports the following Bluetooth Codecs when used with supported devices:
Supported Streaming Services
Yamaha NX-70A supports the following Streaming Services:
- Spotify Connect
- TIDAL Connect
- Net Radio
- UPnP server
Supported Wireless Streaming System
Yamaha NX-70A supports the following wireless streaming methods:
- AirPlay 2
- Google Cast
- Roon Ready
- Spotify Connect
- TIDAL Connect
- Bluetooth
App-Based Control
Yamaha NX-70A can be controlled wirelessly via MusicCast application available on Apple iOS and Android.
Inputs and Outputs
- 3.5mm Minijack Input
- USB Port:
- mono-RCA Subwoofer Output
- Digital Input: 1
- HDMI Input: eARC
- Ethernet Port
Yamaha NX-70A External Dimensions and Weight
Yamaha NX-70A has external dimensions of (Height x Width x Depth) 13.125 x 7.5 x 9.25inch (333.0 x 189.0 x 234.0mm ).
Base Surface Area
Base surface area of a loudspeaker may become a determining factor when the space in your room or desk is limited.
The base area of Yamaha NX-70A is approximately 442.3cm2 / 68.6inch2.
Find speakers that fit your shelf or alcove → · Work out where they should sit in the room →
Weight The speaker with the built-in amplifier weighs 5.70kg / 12.5lbs whereas the other speaker weighs 5.40kg/ 11.9lbs. Here is a comparison of how NX-70A's weight compares with the average, max and min weights in its class.
Weight
All Bookshelf Speakers
Weight
Bookshelf Speakers under $3000
Cabinet type and Materials
Yamaha NX-70A has a
Bass Reflex type cabinet. Bass Reflex type loudspeakers (aka Ported, Vented or Reflex Port) have enclosures that uses a port, hole or vent cut into the cabinet. Ported designs are generally more efficient than the Sealed designs.
Port Position
Yamaha NX-70A is a rear-firing port speaker so you have to make sure you leave enough space between the back of the speaker and wall or bookshelf so that it has room to breathe.
Wall Mounting
NX-70A doesn't sport any built-in mounting bracket, so you need an external structure to mount it on walls.
Speaker Stands
Yamaha sells a dedicated speaker stand for the NX-70A with a model name
Yamaha SPS-70A. You can check the latest price and availability of these stands at
B&H PHOTO and
Amazon.
What's in the Box of Yamaha NX-70A?
Here are the items that are included inside the box of NX-70A:
- Remote control
- 2 AAA batteries
- 2 x 2m power cables
- 2m HDMI cable
- 3m LAN cable for the wired L/R connection
- 6m YPAO microphone
- Cardboard microphone stand
- Quick guide
- Safety guide
